977 HF tracking system

The Barrett 977 HF tracking system is an automatic vehicle locating and tracking package which utilises the Global Positioning System (GPS) and an HF network consisting of a central control station and mobiles.

The 977 computer based tracking system, located at the control station, automatically polls vehicles or vessels within the HF network, retrieving their position using a standard Selcall format based on CCIR493-2.

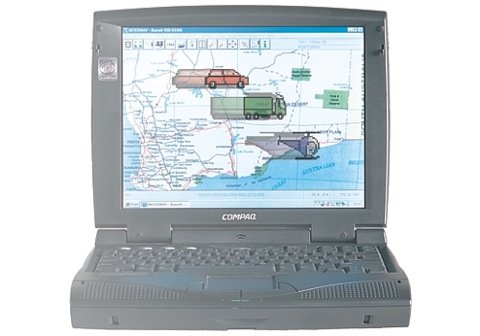

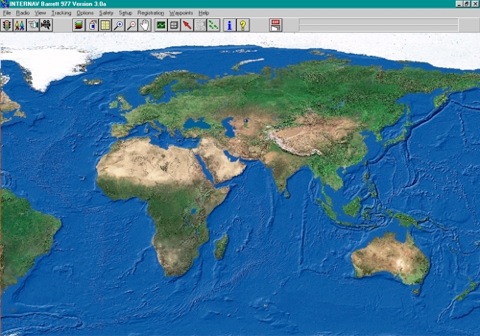

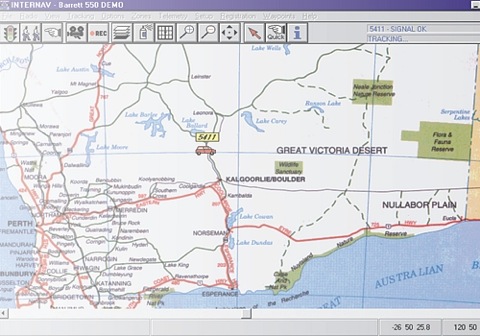

The position of the vehicle or vessel being tracked is then displayed on a computer based map.

977

The control station consists of a PC loaded with the Barrett 977 HF vehicle tracking software connected to a Barrett 2050 transceiver. Vehicles or vessels to be tracked are fitted with a Barrett 2050 transceiver equipped with an optional GPS receiver either installed externally or within the 2019 Automatic tuning mobile Antenna

Pasted Graphic

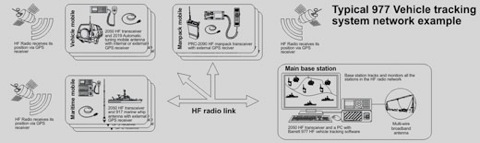

977 System components


Central Control Station
Barrett 2050 Local control HF transceiver with RS-232 option for transceiver Barrett 2022 Power supply unit
Suitable control station antenna - (i.e. Barrett 912 Broadband antenna)
Barrett 977 Tracking package (which includes cables from computer to receiver) Computer with a minimum hardware specification as follows:-
At least a Pentium 3 or Celeron processor and at least 256 Mb of RAM
Windows XP
1 serial communication port
1 parallel port
SVGA (1024 x 768 x 256) graphics card
20 Gb HDD
Mouse

Vehicle Equipment
Barrett 2050 Remote control HF transceiver
GPS software option for 2050
GPS receiver - either external using NMEA 0183 input on transceiver or
using Barrett BCA90048 GPS receiver module
Barrett 2019 Automatic tuning mobile antenna

Vessel Equipment
Barrett 2050 Local control HF transceiver
GPS software option for 2050
GPS receiver - either external using NMEA 0183 input on transceiver or
using Barrett BCA90048 GPS receiver module
Barrett 911 Automatic antenna tuner
Suitable whip or long wire antenna
Barrett 2022 Power supply unit (if 13.8 V DC not available)
