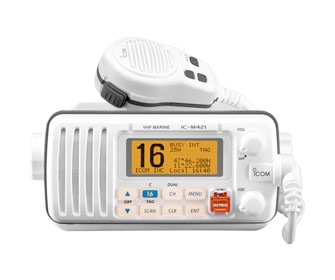

VHF MARINE TRANSCEIVER IC-M421
One Powerful, Compact Class D DSC Radio
Large LCD with Dot-matrix Characters
The IC-M421 has a full dot-matrix display with up to 21-character × 6-line capability that allows you to see a host of information such as channel number, channel name, position and DSC data etc. With the backlit display, large buttons and knobs, the ICM421 is easy to operate, even at night.
Built-in Class D DSC
The IC-M421 has a built-in Ch 70 (DSC channel) receiver, which monitors Ch 70 activity, even while you are receiving another channel. In an emergency situation, an automated distress call can be sent at the touch of a button.
Waterproof protection* (1m depth for 30 min.)
* Equivalent to IPX7. (Except cables.)
Other features
- Loud speaker audio
- Up to 70 programmable channels
(* Appropriate license will be required.) - Standard remote function microphone for channel and transmit power selection
- Simple and easy tag scanning system
- Dual watch and Tri-watch functions
- Low voltage indicator for low battery alert
- UK marina channels (UK version only)
- Black or white colour versions
HAND MICROPHONE
| HM-150B/SW | | | |
| OPC-1758 | | | |
| MB-69 |
| IC-M421 | |
| Frequency range | Tx | 156.000–161.450MHz | Rx | 156.000–163.425MHz |
Power supply requirements | 13.8V DC (10.8–15.6V) | |
Dimensions (W×H×D) | 164×78×139.5 mm | |
Weight (approx.) | 1150g | |
Current drain | Transmit (High) | 5.5A max. | Max. audio output | 1.5A max. |
Sensitivity (at 20dB SINAD; emf) | –2dBμ typ. | |
Intermodulation rejection | 68dB | |
Audio output power (With a 4Ω load) | 2W | |
RF output power | 25/1W | |
Waterproof protection | IPX7 (1m depth/30 min) | |
DSC | Built-in | |
COMMANDMICIII™ | - | |
Rear panel microphone | - | |
Voice scrambler | - | |
Tag scan | Available | |
Favorite channel | - | |
Rx speaker | - | |
Hailer | - | |
Foghorn | - | |
NMEA In/Out | NMEA In only | |
AquaQuake draining function | - | |
All stated specifications are subject to change without notice or obligation.
