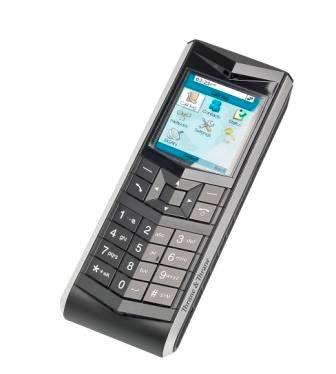

IP Handset
A multitude of operational benefits
Flexibility is the driving force behind the Thrane IP Handset. It is designed to offer a multitude of operational benefits at sea, on land and in the air. A choice of wired* or wireless models expands the possibilities for this sophisticated and incredibly user friendly multi-function IP handset. With Thrane & Thrane’s unrivalled experience in satcoms for sea, land and aerospace applications, you can be confident of both the quality of the equipment and the support behind it.
- Take control: The Thrane IP Handset is capable of transforming Thrane & Thrane Broadband terminals into highly flexible multi-station voice and data solutions. The physical design combines form and function with benefits such as:
- Easy to use & cell phone-like user interface
- Control and status of terminal hardware
- Configuration via web interface
- Excellent audio quality
- Excellent audio quality
- Secure Communications: Embedded crypto functionality makes secure peer-to-peer voice possible. The IP handset uses standard IP protocols, so secure calls can be made to any phone using these standards. Secure calls can also be made via any IP network. All crypto related functions are performed by a dedicated secure 32-bit RISC ARM SecurCore microcontroller embedded in the handset. Standard X.509 certificate has been added for stronger authentication for closed user groups. The users own certificates can be easily implemented.
| Specifications | ||||
| Dimensions (H/W/D) | 152 mm x 55 mm x 26.5 mm | Display | 2.2”, 240x320 pixel TFT Color | |
| Weight | 175 g | Power | Wired: Power over Ethernet cl. 2
Wireless: Battery Li-Ion 1900 mAH | |
| Ingress Protection | IP 54, dust & splash proof | Power consumption | Max. 7 Watt | |
| Interfaces | Wired: LAN 10/100 Mbps
Wireless: 802.11b/g | Physical Interfaces | Headset 2.5 mm jack
Mini-USB 5-pin | |
| Crypto software protocols | SIP (RFC3261)
ZRTP (ID ver. 3)
SRTP (RFC3711)
X.509 ((ITU-T) | Network Protocol
VoIP Protocol
Voice Codecs | Internet Protocol IP
SIP v2
G.711 & G.729 A/B | |
| Operating temperature | Wired: -25ºC to + 45ºC
Wireless: 0ºC to + 45ºC |
