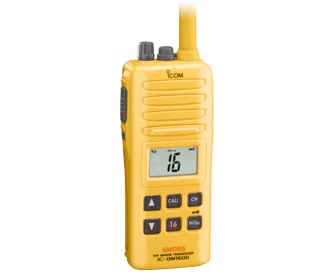

SURVIVAL CRAFT 2-WAY RADIO IC-GM1600

Pasted Graphic 1

GMDSS portable for survival craft.
Meets strict environmental requirements for GMDSS
The IC-GM1600 meets temperature, thermal shock, vibration and drop resistant (from 1 m height) requirements. After passing those environmental tests, the IC-GM1600 retains 1m depth waterproof construction as specified by IMO resolution A.809(19) and other related regulations.
Superior low temperature characteristic Lithium battery pack
For survival craft use, the optional BP-234 (non-rechargeable) 3300mAh lithium battery pack provides more than 8 hours* of operating time even at –20°C.
* Tx:Rx:Stand-by=6:6:48.
Large keypad with positive button action
Large buttons and knobs provide tactile feedback for positive operation.
Wide viewing angle LCD display
A wide viewing angle, high intensity LCD offers extra clear, easy to read characters. The bright LED indicator on the top of the panel shows the operating condition clearly.
Easy to operate even for unskilled operators
Operation instructions are printed on the rear panel. All operations can be made with one hand.
Other features
  • One touch access to Channel 16 and call channel
  • Highly visible yellow colored body
  • Optional VOX headset for on-board use
  • Optional waterproof speaker microphone, HM-125

BATTERY PACKS
BP-224
7.2V/750mAh
(Ni-Cd)
BP-224
BP-225
7.2V/1100mAh
(Ni-Cd)
BP-225
BP-234
9.0V/3300mAh
(Lithium: nonrechargeable)
(For survival craft)
BP-234

DESKTOP CHARGERS
BC-119N
Rapid charger
(On-board use only)
BC-119N
BC-158
Regular charger
(On-board use only)
BC-158


MULTI-CHARGER
BC-121N
Rapid charger
(On-board use only)
BC-121N



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-119N;On-board use only)
BC-145S
BC-147S
12V/200mA
(Use with BC-158;
On-board use only)
BC-147S
BC-157S
12V/7A
(Use with BC-121N;
On-board use only)
BC-157S

CHARGER ADAPTER
AD-109
(Use with BC-119N/BC-121N; On-board use only)
AD-109



CIGARETTE LIGHTER CABLE
CP-17L
(Use with BC-119N/BC-158;
On-board use only)
CP-17L



DC POWER CABLES
OPC-515L
(Use with BC-119N/BC-158;
On-board use only)
OPC-515L
OPC-656
(Use with BC-121N;
On-board use only)
OPC-656


SPEAKER MICROPHONE
HM-125
Waterproof, IPX7
(On-board use only)
HM-125



HEADSETS
HS-94
Earhook type with boom microphone
(Use with OPC-1392;
On-board use only)
HS-94*
HS-95
Behind-the-head type
(Use with OPC-1392; On-board use only)
HS-95*
HS-97
Throat microphone type
(Use with OPC-1392; On-board use only)
HS-97*

*Not waterproof.
HEADSET ADAPTER CABLE
OPC-1392
(On-board use only)
OPC-1392



BELT CLIPS
MB-86
MB-86
MB-103Y
MB-103Y


LEATHER BELT HANGERS
MB-96N_2
MB-86 type swivel joint supplied.
MB-96N
MB-96N_1
Fixed type
(Use with MB-103Y)
MB-96F


9/16×523/32×123/32 in



IC-GM1600
Frequency range
Tx/Rx

156.300–156.875MHz

Dimensions (W×H×D)
(Projections not included)

65×145×44 mm
2

Weight (approx.)

385g; 13.6oz
(With BP-234)

Current drain

Transmit (High)

1.0A/0.7A (2W/1W)

Max. audio

200mA

Power save

-

Sensitivity (at 12dB SINAD)

0.25μV typ. (USA version)

Intermodulation rejection

70dB (USA)
68dB (GEN)

Audio output power (10% dist./ 8Ω load)

350mW typical

RF output power

2/1W


All stated specifications are subject to change without notice or obligation.
