Satellite Networks Benefits
High flexibility
Fast deployment
Coverage, any location
Distance/location independent cost
High reliability > 99,9%
Single source networks offering seamless high
QoS for the complete networks
Ability to support broadcast/multicast services efficiently

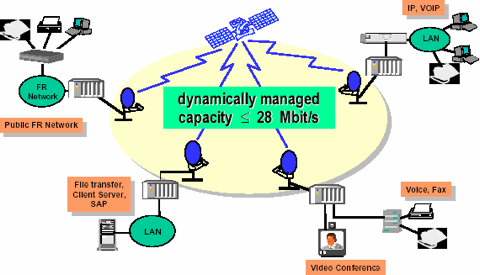

SkyWAN® based Satellite Network

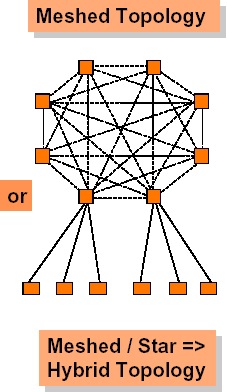

SkyWAN® Network Configurations

Single hob connections offering
minimum latency
minimum transmission cost
Any to any communication
High flexibility
No single point of failures
(redundant NMC stand-by)
Low start-up cost for small to
medium networks
Down size station according
their specific needs e.g. data
rates, location

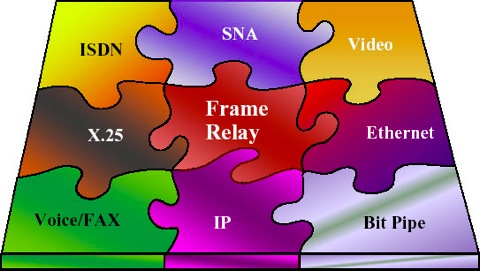

Frame Relay Technology
WAN® integration into given corporate network enviroment
Sky |
Frame Relay network | | via satellite |

Economical use of bandwidth |

Hubless system, any to any | | connectivity (fully meshed) |

High performance data and | | voice communication | | (up to 8 x 3,5 Mbit/s) |

Ku or C-Band |

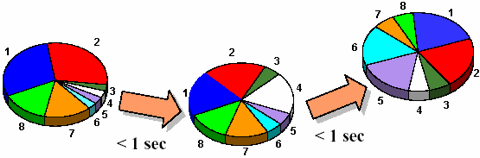

Dynamic Channel Access Protocol
Example of Channel Capacity Allotment (8 Stations)
1.8 m - 4.6 m Antenna |

100 % of the bandwidth is accessible

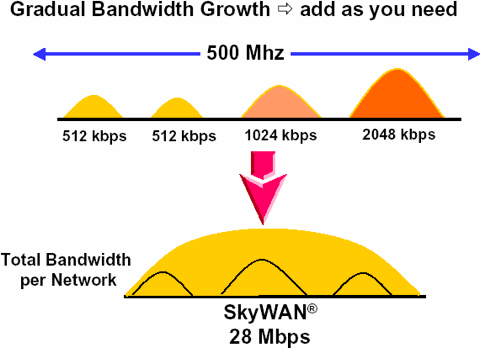

Scalable Bandwidth

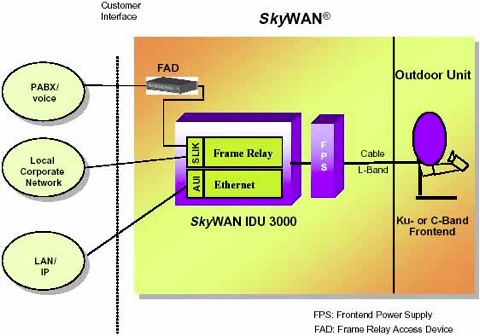

SkyWAN® Node Architecture

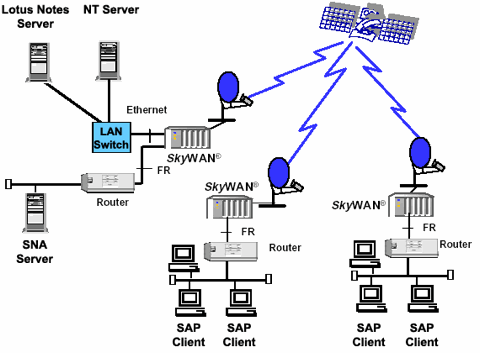

Data Applications: Client Server

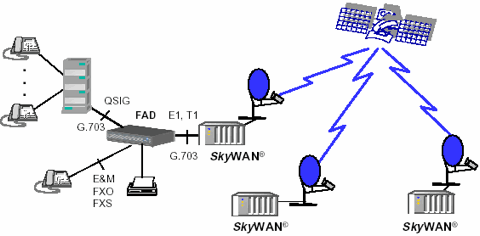

Voice Applications


Support of voice via FAD 9400, FAD 9350, FAD 9360, FAD 9380 |

Support of 8 analogous interfaces for voice and fax per FAD |

ISDN support of voice up to 3 BRI via FAD 9400 |

Interconnection of PABXs via QSIG with FAD 9360 / 9380 |

Up to 50 channels can be supported per 2 Mbps carrier |

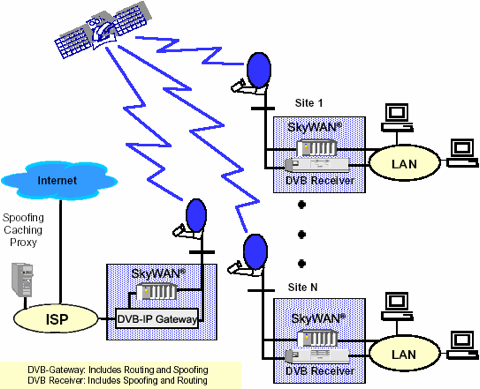

Internet / Intranet Access

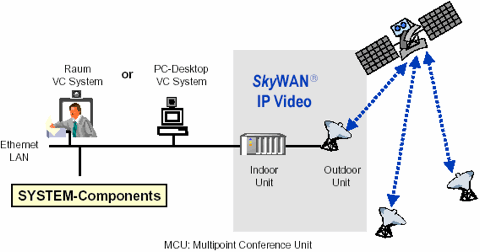

SkyWAN® IP Video Solution

LAN access guarantees the full performance of IP video | |
| on corporate network |

High performance video communication using the best | |
| of class end point equiqment |

Supports applications with high interactivity such as | |
| Distant / Tele-learning |

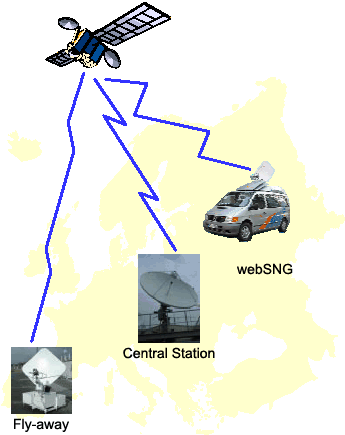

Mobile Terminals

Ideal for use as: |

Fly-away or webSNG |

Flexible MF-TDMA | | Uplinks for |

Disaster Recovery / | | Emergency |

Oil & Gas |

Goverment |

Defence |

Events e.g. Formula 1 |

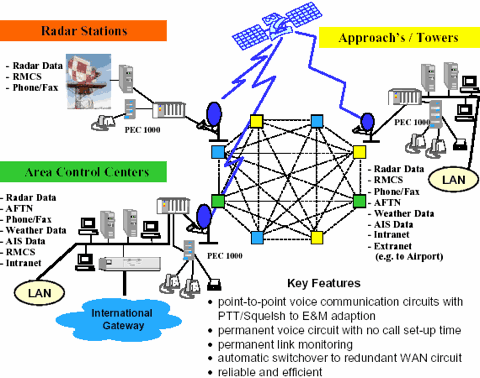

Solutions for Air Traffic Control

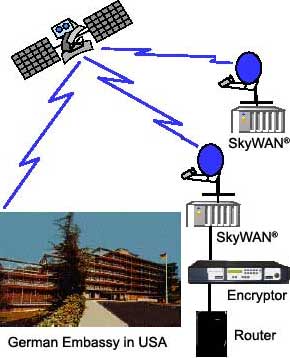

Solutions for Embassies
Advantages for the User |
any infrastructure
Direct connection
between neighbouring
countries in emergencies
Combination of all services
data, voice, video
Video broadcast for official missions
High security through
ent-to-end encryption
Cost effective through
bandwith and service sharing
Available anywhere, with
high reliability and performance

|
