2.4M MULTI-BAND TRANSPORTABLE
SATELLITE GROUND TERMINAL
Compact SatCom Solution for
Military Missions
Whenever in need of an easily deployable, self contained multiband
satellite terminal to support your missions, the MTT2400 is
the terminal of choice!

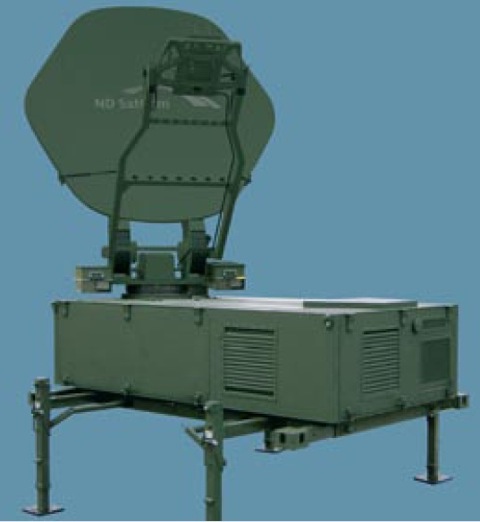

The MTT2400 is based on an ultra compact platform and is
designed for easy transportation and set-up. With its rapid
band switching capability and 34 RU free rack space it provides
utmost versatility and fl exibility and can meet almost all network
requirements. The terminal can be monitored and controlled
remotely via satellite. A built-in power generator allows permanent
stand-alone operation.
KEY FEATURES
34 RU available to implement customer
specifi c network functionality
Monitoring and Control system for easy
operation
Remote-controllable via satellite
Autotracking system with inclined orbit
capability
Built-in power generator and UPS
Air conditioned
MIL-STD-810 compliant
DISA certifi able
UNIVERSAL TRANSPORTABILITY CONCEPT
10 ft ISO container footprint
Trailer and truck bed mountable
Sea transport in ISO standard 20 ft container
Rail carriage
Air transportable in most commercial and
military aircrafts
PERFORMANCE SPECIFICATIONS
MTT2400
PHYSICAL SPECIFICATIONS
Size, transport mode (L x W x H) 3.18 m x 1.82 m x 1.61 m
Weight (Baseline platform, approx.) 2,090 kg
Trailer (option) 680 kg
ANTENNA SPECIFICATIONS
Antenna Diameter (operational) 2.40 m
Elevation Travel Range 5° - 90° of refl ector boresight
Elevation Travel Rate 0.7°/s
Total Azimuth Travel Range 180° continuous
Azimuth Travel Rate 0.3°/s
Polarization Adjustment ±95° (Ku-band, lin. pol.), 2.5°/s
ENVIRONMENTAL OPERATING CONDITIONS
Operational Wind Speed 72 km/h, gusts to 96 km/h
Survival Wind Speed (stowed) 180 km/h
Operational Ambient Temperature Range -30°C to +49°C
Storage Ambient Temperature Range* -46°C to +63°C
Rain up to 1.8 mm/min
Relative Humidity up to 100%, condensing
Solar Radiation up to 1,120 W/m2
* depending on installed devices
OPTIONS
Low PIM (X-band)
Ka-Band
SSPA
Additional EMI protection (60 db @ 1 GHz)
Auto-pointing
Customized modem- & baseband confi guration
Ruggedized trailer
C-BAND, 2 PORT CIRCULAR X-BAND, 2 PORT CIRCULAR KU-BAND, 4 PORT LINEAR
Frequency Range Tx Antenna 5.850 – 6.425 GHz 7.90 - 8.40 GHz 13.750 – 14.500 GHz
Frequency Range Rx Antenna 3.625 – 4.200 GHz 7.25 - 7.75 GHz 10.950 – 12.750 GHz
Antenna Gain Tx 42.1 dBi @ 6.13 GHz 43.6 dBi (RHCP) @ 8.15 GHz 48.4 dBi @ 14.125 GHz
Antenna Gain Rx 38.1 dBi @ 3.91 GHz 43.5 dBi (LHCP) @ 7.5 GHz 47.2 dBi @ 11.85 GHz
Transmit Power (Tri-band TWTA) 325 W 420 W 380 W
EIRP rated 64 dBW 67 dBW 71.5 dBW
G/T @ 10°El. 17.5 dB/K 22 dB/K 25 dB/K
