PORTABLE SATELLITE GROUND TERMINAL
1 Meter Dish
Portable VSAT Solution for
Military Missions
Whenever in need of a light-weight, yet powerful and extremely
easily deployable portable satellite terminal to support transmission
of voice, data and video, the MPT1000 is the terminal of choice!

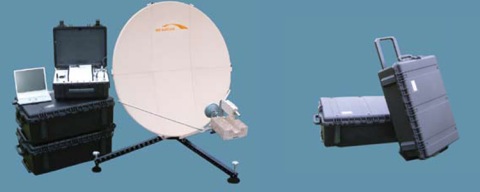

The MPT1000 is ideally suited for out of area missions, in
remote or rough terrain where low weight and rapid terminal
deployment is key. The terminal is stowed in 2 cases, allowing
for easy transportation whether on foot, ATV or car. The system
needs no on the spot confi guration and is up and running in
under 15 minutes. It is based on ND SatCom’s proven SkyWAN®
technology, which guarantees utmost fl exibility, scalability and
effi ciency, and allows for datarates from 64 kbit/s to 8.75 Mbit/s
– a perfect amplifi cation of your VSAT network!
KEY FEATURES
Ku-Band
MF-TDMA modem
IP-based Ethernet interface
No confi guration or maintenance during
mission necessary
Water, dust and mud proof
resistant to shock and vibration
Built in heating and cooling
Independent power supply
Meets international standards
PHYSICAL SPECIFICATIONs
Transport Case waterproof, sand and dust proof, shockproof and almost indestructible case
Number of Transport Cases 2
Dimensions transport cases: 80 x 52 x 31 cm;
modem case: 47 x 42 x 21 cm
Overall Weight 60 kg
ANTENNA SPECIFICATIONs
Antenna Diameter 1 m
Antenna Pointing manually, compass, inclinometer and pointing assistant are provided to aid in antenna pointing
Mount elevation and azimuth manually adjustable on aluminium tripod, with fine tuning facility
Installation / Management Assistant tablet PC, GPS, pointing assistant software, Line-Up management software
MODEM SPECIFICATIONS
Type SkyWAN®, MF-TDMA
Applications IP Video, VoIP, IP Data
Key Features QoS according Diffserv, embedded dynamic routing and TCP acceleration
User Interface Ethernet / Fast Ethernet
POWER SUPPLY
Power Connector 2 power connectors
Input Voltage Range 11 - 36 VDC, typ. 24 VDC, reverse voltage protection
Input Current Range max. 2 x 25 A, typ. 9 A
Consumption typ. 230 W
ENVIRONMENTAL OPERATING CONDITIONS
Temperature -31°C to + 49°C, according to MIL-STD-810E
Relative Humidity up to 100%, condensing
Winds 20 mph (32 km/h), without anchors
Dust and Rain modem: class of protection IP 65, according to DIN EN 60529
Altitude operational 4000 m
Frequency Transmit 14.0 - 14.5 GHz
Frequency Receive 10.95 - 11.7 GHz, 11.7 - 12.2 GHz or 12.25 - 12.75 GHz with interchangeable LNBs
Antenna Gain Transmit / Receive 41.9 dBi / 40.2 dBi
LNA Noise Temperature (typical) 70 K
G/T (typical) 19.4 dB/K @ 30° EL & 11.7 GHz
Polarization Linear
SSPA Ku-Band SSPA, 4 Watt, mounted on the back of the feed arm
EIRP greater than 46 dBW
Options
Battery Pack (Battery Pack with 6 military high capacity
batteries: 360 W; 30 V; 55.5 Ah; max. 12 A)
Grounding and lighting protection
ATV (all terrain vehicle)
