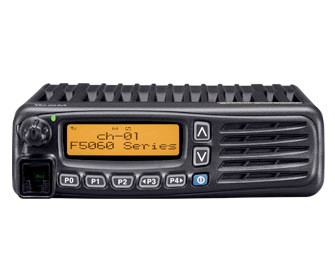

VHF/UHF Mobile Transceiver IC-F5061 IC-F6061

Pasted Graphiclogo_std_ip54logo_std_mil

LTR™/CONVENTIONAL/ DIGITAL* MULTI-MODE PROFESSIONAL MOBILE!
Designed for public safety, transportation and delivery service users, the IC-F5061 series offers advanced multi-mode operations, 6.25kHz digital option, improved scanning and flexible installation suitable for mobile and base stations. Just try and outgrow this radio!
* Optional UT-126H required.
Built-in basic LTR™ mode operation
Group, selective and phone calls are available in built-in LTR™ mode. MDC signaling is also available on LTR™ mode.
Optional 6.25kHz digital mode ready
Optional 6.25kHz digital mode is available.
Built-in versatile tone signaling
Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or MDC 1200 capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. Up to 10 2-Tone, 8 5-Tone codes can be decoded on a single memory channel.
IP54 dust-protection and splash resistance (Controller only)
When used with the optional separation kit, RMK-3, and separation cable, the front panel of the IC-F5061 series can be detached from the main unit. The control head has dust-protection and splash resistance construction equivalent to IP54.
Voting scan
The voting mode scanning detects the S-meter level of repeater stations and automatically selects the strongest station or the first station to exceed the preset S-meter level, useful for roaming 2 or more repeater sites.
Other features
  • The mode slave setting automatically selects the scanning list, according to the operating channel
  • Nuisance delete
  • Built-in inversion-type voice scrambler and optional UT-109R/UT-110R available
  • Large dot matrix display and multi-function LCD
  • 8 DTMF autodialing memories and ANI function
  • D-Sub accessory connector, ignition sensing line and more...

SEPARATION KIT
RMK-3
RMK-3



SEPARATION CABLES
OPC-607_608
(3m; 9.8ft)
OPC-607
OPC-607_608
(8m; 26.2ft)
OPC-608
OPC-609
(1.9m; 6.2ft)
OPC-609

DC POWER CABLES
OPC-1132A
(3m; 9.8ft)
OPC-1132
OPC-1132A
(7m; 23ft)
OPC-347


HAND MICROPHONES
HM-152
HM-152
HM-152T
DTMF type
HM-152T
HM-148
Heavy-duty type
HM-148

DESKTOP MICROPHONE
SM-25
SM-25



EXTERNAL SPEAKERS
SP-5
SP-5
SP-10
SP-10
SP-22
SP-22
SP-30
SP-30
INTERNAL UNITS
UT-109_R
Voice Scrambler
(Non-rolling type)
UT-109R
UT-110_R
Voice Scrambler
(Rolling type)
UT-110R
UT-126H
IDAS digital unit
UT-126H
SEPARATION KIT
RMK-3
RMK-3



SEPARATION CABLES
OPC-607_608
(3m; 9.8ft)
OPC-607
OPC-607_608
(8m; 26.2ft)
OPC-608
OPC-609
(1.9m; 6.2ft)
OPC-609

DC POWER CABLES
OPC-1132A
(3m; 9.8ft)
OPC-1132
OPC-1132A
(7m; 23ft)
OPC-347


HAND MICROPHONES
HM-152
HM-152
HM-152T
DTMF type
HM-152T
HM-148
Heavy-duty type
HM-148

DESKTOP MICROPHONE
SM-25
SM-25



EXTERNAL SPEAKERS
SP-5
SP-5
SP-10
SP-10
SP-22
SP-22
SP-30
SP-30
INTERNAL UNITS
UT-109_R
Voice Scrambler
(Non-rolling type)
UT-109R
UT-110_R
Voice Scrambler
(Rolling type)
UT-110R
UT-126H
IDAS digital unit
UT-126H

General



IC-F5061
IC-F6061
Frequency coverage
(Varies according to version)
136-174 MHz
400–470 MHz
450–512 MHz
Number of channels
512 ch/128 zones
Channel spacing
(Varies according to version)
12.5/25, 15/30
6.25 (option) kHz
12.5/25
6.25 (option) kHz
Type of emission
16K0F3E,
11K0F3E,
8K10F1E/D,
4K00F1E/D*
(* Digital)
16K0F3E,
11K0F3E,
11K0F7E/D,
8K10F1E/D,
4K00F1E/D*
(* Digital)
Current drain
Tx High
14A/7A (50/25W)
14A/7A (45/25W)
Rx
Stand-by
300 mA
Max. audio
1.2A
Dimensions
(projections not included; W×H×D)
160×45×150 mm
6
516×125/32×5 2932 in
Weight (approx.)
1.3kg; 2.9lb

Transmitter



IC-F5061
IC-F6061
RF output power
50W
45W
Spurious emissions
75dB (typ.)
Frequency stability
±1.0ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
45dB typ. (W)
40dB typ. (N)

Receiver



IC-F5061
IC-F6061
Sensitivity at 12dB SINAD
0.25μV (typ. analog),
0.20μV (typ. digital at 5% BER)
Adjacent channel selectivity (W/N)
85/75dB (typ.)
Spurious response rejection
90dB (typ.)
Intermodulation rejection
77dB (typ.)
AF output power
(at 5% distortion with an 8Ω load)
4W (typ.)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F5061 IC-F6061
Number of option slots

2*

CTCSS/ DTCS

encoder

Available

decoder

Available

2-Tone

encoder

Available

decoder

Available

5-Tone

encoder

Available

decoder

Available

DTMF autodial

Available

DTMF decoder

Available**

Voice Scrambler

Inversion

Available

Non-rolling

UT-109R

Rolling

UT-110R

APCO P25 digital

-

AES encryption

-

DES encryption

-

IDAS digital

UT-126H

MPT 1327

-

MDC 1200

Available

LTR™ trunking

Available

PassPort

-

* One for UT-119H digital unit and one for another option board.
** Possible as a kind of 5-Tone format.

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Rain Blowing

506.4 I*

Rain Drip

506.4 III*

Humidity Induced

507.4

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

* Rain blowing and drip tests were performed on the controller and RMK-3 only.

Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
