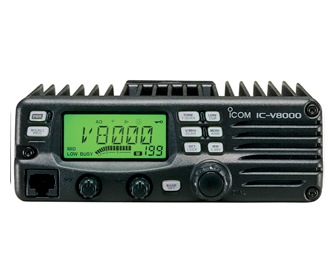

144 MHz FM Mobile Transceiver IC-V8000 LM
![Pasted Graphic 1](files/pasted-graphic-1.jpg)
![logo_std_mil](files/logo_std_mil.gif)
75W of Professional Quality and Power
Powerful 75W of output power
Remote control microphone, HM-133V* for convenient full remote control operation
* Optional for some versions.
207 Memory channels with 6-character channel name divided into 10 memory banks
Other features
- Front mounted speaker for clear audio
- Durable one-piece, die-cast aluminum chassis
- Selectable amber and green backlight
- Built-in CTCSS and DTCS encoder/decoder
- DTMF encoder with 10 DTMF memories
- 10dB Squelch attenuator
- Optional DTMF decoder unit, UT-108 with ANI
- Optional voice scrambler unit, UT-109 or UT-110
SPEAKER-MICROPHONES
![HM-133_V](files/hm-133_v.jpg)
HM-133V |
![HM-154](files/hm-154.jpg)
![HM-154T](files/hm-154t.jpg)
|
![SP-10](files/sp-10.jpg)
SP-10 | | | |
![OPC-440](files/opc-440.jpg)
OPC-440 | 5.0m: 16.4ft
![no_photo](files/no_photo.gif)
OPC-647 | | |
![OPC-441](files/opc-441.jpg)
OPC-441 | 5.0m: 16.4ft | | |
![OPC-589](files/opc-589.jpg)
OPC-589 | 13-pin ACC long cable for AT-180 7.0m;22ft | | |
![OPC-1132A](files/opc-1132a.jpg)
OPC-1132 | 3.0m: 9.8ft
![OPC-347](files/opc-347.jpg)
OPC-347 | 7.0m: 23ft | |
CLONING CABLES
![OPC-474](files/opc-474.jpg)
OPC-474 | Between transceivers
![no_photo](files/no_photo-2.gif)
OPC-478 | Transceiver to PC RS-232C cable | |
![UT-108_R](files/ut-108_r.jpg)
UT-108 | DTMF Decoder
![UT-109_R](files/ut-109_r.jpg)
UT-109 | Voice scrambler unit
![UT-110_R](files/ut-110_r.jpg)
UT-110 | Voice scrambler unit |
![no_photo](files/no_photo-3.gif)
CS-V8000 | |
Frequency coverage | Guaranteed range 144–148MHz |
Dimensions | 150×50×150mm ; |
Weight | 1.09kg; 2.2lb |
Output power | 75, 25, 10, 5 W selectable |
Sensitivity | More than 6kHz at –6dB |
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
Low Pressure Storage (Altitude) | 500.4 I |
Low Pressure Operation (Altitude) | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 II |
Humidity Induced | 507.4 |
Humidity Aggravate | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
