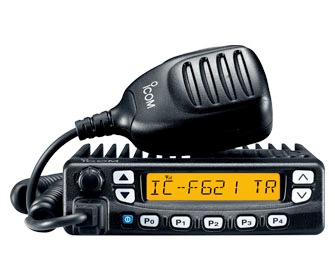

UHF Trunked Radio IC-F621TR
THE IDEAL SUBSCRIBER UNITS FOR UHF SMR AND ESMR OPERATIONS
Multiple modes
The IC-F621TR offers basic LTR™, PassPort and conventional operations in one unit. Conventional operation and talk-around are both available with the touch of a button, even while you are operating in LTR™ or PassPort mode.
LTR™ Features and Select Call
The IC-F621TR offers maximum flexibility to program up to 50 systems or up to 250 groups per system. All basic LTR™ features, including direct phone calling and wide-narrow channel spacing are available. The IC-F621TR offers an optional DTMF microphone, HM-152T, allowing for direct dialing.
PassPort Features — NTS Release 2.2
- Individual Selective Call (MIN call) — Allows private call between individual members within a fleet.
- Display MIN Text — While in group conversation, you can see the name of the calling party in the display, instead of the MIN number.
- Primary Talk Group — "All Call" allows individual users to call all groups in the fleet.
- RSSI (Receive signal strength indicator) — Detects the strongest signal site, providing seamless roaming.
- Site Lock — Allows the user to lock the radio onto the current site to avoid roaming.
The IC-F621TR offers two versions that cover 400-430MHz and 440-490MHz. The IC-F43TR offers two versions that cover 400-470MHz and 450-512MHz. And all versions provide switchable 12.5/25 kHz width by channel. Because the IC-F621TR offers a full 45 watts of power, it provides more reliable handshakes at the edge of a system's footprint.
Voice scrambler function
The optional voice scrambler unit, UT-109, provides secure communication in all operating modes.
Advanced PC programming
You may assign operating modes, default talk group for home button, power-ON home or previous group, network roaming, offset frequency by channel, LTR™ polarity by system, home channel and area bit by system, Tx and Rx ID, and UID for PassPort.
Other features
- Military grade durability, tested to MIL-STD 810
- Multiple scan mode
- Dynamic Talk Around
- Dead beat disable, ASID text, and more...
ACC CABLE
| OPC-617 | | | |
| OPC-1132 |
| OPC-347 | | |
| HM-152 |
| HM-152TN | | |
| SM-25 | | | |
| SP-5 |
| SP-10 |
| SP-22 | |
| UT-108 |
| UT-109 | Voice scrambler unit
| UT-110 | Voice scrambler unit |
General
| IC-F621TR | ||
| Frequency coverage (Varies according to version) | 400–430 MHz | ||
Number of channels | 250 (conventional) | ||
Channel spacing | 12.5/25 kHz | ||
Type of emission | 16K0F3E, 8K50F3E | ||
Current drain | Tx High | 13A/7A (45/25W) | Rx | Stand-by | 300 mA | Max. audio | 1.2A |
Dimensions | 140×40×170 mm | ||
Weight (approx.) | 1.2kg; 2.6lb | ||
| IC-F621TR |
| RF output power | 45W |
Spurious emissions | 70dB (typ.) |
Frequency stability | ±2.5ppm |
Audio harmonic distortion | 3% typical |
FM Hum and Noise | 46dB typ. (W) |
| IC-F621TR |
| Sensitivity at 12dB SINAD | 0.25μV (typ.) |
Adjacent channel selectivity (W/N) | 75/65dB (typ.) |
Spurious response rejection | 75dB |
Intermodulation rejection | 75dB (typ.) |
AF output power | 4W (typ.) |
| IC-F621TR | |
| Number of option slots | 1 | |
CTCSS/ DTCS | encoder | Available | decoder | Available |
2-Tone | encoder | - | decoder | - |
5-Tone | encoder | - | decoder | - |
DTMF autodial | Available | |
DTMF decoder | UT-108* | |
Voice Scrambler | Inversion | - | Non-rolling | UT-109 | Rolling | UT-110** |
APCO P25 digital | - | |
AES encryption | - | |
DES encryption | - | |
IDAS digital | - | |
MPT 1327 | - | |
MDC 1200 | - | |
LTR™ trunking | Available | |
PassPort | Available | |
** Available in conventional mode only.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
