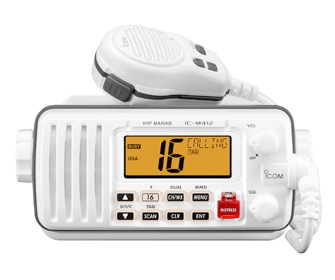

VHF MARINE TRANSCEIVER IC-M412

Pasted Graphiclogo_std_submersiblelogo_std_dsc_dlogo_std_force5audio

Compact, easy to use and a great value
Class D Digital selective calling
The built-in Class D DSC provides additional safety at sea. The built-in DSC watch function monitors Ch 70 (DSC channel) activity, even while you are receiving another channel. Distress, individual, group, all ships, position request/reply, polling request/reply and DSC test calls can be sent. DSC messages can be received and automatically stored in the message memory.
IPX7 submersible protection
The IC-M412 can withstand submersion in 1m of water for up to 30 minutes (except cables). The supplied microphone also has submersible protection.
Easy to see large display
The large backlit LCD (23.5(H)×64(W)mm; 15/16 × 217/32 in.) shows a full sized channel number. A 10 character scrolling message shows the channel name and can show position, time and DSC messages.
Common GPS/NAV interface
When connected to an external GPS receiver, current position and time are shown on the IC-M412's display. When receiving position information from another vessel, the IC-M412 can transfer it to a navigational device via NMEA 0183 connectivity.
Superior receiver sensitivity, Superior speaker audio
The IC-M412 has 0.22µV (typical at 12dB SINAD) superior sensitivity for class-leading receiver performance. The front facing speaker offers 4.5W (typical) of loud, clear reception.
Other features
  • AquaQuake™ draining function blows water away from the speaker grill
  • Priority and normal scan using simple tag scanning system
  • External speaker connection
  • Low voltage indicator
  • Transmitting power selection with microphone
  • Black and super white color versions

HAND MICROPHONE
no_photo
HM-164B/SW



FLUSH MOUNT KIT
MB-69
MB-69
GENERAL
15/32 × 31/16 × 51/5in.



IC-M412
Frequency range
Tx

156.025-157.425MHz

Rx

156.050-163.275MHz

Power supply

13.8V DC ±15%

Dimensions
(W×H×D, projections not included)

164×78×139.5mm;
6

Weight (approx.)

1060g; 2.3lb

Current drain
(at 13.8V DC)

Tx

5.5A (at 25W output)

Rx

1.5A (at AF max.)

Sensitivity

0.22µV typical at 12dB SINAD

Intermodulation

More than 70dB

Audio output power
at 10% distortion with a 4Ω load

4.5W typical

Output power

25W/1W (Hi/Low)


All stated specifications are subject to change without notice or obligation.
