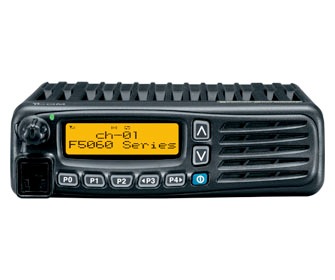

iDAS MOBILE TRANSCEIVER IC-F5061D / IC-F6061D
LTR™/CONVENTIONAL/ DIGITAL* MULTI-MODE PROFESSIONAL MOBILE!
Designed for public safety, transportation and delivery service users, the IC-F5061D series offers advanced multi-mode operations. This includes advanced multi mode operations, IDAS 6.25kHz digital options, advanced scanning and flexible installation suitable for mobile and base stations. Just try and outgrow this radio!
* UT-126H is already installed in IC-F5061D, IC-F6061D.
Built-in basic LTR™ mode operation
Group, selective and phone calls are available in built-in LTR™ mode. MDC signaling is also available with LTR™ mode.
IDAS, 6.25kHz digital mode ready
The IDAS 6.25kHz digital mode is available with the UT-126H digital unit*.
* Already installed.
Built-in versatile tone signaling
Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or MDC 1200 capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. Up to ten 2-Tone, eight 5-Tone codes can be decoded on a single memory channel.
IP54 dust-protection and splash resistance (Controller only)
When used with the optional separation kit, RMK-3, and separation cable, the front panel of the IC-F5061D series can be detached from the main unit. The control head has dust-protection and splash resistance construction equivalent to IP54.
Voting scan
The Voting scan detects the signal strength level of repeater sites and automatically selects the strongest station, useful for roaming between 2 or more repeater sites. Once you program for voting mode in a memory zone, you can easily start voting mode operation by changing the zone setting.
Other features
- The mode independent setting automatically selects the scanning list, according to the operating channel
- Nuisance delete
- Lone worker function
- Built-in inversion-type voice scrambler and optional UT-109R/UT-110R available*
- Large dot matrix display and multi-function LCD
- 8 DTMF autodialing memories
- D-Sub accessory connector, ignition sensing line and more...
SEPARATION KITS
| RMK-3 | | | |
| OPC-607 | (3m; 9.8ft)
| OPC-608 | (8m; 26.2ft)
| OPC-609 | (1.9m; 6.2ft) |
| OPC-1132A | (3m; 9.8ft)
| OPC-347 | (7m; 23ft) | |
| HM-152 |
| HM-152T | DTMF type
| HM-148 | Heavy-duty type |
| SM-25 | | | |
| SP-5 |
| SP-10 |
| SP-22 |
| SP-30 |
| UT-109R | Voice Scrambler
| UT-110R | Voice Scrambler
| UT-126H | IDAS digital unit |
GENERAL
| IC-F5061D | IC-F6061D | |||||||
| Frequency coverage (Varies according to version) | 136-174 MHz | 400–470 MHz 450–512 MHz 350-400MHz (Non - FCC) | |||||||
| Number of channels | 512 ch/128 zones | Channel spacing (Varies according to version) | 12.5/25, 15/30 6.25 (option) kHz | 12.5/25 6.25 (option) kHz | |||||
| Type of emission | 16K0F3E, 11K0F3E, 8K10F1E/D, 4K00F1E/D* (* Digital) | 16K0F3E, 11K0F3E, 11K0F7E/D, 8K10F1E/D, 4K00F1E/D* (* Digital) | |||||||
| Current drain | Tx High | 14A/7A (50/25W) | 14A/7A (45/25W) | Rx | Stand-by | 300 mA | Max. audio | 1.2A | |
| Dimensions (projections not included; W×H×D) | 160×45×150 mm 6 5 ⁄16×125/32×5 29 ⁄32 in | Weight (approx.) | 1.3kg; 2.9lb | ||||||
TRANSMITTER
| IC-F5061D | IC-F6061D | ||||||||||||
| RF output power | 50W | 45W | ||||||||||||
| Spurious emissions | 75dB (typ.) | Frequency stability | ±1.0ppm | Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | 45dB typ. (W) 40dB typ. (N) | Digital FSK error | 5% max. | |||||
| IC-F5061D | IC-F6061D | ||||||||||||
| Sensitivity at 12dB SINAD | 0.25μV (typ. analog), 0.20μV (typ. digital at 5% BER) | Adjacent channel selectivity (W/N) | 85/75dB (typ.) | Spurious response rejection | 90dB (typ.) | Intermodulation rejection | 77dB (typ.) | AF output power (at 5% distortion with an 8Ω load) | 4W (typ.) | |||||
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-F5061D
IC-F6061D | |
| Number of option slots | 2* | |
CTCSS/ DTCS | encoder | Available | decoder | Available |
2-Tone | encoder | Available | decoder | Available |
5-Tone | encoder | Available | decoder | Available |
DTMF autodial | Available | |
DTMF decoder | Available** | |
Voice Scrambler | Inversion | Available | Non-rolling | UT-109R | Rolling | UT-110R |
APCO P25 digital | - | |
AES encryption | - | |
DES encryption | - | |
IDAS digital | UT-126H*** | |
MPT 1327 | - | |
MDC 1200 | Available | |
LTR™ trunking | Available | |
PassPort | - | |
** Possible as a kind of 5-Tone format.
*** Already installed.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I* |
Rain Drip | 506.4 III* |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
