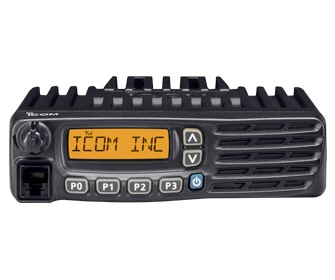

iDAS MOBILE TRANSCEIVER IC-F5123D / IC-F6123D

Pasted Graphic 1logo_std_idaslogo_std_millogo_std_mdc

Everything you'd expect in a business radio ... Plus Digital!
128 channels with 8 zones
Ample 128 channel capacity allows most companies plenty of room to grow. Up to 8 zones lets you group together channels in logical fashion.
Built military rugged!
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810 F.
Compact hand microphone
Select from 5 levels of mic gain, for clearer transmission.
GPS receiver connection
01 With optional D-SUB 25-pin ACC cable OPC-2078, an external GPS receiver or PC can be connected.

8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller's name, received message, etc.
Large programmable buttons
For easy access to often used functions, P0-P3 buttons are programmable to meet specific needs. Buttons and LCD display are backlit for night time opeartion.
Powerful, front-facing speaker
4 watts (typ.) front facing speaker delivers clear and loud audio throughout a vehicle's cabin. Digital modulation adds distinct clarity to received voices.
IDAS™ digital mode operation
The IC-F5123D series provides NXDN™ CAI-based IDAS digital mode operation. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking. The following IDAS features are programmable.
  • PTT ID
  • Individual/Talkgroup list (Max. 500)
  • RAN (Radio Access Number)
  • Status
  • SDM (Short Data Message)
  • Call alert
  • Radio check (RX)
  • Stun/kill/revive (RX)
  • Remote monitor (RX)
  • Emergency (No ACK)
  • Digital voice scrambler
  • GPS data (PC and software required to show received position data)
Built-in 2-Tone and 5-Tone (Analog mode)
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The stun/kill functions disable a radio over the air and the revive function restores the stunned radio.
MDC 1200 compatible (Analog mode)
The following MDC features are available with the built-in MDC signaling.
  • PTT ID
  • Radio check (RX)
  • Emergency (No ACK)
  • Stun/Revive (RX)
  • 500 alias table (Max.)
Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The TX channel and talk back functions allow you to make a quick response while scanning.
Lone worker function
When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check in before the preset time runs out, then the radio automatically sends out an emergency signal.
Other features
  • CTCSS/DTCS encoder/decoder*
  • BIIS PTT ID transmission*
  • 8 DTMF autodial memories
  • Microphone hanger action programmable
  • Optional DTMF microphone (HM-152T)
  • PC programmable
  • Power-on password function
  • Time out timer
  • Talk around function
  • Nuisance delete function*
  • Forced narrow function*
* analog only

TX: Transmit, RX: Receive


HAND MICROPHONES
HM-152
HM-152
HM-152T
DTMF type
HM-152T
HM-148G
Self-grounding type
HM-148G
HM-148T
Self-grounding type with DTMF keypad
HM-148T
DESKTOP MICROPHONE
SM-26
SM-26



EXTERNAL SPEAKERS
SP-30
SP-30
SP-22
SP-22


ACC CABLES
OPC-2078
25-pin
OPC-2078
OPC-1939
15-pin
OPC-1939

General



IC-F5123D
IC-F6123D
Frequency coverage
136-174MHz
350-400MHz
400-470MHz
450-512MHz
Number of channels
128 channels (8 zones)
Channel spacing
6.25/12.5/25kHz
Type of emission
16K0F3E, 11K0F3E, 4K00F1E/F1D
Current drain
(approx.)
Tx
50W/45W
10A
11A
25W
5A
Rx
Stand-by
300mA
Max. audio
1.2A
Dimensions
(projections not included;
W×H×D)
50W/45W version
150×40×167.5 mm;
5.91×1.57×6.59 in
25W version
150×40×117.5 mm;
5.91×1.57×4.63 in
Weight
50W/45W version
1.1kg; 2.4lb
25W version
0.8kg; 1.8lb

Transmitter



IC-F5123D
IC-F6123D
RF output power
50W/45W version
50W, 25W, 5W
(Hi, L2, L1)
50W, 25W, 5W
(Hi, L2, L1)
25W version
25W, 10W, 2.5W
(Hi, L2, L1)
25W, 10W, 2.5W
(Hi, L2, L1)
Spurious emissions
70dB (min.)
Frequency stability
±1.0ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
46/40dB typ. (Wide/Narrow)

Receiver



IC-F5123D
IC-F6123D
Sensitivity
0.25μV typ. (at 12dB SINAD)
0.18μV typ. (at 5% BER)
Adjacent channel selectivity
80/70dB typ. (W/N),
65dB typ. (digital)
75/65dB typ. (W/N),
60dB typ. (digital)
Spurious response rejection
70dB min.
Intermodulation rejection
75dB typ. (W/N),
70dBμV emf type. (digital)
AF output power
(at 5% distortion with an 4Ω load)
4W (typ.)

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4 I

Low Temperature Operation

502.4 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Humidity Induced

507.4

Settling Dust

510.4 III

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV


Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
