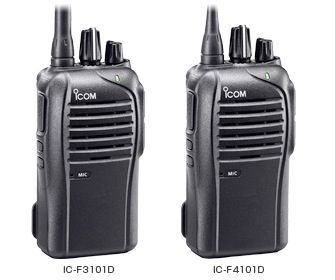

iDAS HANDHELD TRANSCEIVER IC-F3101D / IC-F4101D





Everything you expect in a business radio ... Plus Digital!
Non-slip, large PTT

800mW loud audio

* Typical with internal speaker.
Long lasting battery life
The IC-F3101D series has three types of battery packs and case to choose from. Lithium-Ion (Li-Ion) battery pack, BP-265, Nickel metal hydride (Ni-MH) battery pack, BP-264 and battery case, BP-263 are selectable for your preference.
Battery pack | Type and capacity | Operating time* (Approx.) |
BP-264 | Ni-MH 7.2V | 12 hours (VHF) 11 hours (UHF) |
BP-265 | Li-Ion 7.4V | 17.5 hours (VHF) 16 hours (UHF) |
Channel announcement

Bright 3-Color LED
The bright LED shows the operating status: red for transmit, green for listening, or orange for low battery, etc.
Hands-free operation

Built military rugged!
While the radio is a compact (111.5mm, 4.39 inch height) and light weight (320g; 11.3oz with BP-265 (VHF version)), the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MIL-STD-810 environmental test. In short, the IC-F3101D series is built rugged!
IDAS™ digital mode compatible
The IC-F3101D series provides basic operation in NXDN™ CAI-based IDAS digital mode. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking. The following IDAS features are programmable.
- PTT ID (TX)
- Individual/Group call (TX)
- Block decode
- RAN (Radio Access Number)
- Radio check (RX)
- Stun/kill/revive (RX)
- Call alert (RX)
- Remote monitor (RX)
- Emergency (TX)
- Digital voice scrambler
- GPS (TX only with HM-171GP)
Built-in 2-Tone and 5-Tone (Analog mode)
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions. The radio stun and kill functions disable a radio over the air and the revive function restores the stunned radio.
Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The transmit channel and talk back functions allow you to make a quick response while scanning.
Other features
- Digital/Analog mixed mode operation
- CTCSS/DTCS encoder/decoder*
- MDC PTT ID and emergency*
- DTMF autodial
- Low battery alert
- 2-step power save
- PC programmable
- Time out timer
- Talk around function
- Lone worker function
- Surveillance function
- Forced narrow function*
BATTERY PACKS

(Ni-MH)
7.2V/1400mAh
BP-264 |

(Li-Ion)
7.4V/1900mAh (min.),
2000mAh (typ.)
BP-265 | | |

AA(LR6) × 6 cells
BP-263 | | | |

Rapid charger
(for BP-264)
(Use with BC-123S)
BC-191 |

Regular charger
(for BP-264)
(Use with BC-147S)
BC-192 |

Rapid charger
(for BP-265)
(Use with BC-123S)
BC-193 |

Rapid multicharger for BP-264 or BP-265.
(Use with BC-157S)
BC-197 |

Charger adapter for BP-264.
(Use with BC-197)
AD-120 |

Charger adapter for BP-265.
(Use with BC-197)
AD-121 | | |

12V/1A
(Use with BC-191 or BC-193)
BC-123S* |

12V/200mA
(Use with BC-192)
BC-147S* |

12V/6.6A
(Use with BC-197)
BC-157S | |
CIGARETTE LIGHTER CABLE

(Use with BC-191 or BC-193)
CP-23L | | | |

Power supply cable
(Use with BC-191, BC-192 or BC-193)
OPC-515L |

DC power cable
(Use with BC-197)
OPC-656 | | |

GPS Microphone
HM-171GP |

HM-158L |

HM-159L | |

Earhook type with boom microphone
(Use with OPC-2004)
HS-94 |

Behind-the-head type
(Use with OPC-2004)
HS-95 |

Throat microphone type
(Use with OPC-2004)
HS-97 | |

OPC-2004 | | | |

SP-27 | | | |

MB-124 | | | |

150-162MHz
FA-SC56VS |

160-174MHz
FA-SC57VS |

450-490MHz
FA-SC73US | |

136-174MHz
FA-SC61VC |

380-520MHz
FA-SC61UC | | |

150-160MHz
FA-SC62V |

155-165MHz
FA-SC63V | | |

136-150MHz
FA-SC25V |

150-174MHz
FA-SC55V |

400-430MHz
FA-SC25U |

430-470MHz
FA-SC57U |

470-520MHz
FA-SC72U | |
GENERAL
| IC-F3101D | IC-F4101D | |||||||||||||||||
Frequency coverage | 136-174MHz | 400-470MHz 450-512MHz | |||||||||||||||||
Number of channels | 16 channels | Channel spacing | 6.25/15/30kHz, 6.25/12.5/25kHz | Type of emission | 16K0F3E, 11K0F3E, 4K00F1E/F1D | Current drain (approx.) | Tx High | 1.3A | 1.3A | ||||||||||
Rx | Max. audio | 400mA (Internal SP) | 400mA (Internal SP) | Standby | 90mA (Digital mode) | 100mA (Digital mode) | |||||||||||||
Dimensions (W×H×D) (Projections not included) | 58×111.5×36.5mm; 2.28×4.39×1.44in (With BP-265) | Weight (approx.) | 150g; 5.3oz (Radio only) 320g; 11.3oz (With MB-124, BP-265 & Ant.) | 150g; 5.3oz (Radio only) 310g; 10.9oz (With MB-124, BP-265 & Ant.) |
TRANSMITTER
| IC-F3101D | IC-F4101D | ||||||
Output power (at 7.5V DC) | 5W, 2W, 1W (Hi, L2, L1) | 4W, 2W, 1W (Hi, L2, L1) | ||||||
Spurious emissions | 70dB min. | Frequency stability | ±1.0ppm | Audio harmonic distortion (AF 1kHz 40% deviation) | 0.5/0.8% typ. (W/N) | 0.7/1.2% typ. (W/N) | ||
FM Hum and noise | 52/46dB typ. (W/N) | 50/43dB typ. (W/N) |
RECEIVER
| IC-F3101D | IC-F4101D | |||
Sensitivity (at 12dB SINAD) (Digital at 5% BER) | 0.23μV typ. 0.18μV typ. | 0.22μV typ. 0.18μV typ. | |||
Adjacent channel selectivity | 77/71dB typ. (W/N) | 74/67dB typ. (W/N) | |||
Spurious response rejection | 90dB typ. | 80dB typ. | |||
Intermodulation rejection | 75dB typ. | Audio output power (at 5% distortion with 12Ω load) | 800mW (typ., Internal speaker) |
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4 I |
Low Temperature Operation | 502.4 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Ingress Protection Standards | Dust & Water | IP54 (Dust-protection and water resistant) |
Measurements made in accordance with TIA-603.
All stated specifications are subject to change without notice or obligation.
