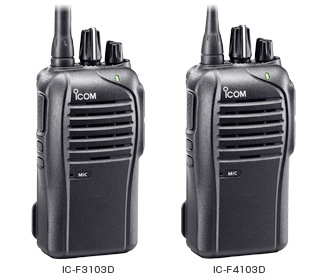

iDAS HANDHELD TRANSCEIVER IC-F3103D / IC-F4103D

Pasted Graphic
logo_std_idaslogo_std_millogo_std_ip54logo_std_mdc

Everything you expect in a business radio ... Plus Digital!
Non-slip, large PTT
01 Having only 2 programmable buttons, PTT button, volume knob and 16-position channel knob, the radio does not require special training to use. The large PTT button is designed to provide non-slip, confident-click, even wearing gloves.

800mW loud audio
02 The built-in bridge-tied load (BTL) amplifier provides a powerful 800mW* audio output from the large 45mm speaker. Digital modulation adds distinct clarity to received voices.
* Typical with internal speaker.
Long lasting battery life
The IC-F3103D series has three types of battery packs and case to choose from. Lithium-Ion (Li-Ion) battery pack, BP-265, Nickel metal hydride (Ni-MH) battery pack, BP-264 and battery case, BP-263 are selectable for your preference.

Battery pack

Type and capacity
Operating time* (Approx.)
BP-264

Ni-MH 7.2V
1400mAh

12 hours (VHF)
11 hours (UHF)

BP-265

Li-Ion 7.4V
1900mAh (min.)
2000mAh (typ.)

17.5 hours (VHF)
16 hours (UHF)
* Tx: Rx: Standby=5:5:90. Power save function ON.
Channel announcement
03 When you rotate the channel knob, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

Bright 3-Color LED
The bright LED shows the operating status: red for transmit, green for listening, or orange for low battery, etc.
Hands-free operation
04 Optional headset HS-94, HS-95 or HS-97 with OPC-2004 can be used with the IC-F3103D series. The IC-F3103D series has the internal VOX (Voice Operated Transmit) capability for hands-free operation. Also, the VOX gain and VOX delay time are adjustable.

Built military rugged!
While the radio is a compact (111.5mm height) and light weight (320g with BP-265 (VHF version)), the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MIL-STD-810 environmental test. In short, the IC-F3103D series is built rugged!
IDAS™ digital mode compatible
The IC-F3103D series provides basic operation in NXDN™ CAI-based IDAS digital mode. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking. The following IDAS features are programmable.

  • PTT ID (TX)
  • Individual/Group call (TX)
  • Block decode
  • RAN (Radio Access Number)
  • Radio check (RX)
  • Stun/kill/revive (RX)
  • Call alert (RX)
  • Remote monitor (RX)
  • Emergency (TX)
  • Digital voice scrambler
  • GPS (TX only with HM-171GP)
TX: Transmit, RX: Receive
Built-in 2-Tone and 5-Tone (Analog mode)
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions. The radio stun and kill functions disable a radio over the air and the revive function restores the stunned radio.
Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The transmit channel and talk back functions allow you to make a quick response while scanning.
Other features
  • Digital/Analog mixed mode operation
  • CTCSS/DTCS encoder/decoder*
  • BIIS PTT ID transmission*
  • MDC PTT ID and emergency*
  • DTMF autodial
  • Low battery alert
  • 2-step power save
  • PC programmable
  • Time out timer
  • Talk around function
  • Lone worker function
  • Surveillance function
  • Forced narrow function*
* analog only

BATTERY PACKS
BP-264
(Ni-MH)
7.2V/1400mAh
BP-264
BP-265
(Li-Ion)
7.4V/1900mAh (min.),
2000mAh (typ.)
BP-265


BATTERY CASE
BP-263
AA(LR6) × 6 cells
BP-263



DESKTOP CHARGERS
BC-191
Rapid charger
(for BP-264)
(Use with BC-123S)
BC-191
BC-192
Regular charger
(for BP-264)
(Use with BC-147S)
BC-192
BC-193
Rapid charger
(for BP-265)
(Use with BC-123S)
BC-193
BC-197
Rapid multicharger for BP-264 or BP-265.
(Use with BC-157S)
BC-197
CHARGER ADAPTERS
AD-120
Charger adapter for BP-264.
(Use with BC-197)
AD-120
AD-121
Charger adapter for BP-265.
(Use with BC-197)
AD-121


AC ADAPTERS
BC-123S
12V/1A
(Use with BC-191 or BC-193)
BC-123S*
BC-147S
12V/200mA
(Use with BC-192)
BC-147S*
BC-157S
12V/6.6A
(Use with BC-197)
BC-157S

* BC-123SA/BC-147SA for 120V AC. SE for 230V AC. SV for 240V AC.
CIGARETTE LIGHTER CABLE
CP-23L
(Use with BC-191 or BC-193)
CP-23L



DC POWER CABLES
OPC-515L
Power supply cable
(Use with BC-191, BC-192 or BC-193)
OPC-515L
OPC-656
DC power cable
(Use with BC-197)
OPC-656


SPEAKER-MICROPHONES
HM-171GP
GPS Microphone
HM-171GP
HM-158L
HM-158L
HM-159L_SC
HM-159L

HEADSETS
HS-94
Earhook type with boom microphone
(Use with OPC-2004)
HS-94
HS-95
Behind-the-head type
(Use with OPC-2004)
HS-95
HS-97
Throat microphone type
(Use with OPC-2004)
HS-97

ADAPTER CABLE
OPC-2004
OPC-2004



EARPHONE
SP-27
SP-27



BELT CLIP
MB-124
MB-124



STUBBY ANTENNAS
FA-SC56VS
150-162MHz
FA-SC56VS
FA-SC57VS
160-174MHz
FA-SC57VS
FA-SC73US
450-490MHz
FA-SC73US

CUT ANTENNAS
FA-SC61VC
136-174MHz
FA-SC61VC
FA-SC61UC
380-520MHz
FA-SC61UC


HIGH GAIN ANTENNAS
FA-SC62V
150-160MHz
FA-SC62V
FA-SC63V
155-165MHz
FA-SC63V


ANTENNAS
FA-SC25V
136-150MHz
FA-SC25V
FA-SC55V
150-174MHz
FA-SC55V
FA-SC01U
350-400MHz
FA-SC01U
FA-SC25U
400-430MHz
FA-SC25U
FA-SC57U
430-470MHz
FA-SC57U
FA-SC72U
470-520MHz
FA-SC72U

GENERAL



IC-F3103D
IC-F4103D
Frequency coverage
136-174MHz
350-400MHz
400-470MHz
450-520MHz
Number of channels
16 channels
Channel spacing
6.25/12.5/25kHz
Type of emission
16K0F3E, 11K0F3E, 4K00F1E/F1D
Current drain (approx.)
Tx High
1.3A
1.3A
Rx
Max. audio
400mA (Internal SP)
400mA (Internal SP)
Standby
90mA (Digital mode)
100mA (Digital mode)
Dimensions (W×H×D)
(Projections not included)
58×111.5×36.5mm (With BP-265)
Weight (approx.)
150g (Radio only)
320g
(With MB-124,
BP-265 & Ant.)
150g (Radio only)
310g
(With MB-124,
BP-265 & Ant.)

TRANSMITTER



IC-F3103D
IC-F4103D
Output power (at 7.5V DC)
5W, 2W, 1W
(Hi, L2, L1)
4W, 2W, 1W
(Hi, L2, L1)
Spurious emissions
70dB min.
Frequency stability
±1.0ppm
Audio harmonic distortion
(AF 1kHz 40% deviation)
0.5/0.8% typ. (W/N)
0.7/1.2% typ. (W/N)
FM Hum and noise
52/46dB typ. (W/N)
50/43dB typ. (W/N)

RECEIVER



IC-F3103D
IC-F4103D
Sensitivity
    (at 12dB SINAD)
    (Digital at 5% BER)

0.23μV typ.
0.18μV typ.

0.22μV typ.
0.18μV typ.
Adjacent channel selectivity
77/71dB typ. (W/N)
74/67dB typ. (W/N)
Spurious response rejection
90dB typ.
80dB typ.
Intermodulation rejection
75dB typ.
Audio output power
(at 5% distortion with 12Ω load)
800mW (typ., Internal speaker)

Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4 I

Low Temperature Operation

502.4 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

Ingress Protection Standards

Dust & Water

IP54 (Dust-protection and water resistant)


All stated specifications are subject to change without notice or obligation.
