iDAS REPEATER IC-FR5000 / IC-FR6000

Pasted Graphic 1logo_std_idaslogo_std_mil

UNIQUE TWO-IN-ONE REPEATERS

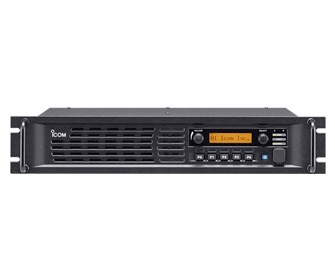

The IC-FR5000 series combines superior analog specifications with competitive cost performance. Its slim, rackmount design allows you to install two RF modules* in one unit. In addition, the built-in IDAS digital mode paves the way to a future digital migration now.
* Optional UR-FR5000/UR-FR6000 is required.
Two RF modules in one unit
ur-fr5000The IC-FR5000 series has an internal space for installing an optional RF unit, UR-FR5000 series. Two RF modules can be installed in a chassis reducing installation space, and increasing channel capacity. They can be programmed and operated independently.
19-inch rack mount design, 2U height low profile design
The IC-FR5000 series has a rack mount bracket and handles for installation in an industry standard 19-inch rack.
Multiple CTCSS and DTCS tone decode
The IC-FR5000 series detects multiple CTCSS and DTCS on a channel (up to 16 tones on a table) and downlinks (transmits) the received signal with a specified tone. This function is useful for sharing a channel with multiple groups.
Base station operation
The IC-FR5000 series has 5 programmable buttons, 12-digit dot-matrix display and 32 memory channels allowing you to use the repeater as a base station.
Other features
  • Programmable accessory connector (D-sub 25-pin) for connecting trunking controllers or other external devices
  • 5-Tone and DTMF encoder/decoder
  • CW ID transmitter
  • Normal and priority scan setting
  • Wide frequency coverage
  • 50W output power (at 50% duty operation)
  • Built-in audio compander
  • Optional voice scrambler UT-109R/UT-110R and built-in inversion type voice scrambler*
* Inversion type voice scrambler is not compatible with UT-109/UT-110 voice scrambler.

HAND MICROPHONE
HM-152
HM-152



DESKTOP MICROPHONE
SM-25
SM-25



EXTERNAL SPEAKER
SP-22
SP-22



CHANNEL MODULES
UR-FR5000
(136-174MHz,50W)
UR-FR5000
UR-FR5000
(400-470,450-520MHz,50W)
UR-FR6000


INTERNAL UNITS
UT-109_R
(For analog FM mode)
UT-109R
UT-110_R
(For analog FM mode)
UT-110R

General



IC-FR5000
IC-FR6000
Frequency coverage
(Varies according to version)
136–174 MHz
400–470 MHz
450–520 MHz
350-400MHz (Non - FCC)
Number of channels
32 ch
Channel spacing
(Varies according to version)
6.25/12.5/25 or 7.5/15/30 kHz
Type of emission
16K0F3E,
11K0F3E,
11K0F7E/D/W,
8K50F3E
(EXP version only),
4K00F1E/D,
4K00F3E
16K0F3E,
11K0F3E,
11K0F7E/D/W,
4K00F1E/D,
4K00F3E
Power supply requirement
13.6V DC
Current drain
(at 13.6V DC)
Tx High
15A
Rx
Stand-by
400mA*1
Max. audio
1900mA
Dimensions
(projections not included; W×H×D)
483×88×260 mm
19
132×31532×1014 in
Weight (approx.)
5.6kg; 12.3lb

*1 Repeater operation only.


Transmitter



IC-FR5000
IC-FR6000
RF output power (High)
50W
Spurious emissions
80dB
Frequency stability
±0.5ppm
Audio harmonic distortion
1% typical
40% deviation
FM Hum and Noise
52dB typ. (W)
49dB typ. (N)
50dB typ. (W)
45dB typ.
Digital FSK error

5% max.



Receiver



IC-FR5000
IC-FR6000
Sensitivity
FM at 12dB SINAD 0.25µV (typ.)
Digital at 5% BER 0.20μV (typ.)
Adjacent channel selectivity (W/N)
78/56dB typ.
Spurious response rejection
90dB typ.
Intermodulation rejection
78dB typ.
AF output power (at 5% distortion)
4.0W (typ.) with a 4Ω load

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-FR5000 IC-FR6000
Number of option slots
1
CTCSS/ DTCS
encoder
Available
decoder
Available
2-Tone
encoder
-
decoder
-
5-Tone
encoder
Available
decoder
Available
DTMF autodial
Available
DTMF decoder
Available
Voice Scrambler
Inversion
Available
Non-rolling
UT-109R
Rolling
UT-110R
 APCO P25 digital
-
 AES encryption
-
 DES encryption
-
IDAS digital
Available
 MPT 1327
Available*
 MDC 1200
-
 LTR™ trunking
Available*
 PassPort
Available*

* External controller required.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Vibration

514.5 I

Shock Functional

516.5 I


All stated specifications are subject to change without notice or obligation.
