iDAS REPEATER IC-FR5100 / IC-FR6100
UNIQUE TWO-IN-ONE REPEATERS
The IC-FR5100 series combines superior analog specifications with competitive cost performance. Its slim, rackmount design allows you to install two RF modules* in one unit. In addition, the built-in IDAS digital mode paves the way to a future digital migration now.
* Optional UR-FR5000/UR-FR6000 is required.
Two RF modules in one unit

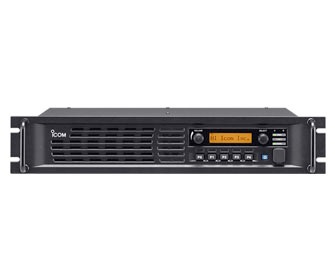

The IC-FR5100 series has an internal space for installing an optional RF unit, UR-FR5100 series. Two RF modules can be installed in a chassis reducing installation space, and increasing channel capacity. They can be programmed and operated independently.19-inch rack mount design, 2U height low profile design
The IC-FR5100 series has a rack mount bracket and handles for installation in an industry standard 19-inch rack.
Multiple CTCSS and DTCS tone decode
The IC-FR5100 series detects multiple CTCSS and DTCS on a channel (up to 16 tones on a table) and downlinks (transmits) the received signal with a specified tone. This function is useful for sharing a channel with multiple groups.
Base station operation
The IC-FR5100 series has 5 programmable buttons, 12-digit dot-matrix display and 32 memory channels allowing you to use the repeater as a base station.
25Watt 100% duty cycle operation
Employing a high stability ±0.5ppm oscillator and high performance power amplifier, the IC-FR5100 series provides a reliable 100% duty cycle operation at 25W output.
Other features
- Programmable accessory connector (D-sub 25-pin) for connecting trunking controllers or other external devices
- 5-Tone and DTMF encoder/decoder
- CW ID transmitter
- Normal and priority scan setting
- Wide frequency coverage
- Built-in audio compander
- Optional voice scrambler UT-109R/UT-110R and built-in inversion type voice scrambler*
HAND MICROPHONE
| HM-152 | | | |
| SM-25 | | | |
| SP-22 | | | |
| UR-FR5100 | (136-174MHz, 25W)
| UR-FR6100 | (400-470MHz, 25W) | |
| UT-109R | (For analog FM mode)
| UT-110R | (For analog FM mode) |
General
| IC-FR5100 | IC-FR6100 | |||||||||||||||||||||||||||||||||||||||
| Frequency coverage (Varies according to version) | 136–174 MHz | 400–470 MHz | |||||||||||||||||||||||||||||||||||||||
| Number of channels | 32 ch | Channel spacing (Varies according to version) | 6.25/12.5/20/25 kHz | Type of emission | 16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E/D, 4K00F3E | Power supply requirement | 13.2V DC | Current drain (at 13.6V DC) | Tx High | 7A | Rx | Stand-by | 400mA*1 | Max. audio | 1900mA | Dimensions (projections not included; W×H×D) | 483×88×260 mm 191⁄32×315⁄32×101⁄4 in | Weight (approx.) | 5.6kg; 12.3lb | ||||||||||||||||||||||
*1 FAN, LCD backlight off
Transmitter
| IC-FR5100 | IC-FR6100 | ||||||
| RF output power (High) | 25W | Spurious emissions | 0.25μW (≦1GHz) | Frequency stability | ±0.2kHz | ±0.5kHz | ||
| Audio harmonic distortion | 40% deviation | Digital FSK error | 5% max. | |||||
Receiver
| IC-FR5100 | IC-FR6100 | ||||||||||||
| Sensitivity | -10dBµ at 12dB SINAD | Adjacent channel selectivity (W/N) | 70/70/60dB min. | Spurious response rejection | 70dB min. | Intermodulation rejection | 70dB min. | AF output power (at 5% distortion) | 3.5W (typ.) with a 4Ω load | |||||
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-FR5100
IC-FR6100 | |
| Number of option slots | 1 | |
| CTCSS/ DTCS | encoder | Available | decoder | Available |
| 2-Tone | encoder | - | decoder | - |
| 5-Tone | encoder | Available | decoder | Available |
| DTMF autodial | Available | |
| DTMF decoder | Available | |
| Voice Scrambler | Inversion | Available | Non-rolling | UT-109R | Rolling | UT-110R |
| APCO P25 digital | - | |
| AES encryption | - | |
| DES encryption | - | |
| IDAS digital | Available | |
| MPT 1327 | Available* | |
| MDC 1200 | - | |
| LTR™ trunking | Available* | |
| PassPort | Available* | |
* External controller required.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
All stated specifications are subject to change without notice or obligation.
