AVIATOR 200
Introducing The SwiftBroadband Solution
For Small Aircraft
Thrane & Thrane is a pioneer in developing aeronautical
satellite communications solutions based on the Inmarsat system.
Our latest product keeps with this tradition of innovation by
addressing the needs of yet another segment of the aviation industry.
Thrane & Thrane is pleased to offer AVIATOR 200, a compact,
light-weight solution tailored for smaller aircraft.
Already a leader in answering the increasing demand for connectivity
within the business and VIP class of aircraft, Thrane & Thrane now
brings that same innovation and reliability to smaller airframes with
the AVIATOR 200.

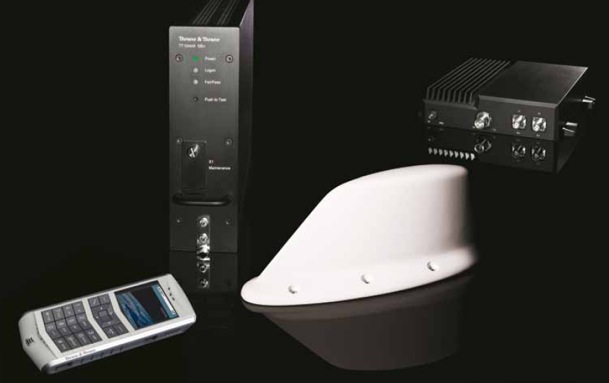

Based on the proven technology of the Thrane & Thrane SBU/HLD
hardware, the AVIATOR 200 is the perfect solution for smaller aircraft
with limited exterior space or specific weight requirements.
Capabilities:
The AVIATOR 200 System allows a wide range of in-flight
capability including:
• Internet Browsing
• Smart Phone Connectivity
• High Quality Low Cost Voice Services
• Streaming Video
Full Features – Compact Size
The Thrane & Thrane AVIATOR 200 is the lightest, most compact
airborne broadband solution on the market today. A perfect choice
for smaller airframes or cost-conscious operators looking to add the
convenience of in-flight broadband access. With reduced hardware
and installation costs, the AVIATOR 200 is everything you need to
stay connected no matter what you fly.
The Reliability You Need – Now More Economical
Than Ever
No matter what your mission, operation or itinerary is the
Thrane & Thrane AVIATOR 200 allows you to stay connected and
productive with speeds up to 200 kbps. The system provides the
proven Thrane & Thrane voice & data services plus a wide range
of embedded features such as:
• SwiftBroadband channel for simultaneous data and voice
• Extremely compact and lightweight
• VoIP connectivity
• Email with full attachments
• Internet access
• Smartphone connectivity
• AMBE 2 Voice Channel (Standard Voice)
• Built-in router for intelligent connectivity support and
multiple user support
• Built-in Ethernet switch for supporting numerous wired
laptops and/or EFBs
• Built-in wireless access point option for supporting numerous
wireless laptops and/or Smartphones
Flexibility, Affordability & Reliability
Being the lightest, most compact broadband system available
definitely has its advantages. The hardware itself is engineered
for unprecedented flexibility of use. This reduced weight and size
makes it ideal for smaller airframes or aircraft already equipped for
special missions, but would benefit from the additional capability it
delivers. Applications range from general aviation use to mission
specific military needs. Plus, powerful options allow the user to
tailor the system to their specific needs.
• Built-in Router
• Built-in WiFi access
Inmarsat Aeronautical Satellite
Communications Services
Inmarsat is a global satellite communications company operating
geostationary satellites to provide the most versatile and reliable
satellite network in the world.
SwiftBroadband
The Thrane & Thrane AVIATOR 200 system is engineered to
take advantage of the latest technologies like SwiftBroadband
for increased reliability and connectivity. The SwiftBroadband
Background Data and SwiftBroadband Low Cost Voice channel
allows users to access a shared data channel and a compressed
high quality voice channel at the same time
Smaller Antenna Means More Options
Previously, complete communications solutions have been
limited to larger aircraft due to high initial investment and large,
heavy antennas. These limitations are no longer an issue with the
innovative AVIATOR 200. The system utilizes the TT-3002A Low Gain
Jet Blade Antenna that further reduces weight and size concerns for
smaller airframes, making broadband data and high quality voice
services available to an even wider range of aircraft.
The AVIATOR 200 is an Inmarsat Class 15 (SB200)
system, supporting:
• Single Channel SwiftBroadband
• Packet Switched Services
• Background IP up to 200 kbps
• Streaming IP at 8 kbps or 16 kbps
• Operating down to 20 degree satellite elevation
TT-5040A
SwiftBroadband Unit (SBU)
Features
• IP packet or streaming SwiftBroadband data.
• Ethernet connectivity
• Bult-in router with six Eternet interfaces
• Built-in wireless access point
• Low weight and power consumption
• Compact 2 MCU size
• No forced cooling required
• Easy integration
Characteristics
TT-5040A SBU
Dimensions:
(L x W x H): 12.62” x 7.62” x 2.25”
(320.5 mm x 193.5 mm x 57.2 mm)
Mass: 6.2 lbs (2.8 kg)
Power: 28 V DC, 30 W typ. 106 W max.
Connectors: Rear: ARINC 404A
Front: RJ-45
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55,000 ft
DO-160E string: [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]
A[RB][ZC][RR]M[A3J33]XXAX
TT-5016A
High Power Amplifier, Low Noise
Amplifier and Diplexer (HLD)
Features
• Small size, low weight and low power
Consumption
• Powered through SBU
– no power wires to HLD required
• No forced cooling required
Characteristics
TT-5016A HLD
Dimensions: 8.98” x 7.87” x 1.97”
(L x W x H): (228.0 mm x 200.0 mm x 50.0 mm)
Mass: 5.7 lbs (2.6 kg)
Environmental: Temperature: -55 °C to +70 °C
Altitude: MSL to 55,000 ft
DO-160E string: [(A2)(F2)X]BBB[SCL]E[(Y)(W)]
XXFXZXXX[ZC][RR]M[A3J33]XXAX
Power: Powered through SBU
TT-5040A-001
Configuration Module (CM)
Features
• Stores system configuration parameters
• Located at the rear of the SBU
• Contains the SIM card
• Configured through SBU web interface
• Contains phone book
• CM may be removed/ inserted for easy
SBU exchange
Characteristics
TT-5040A-001 CM
Dimensions: 1.85” x 1.79” x 0.79”
(L x W x H): (47.0 mm x 45.5 mm x 20.0 mm)
Mass: 0.15 lb (70 g)
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55,000 ft
DO-160E string: [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]
A[RB][ZC][RR]M[A3J33]XXAX
TT-5040A-008 AVIATOR 200 Key
(LGA)
Features:
• Software key allowing system use with
Low Gain Antenna
TT-5040A-004
Wireless Antenna
Features
• Meet and exceed the requirements
of IEEE 802.11a/b/g
• Multi-band antenna (802.11a/b/g)
• Low profile housing
• TNC Connector
Characteristics
TT-5040A-004 Wireless Antenna
Dimensions: 4.7 x 0.48 x 0.5”
(L x W x H): (119.4 x 12.2 x 12.7 mm)
Mass: .063 lbs (28 g)
DO-160D string: [(A1)X]CAB[(SC)(RC1)]XWXXXXC
[AE]AZCTM[XXE1]XXA
TT-5624B
AVIATOR Wireless Handset
Features
• Handset with large color display
• Access to basic configuration and system status
• Noise cancellation
• Speaker for hands-free operation
• Headset jack
Characteristics
TT-5624B AVIATOR Wireless Handset
Dimensions: 6.10 x 2.17 x 1.04”
(L x W x H): (152.0 x 55.0 x 26.5 mm)
Mass: 0.39 lbs (175 g)
DO-160F string: [A4X]CXB[SB2M]XXXXXXA[(AX)
(BX)]A[RB][ZC][RS]M[XXXXX]
[XXXX]XAX
Environmental: Temperature: -15 °C to +45 °C
TT-5621B/TT-5622B
Aux. Handset and Cradle
Features
• Auxiliary handset and cradle
• 600 Ohm ETSI TBR 21 interface
• Adjustable ringer
• 10 memory locations (speed dial)
• Available in black or white
Characteristics
TT-5621B Handset
Dimensions: 7.87 x 2.05 x 1.24”
(L x W x H): (200 x 52 x 31.5 mm)
Mass: 0.49 lbs (220 g)
TT-5622B Cradle
Dimensions: 6.3 x 2.4 x 1.12”
(L x W x H): (160.5 x 61 x 28.4 mm)
Mass: 0.43 lbs (200 g)
DO-160D String: [A1X]CAB[(SMB2)(SM)(UFF1)]
XXXXXXAXXXB[RR]M[A2E3]XXA

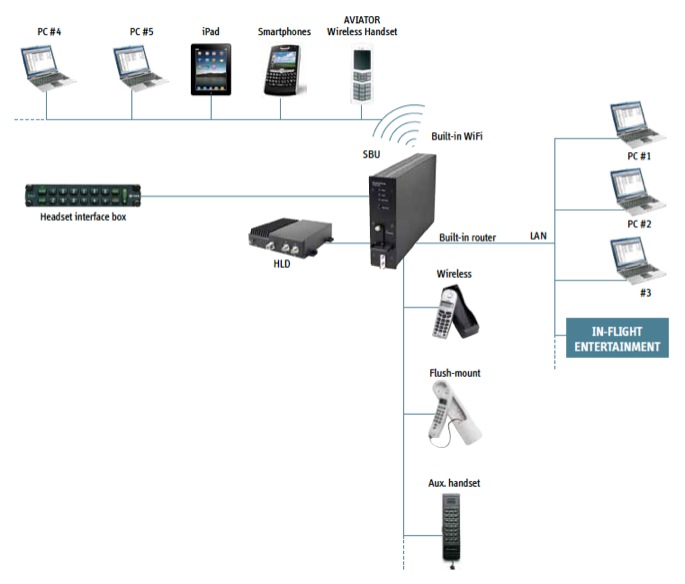

The AVIATOR 200 system is built around the proven technology of the Thrane & Thrane SwiftBroadband Unit (SBU). Offering an optional
built-in wireless access point, laptops, Smartphones and VoIP handsets are easily connected. Additionally, the built-in router option allows
the easy connection of up to 6 laptops. And, with (2) two-wire connections available, users can connect standard or wireless handsets,
headset interface boxes and much more. The detachable configuration modules contain all settings making it very easy to replace the High
power amplifier, Low noise amplifier and Diplexer (HLD) or SwiftBroadband Unit (SBU).
