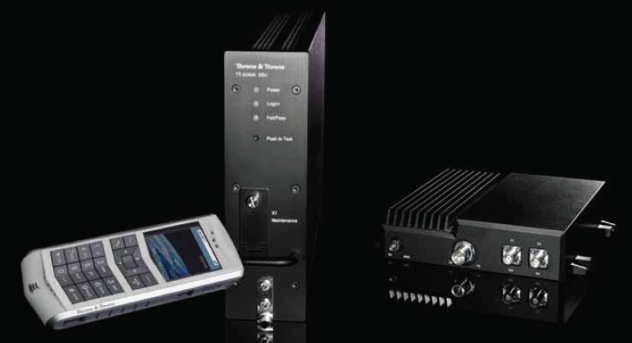

AVIATOR 350
More Bandwidth
Small in size but big on performance and features,
the Thrane & Thrane AVIATOR 350 is a Satcom
solution like no other.
Enhanced Functionality For Corporate, Government
& Military Applications
The AVIATOR 350 is a complete Satcom solution for virtually any
application, including business jet, government, military and special
missions. Delivering increased bandwidth with speeds up to 432
kbps, the AVIATOR 350 delivers quality voice and data services.
The AVIATOR 350 allows the use of enhanced features like
Inmarsat’s SB X-Stream service through a High Gain Antenna (HGA).
Other embedded features of the system include:
• SwiftBroadband channel for simultaneous data and voice
• Extremely compact and lightweight
• VoIP connectivity
• Internet access
• Email with full attachments
• Fax capable
• Smartphone connectivity
• Built-in router option for intelligent connectivity support
and multiple user support
• Built-in Ethernet switch for supporting numerous wired
laptops and/or EFBs
• Built-in wireless access point option for supporting numerous
wireless laptops and/or smartphones
• Built-in PBX for supporting numerous handsets and in-plane calls
• ARINC 741/781 antenna compatibility
• ISDN connectivity
• Supports all current standards for secure voice and data
transmission (FNBDT, STE, STU, HAIPE, etc.)

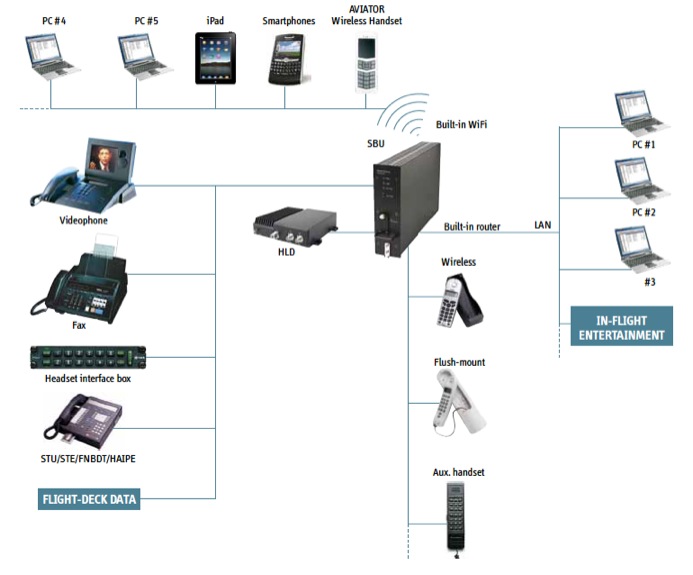

The AVIATOR 350 system has many interfaces and possibilities
The core unit of Thrane & Thrane’s SwiftBroadband systems, the SwiftBroadband Unit (SBU), has an optional built-in wireless access point for
easy connection of laptops, Smartphones or VoIP handsets. The optional built-in router makes it easy to connect up to 6 laptops and the ISDN
interface can be connected to phones, routers, PCs or secure devices. Two 2-wire interfaces enable the connection of standard or wireless
handsets, fax machines, headset interface boxes etc.
The detachable configuration modules contain all settings making it very easy to replace the High power amplifier, Low noise amplifier
and Diplexer (HLD) or SwiftBroadband Unit (SBU). ARINC 741/781 compatibility ensures a straightforward interface to many High Gain
(HGA) antennas.
Enhanced Capability, Full Functionality
The Thrane & Thrane AVIATOR 350 is a complete cabin solution that
brings all the functionality you need for a wide range of applications
such as corporate, government, military or special missions use.
Stay connected with the full scope of services including internet
access, e-mail, VPN, fax and telephony. Other features include:
• Built-in PBX
• Built-in Router (Optional)
• Built-in Ethernet switch
• Built-in WiFi access point (Optional)
Inmarsat Aeronautical Satellite
Communications Services
Inmarsat is a global satellite communications company operating
geostationary satellites to provide the most versatile and reliable
satellite network in the world.
SwiftBroadband
The Thrane & Thrane AVIATOR 350 system is engineered to
take advantage of the latest communication technologies
like SwiftBroadband for increased functionality, reliability
and connectivity. The SwiftBroadband Background Data and
SwiftBroadband Low Cost Voice channel allow users to access
a shared data channel and a compressed high quality voice
channel at the same time.
The AVIATOR 350 is an Inmarsat Class 6 System that supports:
• Single Channel SwiftBroadband
• Circuit-switched standard voice
• Background IP up to 432 kbps
• Streaming IP at 8/16/32/64/128 kbps
• SB X-Stream services
• ISDN service or 3.1 kHz audio
High Gain Antenna (HGA)
For users requiring the highest performance from their
SwiftBroadband service, the AVIATOR 350 system utilizes an HGA
antenna providing data rates up to 432 kbps. For more information
on antenna options available, please contact your Thrane & Thrane
sales representative.
SB X-Stream Service
The Inmarsat SB X-Stream service provides streaming data at rates above
256Kbps, enabling higher quality of service and more data to be streamed
at a faster rate, supporting a wide-range of applications within business,
military and government sectors. For more information please contact
your Thrane & Thrane sales representative
TT-5040A
SwiftBroadband Unit (SBU)
Features
• IP packet or streaming SwiftBroadband data.
• Ethernet connectivity
• Bult-in router with six Eternet interfaces
• Built-in wireless access point
• Low weight and power consumption
• Compact 2 MCU size
• No forced cooling required
• Easy integration
Characteristics
TT-5040A SBU
Dimensions:
(L x W x H): 12.62” x 7.62” x 2.25”
(320.5 mm x 193.5 mm x 57.2 mm)
Mass: 6.2 lbs (2.8 kg)
Power: 28 V DC, 30 W typ. 106 W max.
Connectors: Rear: ARINC 404A
Front: RJ-45
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55,000 ft
DO-160E string: [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]
A[RB][ZC][RR]M[A3J33]XXAX
TT-5016A
High Power Amplifier, Low Noise
Amplifier and Diplexer (HLD)
Features
• Small size, low weight and low power
Consumption
• Powered through SBU
– no power wires to HLD required
• No forced cooling required
Characteristics
TT-5016A HLD
Dimensions: 8.98” x 7.87” x 1.97”
(L x W x H): (228.0 mm x 200.0 mm x 50.0 mm)
Mass: 5.7 lbs (2.6 kg)
Environmental: Temperature: -55 °C to +70 °C
Altitude: MSL to 55,000 ft
DO-160E string: [(A2)(F2)X]BBB[SCL]E[(Y)(W)]
XXFXZXXX[ZC][RR]M[A3J33]XXAX
Power: Powered through SBU
TT-5040A-001
Configuration Module (CM)
Features
• Stores system configuration parameters
• Located at the rear of the SBU
• Contains the SIM card
• Configured through SBU web interface
• Contains phone book
• CM may be removed/ inserted for easy
SBU exchange
Characteristics
TT-5040A-001 CM
Dimensions: 1.85” x 1.79” x 0.79”
(L x W x H): (47.0 mm x 45.5 mm x 20.0 mm)
Mass: 0.15 lb (70 g)
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55,000 ft
DO-160E string: [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]
A[RB][ZC][RR]M[A3J33]XXAX
TT-5040A-008 AVIATOR 200 Key
(LGA)
Features:
• Software key allowing system use with
Low Gain Antenna
TT-5040A-004
Wireless Antenna
Features
• Meet and exceed the requirements
of IEEE 802.11a/b/g
• Multi-band antenna (802.11a/b/g)
• Low profile housing
• TNC Connector
Characteristics
TT-5040A-004 Wireless Antenna
Dimensions: 4.7 x 0.48 x 0.5”
(L x W x H): (119.4 x 12.2 x 12.7 mm)
Mass: .063 lbs (28 g)
DO-160D string: [(A1)X]CAB[(SC)(RC1)]XWXXXXC
[AE]AZCTM[XXE1]XXA
TT-5624B
AVIATOR Wireless Handset
Features
• Handset with large color display
• Access to basic configuration and system status
• Noise cancellation
• Speaker for hands-free operation
• Headset jack
Characteristics
TT-5624B AVIATOR Wireless Handset
Dimensions: 6.10 x 2.17 x 1.04”
(L x W x H): (152.0 x 55.0 x 26.5 mm)
Mass: 0.39 lbs (175 g)
DO-160F string: [A4X]CXB[SB2M]XXXXXXA[(AX)
(BX)]A[RB][ZC][RS]M[XXXXX]
[XXXX]XAX
Environmental: Temperature: -15 °C to +45 °C
TT-5621B/TT-5622B
Aux. Handset and Cradle
Features
• Auxiliary handset and cradle
• 600 Ohm ETSI TBR 21 interface
• Adjustable ringer
• 10 memory locations (speed dial)
• Available in black or white
Characteristics
TT-5621B Handset
Dimensions: 7.87 x 2.05 x 1.24”
(L x W x H): (200 x 52 x 31.5 mm)
Mass: 0.49 lbs (220 g)
TT-5622B Cradle
Dimensions: 6.3 x 2.4 x 1.12”
(L x W x H): (160.5 x 61 x 28.4 mm)
Mass: 0.43 lbs (200 g)
DO-160D String: [A1X]CAB[(SMB2)(SM)(UFF1)]
XXXXXXAXXXB[RR]M[A2E3]XXA
