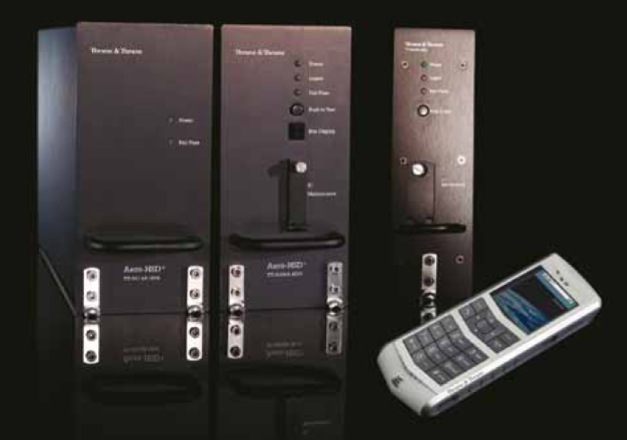

AVIATOR 700
Cockpit an Cabin Connectivity
The AVIATOR 700 is a complete aeronautical
communications solution. It offers satellite
transmitted phone, fax, cockpit data and high
speed data services in one system, a solution
that is smaller and lighter than any comparable
satcom solution.
A Complete Solution For Multiple Applications
Now access to the Inmarsat Aero H+ and Swiftbroadband services
are available in one powerful, integrated system. Designed for
multiple application flexibility, the AVIATOR 700 is engineered for
use in business/VIP, government and military aircraft platforms.
From cockpit to cabin, the AVIATOR 700 delivers the features and
functionality you need.
Cabin Services
• Data rates up to 432 kbps
• VoIP connectivity
• Wired and wireless web browsing and corporate VPN access
• Wireless use of PDA and Smartphones for email services
• SwiftBroadband channel for simultaneous data and voice
• Built-in router for intelligent connectivity support and
multiple user support
• Built-in Ethernet switch for supporting multiple wired laptops
• Built-in wireless access point option for supporting numerous
wireless laptops and/or smartphones
• Built-in PBX – for supporting multiple handsets
• ISDN connectivity
Cockpit Services
• MCDU and cockpit audio interface
• Cockpit data channel
• AFIS/ACARS
• Flight-deck data link
Light in weight, not in possibilities
Installing communications equipment in a jet plane often means
giving up on other options. Not so with the AVIATOR 700, which is
no more than 8 MCU altogether. It is perfect to replace older
and heavier systems, freeing up space for additional payload
or fuel savings. Despite its small footprint the AVIATOR 700 is a
no-compromise solution.

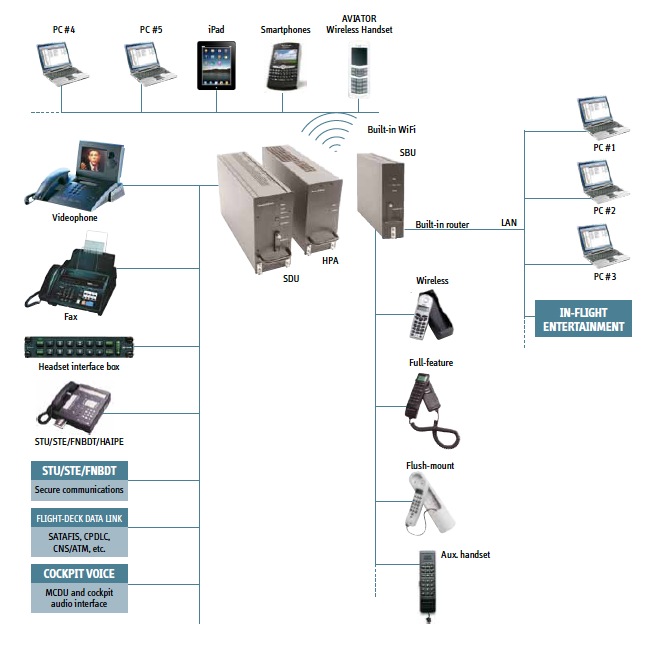

The AVIATOR 700 system has many interfaces and possibilities
Inmarsat aeronautical satellite
communications services
Inmarsat is a global satellite communications company operating
geostationary satellites to provide the most versatile and reliable
satellite network in the world. Inmarsat’s primary aeronautical
service offers phone, fax and data services for passenger,
administrative and Air Traffic Control communications on board
commercial, corporate and general aviation aircraft worldwide.
SwiftBroadband
The Thrane & Thrane AVIATOR 700 system is engineered to
take advantage of the latest technologies like SwiftBroadband
for increased reliability and connectivity. The SwiftBroadband
Background Data and Standard Voice channel allows users to access
a shared data channel and a compressed high quality voice channel
at the same time.
The AVIATOR 700 is an Inmarsat class 6 system that supports:
• Circuit-switched standard voice
• Background IP up to 432 kbps
• Streaming IP at 8/16/32/64/128 kbps
• SB X-Stream services
• ISDN service or 3.1 kHz audio
Swift64 (for fallback)
The Inmarsat Swift64 service offers fast data transmission.
It provides both the high quality and speed of a full ISDN service
and the cost effective flexibility of a full IP service (MPDS). For VIP,
corporate and government users, this combination offers unmatched
access to modern communications. The Swift64 channels of the
Aero-HSD+ works equally well with both. ISDN traffic is charged by
the length of time the user remains on-line, whereas MPDS charges
are “per megabit”.
High Gain Antenna (HGA)
For users requiring the highest performance from their
SwiftBroadband service, the AVIATOR 700 system utilizes an
HGA antenna providing data rates up to 432 kbps. For more
information on antenna options available, please contact your
Thrane & Thrane sales representative.
CABIN: AVIATOR 700 offers the ability to access a true IP-based
network in flight with Inmarsat’s I-4 Satellite Constellation
facilitating global voice and data calls. With AVIATOR 700 users
can make phone calls, connect their Smartphones, log-on to
corporate networks, e-mail, surf the internet or send a fax all
while in flight.
COCKPIT: Thrane & Thrane’s AVIATOR 700 seamlessly brings critical
safety, navigational and performance data directly into the cockpit,
reducing pilot workload, increasing efficiency and overall
operational safety. Among the services are: OCL (Ocean Clearance),
PDC (Pre-Departure Clearance) and D-ATIS (Digital-Automatic
Terminal Information Service). AVIATOR 700 is also ready for future
CNS/ATM applications.
SB X-Stream Service
The Inmarsat SB X-Stream service provides streaming data at
rates above 256Kbps, enabling higher quality of service and more
data to be streamed at a faster rate, supporting a wide range of
applications within business, military and government sectors.
For more information please contact your Thrane & Thrane
sales representative.
TT-5035A
Satellite Data Unit (SDU)
Features
• Seamless integration of Aero-H+ and Swift64
services into one unit
• Low weight and power consumption
• Compact 3 MCU size
• No forced cooling required
• Built-in CTU connects up to six (standard or
wireless) handsets incl. two 2-wire
(RJ-11/POTS) interfaces - no converter box
required. Features such as intercom,
conference calling, call forwarding etc.
are all included
• Detachable Configuration Module (CM)
• Built-In Test Equipment (BITE)
• ARINC 429 for IRS, AHRS, ACARS, MCDU, CMU,
AFIS, CPDF
• RS-232C port for Portable Data
Loader/Configuration Management Terminal
(PDL/CMT)
• Ethernet connectivity
• ISDN connectivity
• RS422 connectivity
Characteristics
TT-5035A SDU
Dimensions: ARINC 404A 3/8 ATR short,
3 MCU.
12.62” x 3.56” x 7.62”
(320.5 mm x 90.4 mm x 193.5 mm)
Mass: 7.2 lbs (3.5 kg)
Power: 28 V DC, 30 W typ. 50 W max.
Includes handsets, DLNA,
interfaces.
Connectors: Rear: ARINC 404A
Front: SUB-D 15 Female.
Environmental: Temperature: -25 °C to +55 °C
Altitude: MSL to 55,000 ft
DO-160D string: DO-160D string: [(A1)(F1)X]
CAB[(S2B2)(SM)]EXXXXXZ[A()B]
A[A()B]Z[RR]M[A3E3]XXA
TT-5014A
High Power Amplifier (HPA)
Features
• Small size (3 MCU), low weight and
low power consumption
• No external forced cooling required
• Installation outside pressure area
Characteristics
TT-5014A HPA
Dimensions: ARINC 404A 3/8 ATR short, 3 MCU.
(L x W x H) 12.62” x 3.66” x 7.79”
(320.5 mm x 93.0 mm x 193.5 mm)
Mass: 11.2 lbs (5.1 kg)
Environmental: Temperature: -55 °C to +70 °C
Altitude: MSL to 55,000 ft
DO160D string: [(A2)(F2)Z]BBB[SCL]EXXXX
XZ[A()B]A[A()B]Z[RR]M[A3E3]XXA
TT-5040A
SwiftBroadband Unit (SBU)
Features
• IP packet or steaming SwiftBroadband data.
• Ethernet connectivity
• ISDN connectivity
• Built-in router with six Ethernet interfaces
• Built-in wireless access point
• Low weight and power consumption
• Compact 2 MCU size
• No forced cooling required
• Easy integration
Characteristics
TT-5040A SBU
Dimensions:
(L x W x H) 12.62” x 7.62” x 2.25”
(320.5 mm x 193.5 mm x 57.2 mm)
Mass: 6.2 lbs (2.8 kg)
Power: 28 V DC, 30 W typ. 106 W max.
Connectors: Rear: ARINC 404A
Front: RJ-45
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55,000 ft
DO-160E string: [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]
A[RB][ZC][RR]M[A3J33]XXAX
TT-5038A-002 Tx Coupler for SBU
Dimensions: 4.20” x 2.25” x 0.88”
(L x W x H) (106.6 mm x 57.1 mm x 22.4 mm)
including connectors
Mass: 0.50 lbs (230 g)
Connectors: 3 x N-connectors, Female
Environmental: Temperature: -25°C to +55°C
Altitude: 55,000 ft
DO-160D string: [(A1)(F1)X]CBB[SCL]EXXXXX
ZXXXZ[RR]M[A3E3]XXA
TT-5038A-003 Rx Power Splitter for SBU
Dimensions: 3.42 x 2.00 x 0.75”
(L x W x H) (86.8 x 50.8 x 19.1 mm)
including connectors
Mass: 0.32 lbs (146 g)
Connectors: 3 x N-connectors, Female
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55,000 ft
DO-160D string: [(A1)(F1)X]CBB[SCL]EXXXXX
ZXXXZ[RR]M[A3E3]XXA
TT-5035A-001/TT-5040A-001
Configuration Module (CM)
Features
• Located at the rear of the SDU and SBU, the
Configuration Modules contain all set-up and
customer information
• The Configuration Modules may be
removed/inserted for easy SDU, HSU or SBU
exchange - ensuring quick turn-around and less
time on the ground.
Characteristics
TT-5035A-001 CM
Dimensions: 1.85” x 1.79” x 0.79”
(L x W x H) (47.0 mm x 45.5 mm x 20.0 mm)
Mass: 0.15 lb (70 g)
Characteristics
TT-5040A-001 CM
Dimensions: 1.85” x 1.79” x 0.79”
(L x W x H) (47.0 mm x 45.5 mm x 20.0 mm)
Mass: 0.15 lb (70 g)
DO-160E string: [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]
A[RB][ZC][RR]M[A3J33]XXAX
TT-5624B
AVIATOR Wireless Handset
Features
• Handset with large color display
• Access to basic configuration and
system status
• Noise cancellation
• Speaker for hands-free operation
• Headset jack
Characteristics
TT-5624B AVIATOR Wireless Handset
Dimensions: 6.10” x 2.17” x 1.04”
(L x W x H): (152.0 mm x 55.0 mm x 26.5 mm)
Mass: 0.39 lbs (175 g)
DO-160F string: [A4X]CXB[SB2M]XXXXXXA[(AX)
(BX)]A[RB][ZC][RS]M[XXXXX]
[XXXX]XAX
Environmental: Temperature: -15 °C to +45 °C
TT-5626B
AVIATOR Wireless Handset Cradle
Features
• Charges AVIATOR Wireless Handset
• 28 VDC
Characteristics
TT-5626A AVIATOR Wireless Handset Cradle
Dimensions: 6.97” x 2.73” x 2.13”
(L x W x H): (177.0 mm x 60.3 mm x 54.0 mm)
Mass: 0.33 lbs (150 g)
DO-160F string: [A4X]CXB[SB2M]XXXXXXA[(AX)
(BX)]A[RB][ZC][RS]M[XXXXX]
[XXXX]XAX
Environmental: Temperature: -15 °C to +45 °C
TT-5620A/TT-5622A
Full-Feature Handset and Cradle
Features
• Handset with 2 x 12 character backlit LCD
for configuration and system status
• Cradle with RJ-11/POTS socket for direct
connection to fax, PC modem etc.
• 4-wire and RS-485 interface
• 28 V DC/0.15 A from SDU
• Speaker for hands-free operation
• Available in black or white
Characteristics
TT-5620A Handset
Dimensions: 7.87” x 2.05” x 1.24”
(L x W x H) (200 mm x 52 mm x 31.5 mm)
Mass: 0.68 lbs (310 g)
TT-5622A cradle
Dimensions: 6.3” x 2.4” x 1.12”
(L x W x H) (160.5 mm x 61 mm x 28.4 mm)
Mass: 0.60 lbs (270 g)
DO-160C string: A1-BA[MNB]XXXXXXAXXXB
[UR]ZXXE3XX
TT-5621B/TT-5622B
Aux. Handset and Cradle
Features
• Auxiliary handset and cradle
• 600 Ohm ETSI TBR 21 interface
• Adjustable ringer
• 10 memory locations (speed dial)
• Available in black or white
Characteristics
TT-5621B Handset
Dimensions: 7.87” x 2.05” x 1.24”
(L x W x H) (200 mm x 52 mm x 31.5 mm)
Mass: 0.49 lbs (220 g)
TT-5622B Cradle
Dimensions: 6.3” x 2.4” x 1.12”
(L x W x H) (160.5 mm x 61 mm x 28.4 mm)
Mass: 0.60 lbs (270 g)
DO-160C string: [A1X]CAB[(SMB2)(SM)(UFF1)]
XXXXXXAXXXB[RR]M[A2E3]XXA
