AERO HSD+
The Aero-HSD+ is a complete aeronautical
communications solution. It offers satellite
transmitted phone, fax, cockpit data and high
speed data services in one system, a solution
that is smaller and lighter than any comparable
satcom solution.
Features
The Aero-HSD+ from Thrane & Thrane gives business and VIP jet
users access to the Inmarsat Aero-H+ and Swift64 services in one
integrated system. It is the most powerful airborne satcom system
available today.
• Unique multi-channel solution, integrating the Inmarsat Aero-H+
and Swift64 services
• Extremely compact and light-weight
• Two channels for voice, fax and PC modem data
allows simultaneous phone and fax or two simultaneous
phone conversations
• One channel for global cockpit data (AFIS/ACARS)
• Ready for the future "free flight" environment known as CNS/ATM
• Fast data transmission at up to 64 kbps
• Optional Dual Swift64 providing 128 kbps
• Pay either by the minute or by the bit
• Ethernet for in flight network
• ARINC 741 antenna compatibility
• Supports all current standards for secure voice
and data transmission (FNBDT, STE, STU)
Light in weight, not in possibilities
Installing communication equipment in a jet plane often means
giving up on other options. Not so with the Aero-HSD+, which is no
more than 6 MCU altogether. It is thus perfect to replace older and
heavier systems, thus freeing up space for additional payload or fuel
savings. Despite its small footprint the Aero-HSD+ is a no-compromise
solution for the demanding business jet user giving access to:
• Phone and fax services
• E-mail servers
• Large file transfers
• Internet browsing
• Videoconferencing and streaming
• Corporate servers via VPN
Inmarsat aeronautical satellite
communication services
Inmarsat is a global satellite communications system based on
geostationary satellites orbiting along the Equator. Inmarsat
provides fast and reliable contact through a worldwide network
of Land and Ground Earth Stations, which can be reached from
any destination except the extreme North and South Poles.
Aero-H+
Inmarsat's primary aeronautical service offers phone, fax and
data services for passenger, administrative and Air Traffic Control
communications on board commercial, corporate and general
aviation aircraft worldwide. Aero-HSD+ incorporates three Aero-H+
channels: two channels for global voice, fax and PC modem data
and one channel for global packet data (cockpit communications).
Swift64
The Inmarsat Swift64 service offers fast data transmission. It provides
both the high quality and speed of a full ISDN service and the cost
effective flexibility of a full IP service (MPDS). For VIP, corporate and
government users, this combination offers unmatched access to
modern communications. The Swift64 channels of the Aero-HSD+
works equally well with both.
Swift64 Mobile ISDN
The Integrated Services Digital Network (ISDN) offers up to 64 kbps
per channel for voice, G4 fax, data communications etc. ISDN is the
preferred option for transmitting larger files, such as compressed
video, digital images or graphics. ISDN traffic is charged by the
length of time the user remains on-line.
Swift64 Mobile MPDS
The Mobile Packet Data Service (MPDS) offers up to 64 kbps of
full TCP/IP connectivity sharing the channel. MPDS charges "per
megabit", which means that you are charged only for the amount
of data transmitted – not for the time you remain connected.
Specifically designed for fast, short-burst and inexpensive data
transmissions, MPDS is ideal for e-mail, Internet and airborne
IP servers.

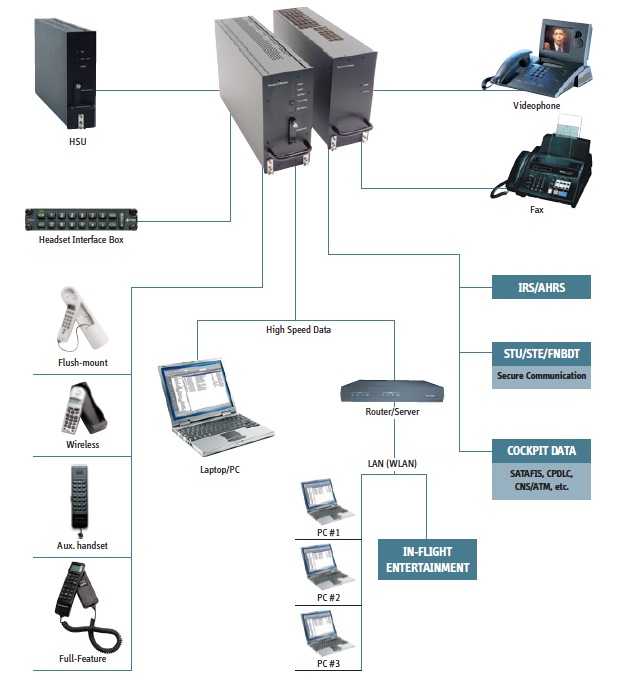

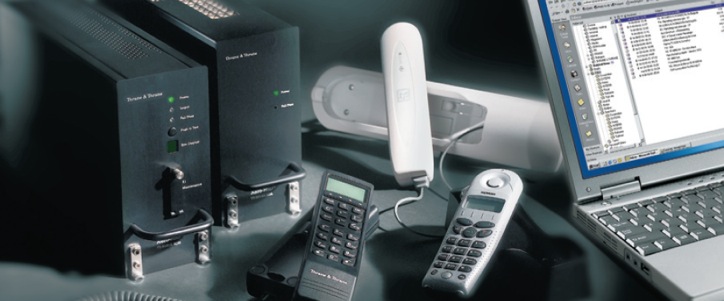

Configuration
The core of the standard Aero-HSD+ solution are a Satellite Data Unit and a High Power Amplifier. It has a built-in cabin telephone unit allowing
you to connect up to six handsets (standard or wireless), and two RJ-11 connectors for connecting fax machines, PC modems, headset interface
boxes etc. ISDN, Ethernet and Serial Interfaces secure easy connections directly to laptop PC's or a router/server. The detachable configuration
module contains all settings. This makes it very easy to replace or upgrade the satellite data unit (SDU) or the optional high-speed unit (HSU).
ARINC 741 compatibility ensures a straightforward interface to all current high gain antennas.
TT-5035A
Satellite Data Unit (SDU)
Features
• Seamless integration of Aero-H+ and Swift64
services into one unit
• Low weight and power consumption
• Compact 3 MCU size
• No forced cooling required
• Built-in CTU connects up to six (standard or
wireless) handsets incl. two 2-wire
(RJ-11/POTS) interfaces - no converter box
required. Features such as intercom,
conference calling, call forwarding etc.
are all included
• Detachable Configuration Module (CM)
• Built-In Test Equipment (BITE)
• ARINC 429 for IRS, AHRS, ACARS, MCDU, CMU,
AFIS, CPDF
• RS-232C port for Portable Data
Loader/Configuration Management Terminal
(PDL/CMT)
• Ethernet connectivity
• ISDN connectivity
• RS422 connectivity
Characteristics
TT-5035A SDU
Dimensions: ARINC 404A 3/8 ATR short,
3 MCU.
12.62” x 3.56” x 7.62”
(320.5 mm x 90.4 mm x 193.5 mm)
Mass: 7.2 lbs (3.5 kg)
Power: 28 V DC, 30 W typ. 50 W max.
Includes handsets, DLNA,
interfaces.
Connectors: Rear: ARINC 404A
Front: SUB-D 15 Female.
Environmental: Temperature: -25 °C to +55 °C
Altitude: MSL to 55,000 ft
DO-160D string: DO-160D string: [(A1)(F1)X]
CAB[(S2B2)(SM)]EXXXXXZ[A()B]
A[A()B]Z[RR]M[A3E3]XXA
TT-5014A
High Power Amplifier (HPA)
Features
• Small size (3 MCU), low weight and
low power consumption
• No external forced cooling required
• Installation outside pressure area
Characteristics
TT-5014A HPA
Dimensions: ARINC 404A 3/8 ATR short, 3 MCU.
(L x W x H) 12.62” x 3.66” x 7.79”
(320.5 mm x 93.0 mm x 193.5 mm)
Mass: 11.2 lbs (5.1 kg)
Environmental: Temperature: -55 °C to +70 °C
Altitude: MSL to 55,000 ft
DO160D string: [(A2)(F2)Z]BBB[SCL]EXXXX
XZ[A()B]A[A()B]Z[RR]M[A3E3]XXA
TT-5035A-001
Configuration Module (CM)
Features
• Located at the rear of the SDU and SBU, the
Configuration Modules contain all set-up and
customer information
• The Configuration Modules may be
removed/inserted for easy SDU, HSU or SBU
exchange - ensuring quick turn-around and less
time on the ground.
Characteristics
TT-5035A-001 CM
Dimensions: 1.85” x 1.79” x 0.79”
(L x W x H) (47.0 mm x 45.5 mm x 20.0 mm)
Mass: 0.15 lb (70 g)
Characteristics
TT-5040A-001 CM
Dimensions: 1.85” x 1.79” x 0.79”
(L x W x H) (47.0 mm x 45.5 mm x 20.0 mm)
Mass: 0.15 lb (70 g)
DO-160E string: [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]
A[RB][ZC][RR]M[A3J33]XXAX
TT-5620A/TT-5622A
Full-Feature Handset and Cradle
Features
• Handset with 2 x 12 character backlit LCD
for configuration and system status
• Cradle with RJ-11/POTS socket for direct
connection to fax, PC modem etc.
• 4-wire and RS-485 interface
• 28 V DC/0.15 A from SDU
• Speaker for hands-free operation
• Available in black or white
Characteristics
TT-5620A Handset
Dimensions: 200 x 52 x 47,5 mm
(L x W x H)
Mass: 0.68 lbs (310 g)
TT-5622A cradle
Dimensions: 160.5 x 61 x 28.4 mm
(L x W x H)
Mass: 0.60 lbs (270 g)
DO-160C string: A1-BA[MNB]XXXXXXAXXXB
[UR]ZXXE3XX
TT-5621B/TT-5622B
Aux. Handset and Cradle
Features
• Auxiliary handset and cradle
• 600 W ETSI TBR 21 interface
• Adjustable ringer
• 10 memory locations (speed dial)
• Stand-alone use (i.e. no cradle)
• Available in black or white
Characteristics
TT-5621B Handset
Dimensions: 200 x 52 x 47,5 mm
(L x W x H)
Mass: 0.49 lbs (220 g)
TT-5622B Cradle
Dimensions: 160.5 x 61 x 28.4 mm
(L x W x H)
Mass: 0.43 lbs (200 g)
DO-160D string: [A1X]CAB[(SMB2)(SM)(UFF1)]
XXXXXXAXXXB[RRR]M[A2E3]
XXA
OPTIONAL EQUIPMENT
TT-5012A
Diplexer/Low Noise Amplifier
(DLNA)
Features
• Exceeds ARINC741 Type A diplexer
specifications
• 42 dB LNA gain
Characteristics
TT-5012A DLNA
Dimensions: Flatpack 268,7 x 194 x 49,5 mm
(L x W x H)
Mass: 5.8 lbs (2,6 kg)
DC power: <1.6 W from SDU via RX coax.
TX Port-to-Antenna loss:
<1 dB
Environmental: Temperature: -55 °C to +70 °C
Altitude: MSL to 55,000 ft
DO-160C string: [A2F2]-BA[CLY]XXXXXXA
[AB]A[AB]Z[UR]ZA3E2XX
General: DC feed through from TX port
to antenna port
TT-5038A
High Speed Unit (HSU)
Features
• Additional High Speed Data channel based
on the Swift64 Services
• Low weight and power consumption
• Compact 2 MCU size
• No forced cooling required
• Easy integration
Characteristics
TT-5038A HSU
Dimensions: ARINC404A 3/8 ATR Short,
2 MCU (320,5 x 57,1 x 193,5 mm)
Mass: 4,63 lbs (2,1 kg)
Power: 28 V DC, 13 W typ. 23 W max.
Connectors: Rear: ARINC 404A
Front: SUB-D 9 Female
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55.000 ft
DO-160D string: [(A1)(F1)X]CBB[(S2B2)(SM)]
EXXXXXZ[A()B]A[A()B]Z[RR]
M[A3E3]XXA
TT-5038A-002 Tx
Coupler for HSU
Dimensions: 106.6 x 57.1 x 22.4 mm
including connectors
(L x W x H)
Mass: 0.50 lbs (230 g)
Connectors: 3 x N-connectors, Female
Environmental: Temperature: -25°C to +55°C
Altitude: 55,000 ft
DO-160D string: [(A1)(F1)X]CBB[SCL]EXXXXX
ZXXXZ[RR]M[A3E3]XXA
TT-5038A-003 Rx
Power Splitter for HSU
Dimensions: 86.8 x 50.8 x 19.1 mm
including connectors
(L x W x H)
Mass: 0.32 lbs (146 g)
Connectors: 3 x N-connectors, Female
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55,000 ft
DO-160D string: [(A1)(F1)X]CBB[SCL]EXXXXX
ZXXXZ[RR]M[A3E3]XXA
