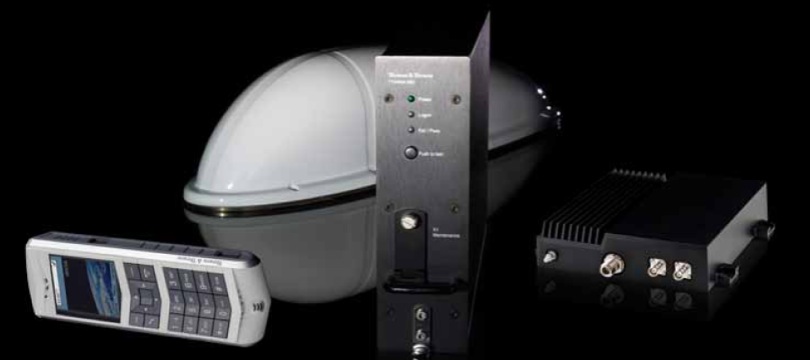

AVIATOR 300
The AVIATOR 300 from Thrane & Thrane is a
compact, lightweight system that offers cost
effective SwiftBroadband capabilities to the widest
range of airframes flying today. Built with a full
range of features and options, the AVIATOR 300
gives you the flexibility you need, no matter what
your mission profile calls for.
Low Cost Solution For Corporate, Military &
Government Applications
The Thrane & Thrane AVIATOR 300 delivers unprecedented
versatility for virtually any application. With speeds up to 332 kbps,
the system is a complete voice and data solution for Corporate,
Military, Government & Special Missions applications that comes
with a range of embedded features such as:
• SwiftBroadband channel for simultaneous data and voice
• Extremely compact and lightweight
• VoIP connectivity
• Email with full attachments
• Internet access
• Fax capable
• Smartphone connectivity
• Built-in router option for intelligent connectivity support
and multiple user support
• Built-in Ethernet switch for supporting numerous wired
laptops and/or EFBs
• Built-in wireless access point option for supporting numerous
wireless laptops and/or Smartphones
• Built-in PBX for supporting numerous handsets and in-plane calls
• ARINC 741/781 antenna compatibility
• ISDN connectivity (down to 45 degrees elevation)
• Supports all current standards for secure voice and data
transmission (FNBDT, STE, STU, HAIPE, etc.)

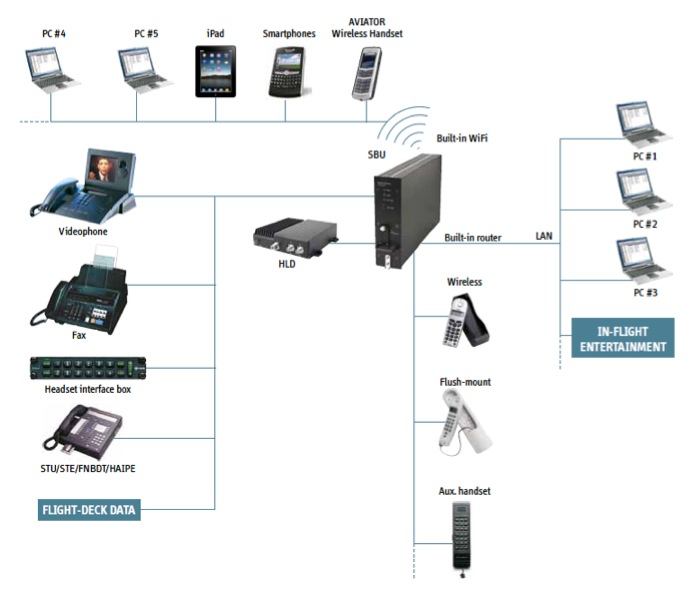

The AVIATOR 300 system has many interfaces and possibilities
The core unit of Thrane & Thrane’s SwiftBroadband systems, the SwiftBroadband Unit (SBU), has an optional built-in wireless access point for
easy connection of laptops, Smartphones or VoIP handsets. The optional built-in router makes it easy to connect up to 6 laptops and the ISDN
interface can be connected to phones, routers, PCs or secure devices. Two 2-wire interfaces enables the connection of standard or wireless
handsets, fax machines, headset interface boxes etc.
The detachable configuration modules contain all settings making it very easy to replace the High power amplifier, Low noise amplifier
and Diplexer (HLD) or SwiftBroadband Unit (SBU). ARINC 741/781 compatibility ensures a straightforward interface to an Intermediate
Gain (IGA) antenna.
Total Cabin Solution
The AVIATOR 300 is a total cabin connectivity system that brings the
power and convenience of the internet, e-mail, VPN, fax and telephony
to your aircraft. Additional features include:
• Built-in PBX
• Built-in Router
• Built-in Ethernet switch
• Built-in WiFi access point
Inmarsat Aeronautical Satellite
Communications Services
Inmarsat is a global satellite communications company operating
geostationary satellites to provide the most versatile and reliable
satellite network in the world.
SwiftBroadband
The Thrane & Thrane AVIATOR 300 system is engineered from
the ground up to take advantage of the latest communication
technologies like SwiftBroadband for increased reliability
and connectivity. The SwiftBroadband Background Data and
SwiftBroadband Low Cost Voice channel allow users to access a
shared data channel and a compressed high quality voice channel at
the same time.
The AVIATOR 300 is an Inmarsat Class 7 System supporting:
• Single Channel SwiftBroadband
• Circuit-switched standard voice
• Background IP up to 332 kbps
• Streaming IP at 8/16/32/64 kbps
• ISDN service or 3.1 KHz audio down to 45 degrees elevation
Intermediate Gain Antenna (IGA)
To comply with installations on smaller aircraft, the AVIATOR 300
system uses an IGA antenna. This ensures a lightweight package
with low profile/drag and small antenna footprint on the fuselage,
typically less than one-third that of a high gain antenna, making it
suitable for use on light aircrafts. The IGA installation provides
full SwiftBroadband capabilities with data speeds up to 332 kbps.
For more information on antenna options available, please contact
your Thrane & Thrane sales representative.
Upgrade from Aero-M and Aero-I
With built-in NRS capability, the AVIATOR 300 is the perfect upgrade
path for legacy Aero-M and Aero-I installations. When upgrading these
systems to AVIATOR 300, the TT-5006A antenna installation can be reused,
making the upgrade simple and cost effective. For more information on
how to get AVIATOR 300 onboard, please contact your Thrane & Thrane
sales representative.
Navigational Reference System (NRS)
The AVIATOR 300 system has self steering capabilities when used with
an antenna that incorporates the NRS functions, such as the TT-5006A.
For more information on this feature please contact your Thrane & Thrane
sales representative.
TT-5040A
SwiftBroadband Unit (SBU)
Features
• IP packet or streaming SwiftBroadband data.
• Ethernet connectivity
• Bult-in router with six Eternet interfaces
• Built-in wireless access point
• Low weight and power consumption
• Compact 2 MCU size
• No forced cooling required
• Easy integration
Characteristics
TT-5040A SBU
Dimensions:
(L x W x H): 12.62” x 7.62” x 2.25”
(320.5 mm x 193.5 mm x 57.2 mm)
Mass: 6.2 lbs (2.8 kg)
Power: 28 V DC, 30 W typ. 106 W max.
Connectors: Rear: ARINC 404A
Front: RJ-45
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55,000 ft
DO-160E string: [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]
A[RB][ZC][RR]M[A3J33]XXAX
TT-5016A
High Power Amplifier, Low Noise
Amplifier and Diplexer (HLD)
Features
• Small size, low weight and low power
Consumption
• Powered through SBU
– no power wires to HLD required
• No forced cooling required
Characteristics
TT-5016A HLD
Dimensions: 8.98” x 7.87” x 1.97”
(L x W x H): (228.0 mm x 200.0 mm x 50.0 mm)
Mass: 5.7 lbs (2.6 kg)
Environmental: Temperature: -55 °C to +70 °C
Altitude: MSL to 55,000 ft
DO-160E string: [(A2)(F2)X]BBB[SCL]E[(Y)(W)]
XXFXZXXX[ZC][RR]M[A3J33]XXAX
Power: Powered through SBU
TT-5040A-001
Configuration Module (CM)
Features
• Stores system configuration parameters
• Located at the rear of the SBU
• Contains the SIM card
• Configured through SBU web interface
• Contains phone book
• CM may be removed/ inserted for easy
SBU exchange
Characteristics
TT-5040A-001 CM
Dimensions: 1.85” x 1.79” x 0.79”
(L x W x H): (47.0 mm x 45.5 mm x 20.0 mm)
Mass: 0.15 lb (70 g)
Environmental: Temperature: -25°C to +55°C
Altitude: MSL to 55,000 ft
DO-160E string: [(A1)(F1)X]CAB[SB2M]ExxxxxZ[AB]
A[RB][ZC][RR]M[A3J33]XXAX
TT-5040A-008 AVIATOR 200 Key
(LGA)
Features:
• Software key allowing system use with
Low Gain Antenna
TT-5040A-004
Wireless Antenna
Features
• Meet and exceed the requirements
of IEEE 802.11a/b/g
• Multi-band antenna (802.11a/b/g)
• Low profile housing
• TNC Connector
Characteristics
TT-5040A-004 Wireless Antenna
Dimensions: 4.7 x 0.48 x 0.5”
(L x W x H): (119.4 x 12.2 x 12.7 mm)
Mass: .063 lbs (28 g)
DO-160D string: [(A1)X]CAB[(SC)(RC1)]XWXXXXC
[AE]AZCTM[XXE1]XXA
TT-5624B
AVIATOR Wireless Handset
Features
• Handset with large color display
• Access to basic configuration and system status
• Noise cancellation
• Speaker for hands-free operation
• Headset jack
Characteristics
TT-5624B AVIATOR Wireless Handset
Dimensions: 6.10 x 2.17 x 1.04”
(L x W x H): (152.0 x 55.0 x 26.5 mm)
Mass: 0.39 lbs (175 g)
DO-160F string: [A4X]CXB[SB2M]XXXXXXA[(AX)
(BX)]A[RB][ZC][RS]M[XXXXX]
[XXXX]XAX
Environmental: Temperature: -15 °C to +45 °C
TT-5621B/TT-5622B
Aux. Handset and Cradle
Features
• Auxiliary handset and cradle
• 600 Ohm ETSI TBR 21 interface
• Adjustable ringer
• 10 memory locations (speed dial)
• Available in black or white
Characteristics
TT-5621B Handset
Dimensions: 7.87 x 2.05 x 1.24”
(L x W x H): (200 x 52 x 31.5 mm)
Mass: 0.49 lbs (220 g)
TT-5622B Cradle
Dimensions: 6.3 x 2.4 x 1.12”
(L x W x H): (160.5 x 61 x 28.4 mm)
Mass: 0.43 lbs (200 g)
DO-160D String: [A1X]CAB[(SMB2)(SM)(UFF1)]
XXXXXXAXXXB[RR]M[A2E3]XXA
