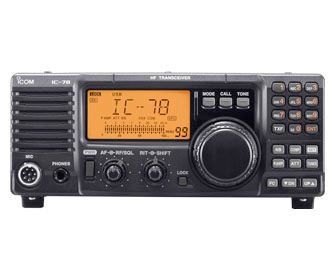

HF TRANSCEIVER IC-78

Pasted Graphic 1

Reliable long distance communications
Simple operation with keypad
A minimum of buttons and knobs provide uperior feature selectability. The 10 keypad allows you to enter an operating frequency or a memory channel number directly. VFO mode is available for continuous frequency operation.
General coverage receive
The IC-78 covers 0.03-29.999999MHz* in SSB, CW, RTTY and AM modes. The 1st receiver mixer provides superior receiver sensitivity, rejecting nearby interfering signals.
*Guaranteed range: 0.5–29.999999MHz
Front mounted loud speaker
With the speaker facing the operator, audio sounds can be clearly heard without impediment during operation.
Other features
  • 101 memory channels
  • VOX (Voice Operated Transmission)
  • Digital S/RF meter
  • Band stacking register
  • IF shift interference rejection
  • Squelch/RF gain control
  • Optional automatic antenna tuner, AT-140 available

DC POWER SUPPLY
PS-125
13.8V/25A
PS-125



ANTENNA ELEMENT
AH-2b
(Use with AH-4)
AH-2b



FOLDED DIPOLE ANTENNA
AH-710
AH-710



ANTENNA MATCHERS
MN-100L
MN-100L
MN-100L
MN-100


ANTENNA TUNER
AH-4
(Matches amateur bands only)
AH-4
AT-130
AH-130
AT-140
AH-140

SHIELDED CONTROL CABLES
no_photo
(Use with AT-130)
OPC-566
OPC-1147_N
10m; 32.8ft
(Use with AT-140)
OPC-1147/N


HAND MICROPHONE
HM-36
HM-36



DESKTOP MICROPHONES
SM-50
Dynamic microphone
SM-50
SM-20
Electret microphone
SM-20


EXTERNAL SPEAKERS
SP-20
SP-20
SP-21
SP-21
SP-23
SP-23

MOBILE BRACKET
MB-5
IC-MB-5



CARRYING HANDLE
MB-23
MB-23



CI-V CONVERTER
CT-17
CT-17



455kHZ FILTERS
no_photo
FL-52A: 500Hz/–6dB FL-53A: 250Hz/–6dB FL-222: 1.8kHz/–6dB FL-257: 3.3kHz/–6dB



VOICE SYNTHESIZER
UT-102
VOICE SYNTHESIZER
Announces an accessed band’s frequency, operating mode and S-meter level in English (or Japanese).
UT-102



DSP UNIT
AD-106
DSP UNIT
Provides AF DSP capability, such as noise reduction and auto notch function.
UT-106



HIGH STABILITY CRYSTAL UNIT
CR-338
HIGH STABILITY CRYSTAL UNIT
Provides improved frequency stability. Frequency stability: ±0.5ppm
CR-338


7/16×33/4×913/32 in



IC-78
Frequency range
Tx

1.6-29.9999 MHz
(Guaranteed : 0.5-29.9999)

Rx

0.03-29.9999 MHz

Power supply requirement

13.8V DC ±15% (negative ground)

Dimensions (W×H×D)
(Projections not included)

240×95×239 mm
9

Weight (approx.)

3.8kg; 8.4lb

Current drain (approx.)

Transmit (High)

20A typ. at max. power

Max. audio output

2.0A

Sensitivity
(at 10dB S/N; 1.8–29.999MHz)

SSB, CW, RTTY

0.16μV

AM

2.0μV typ

Selectivity

SSB, CW, RTTY

2.1kHz/-6dB
4.5kHz/-60dB

AM

6.0kHz/-6dB
20kHz/-60dB

Audio output powe (10% dist/ 4Ω load)

2.0W (10% dist / 8Ω load)

RF output power (PEP)
(output power differs depending on version)

SSB, CW, RTTY

2-100W

AM

2-40W


All stated specifications are subject to change without notice or obligation.
