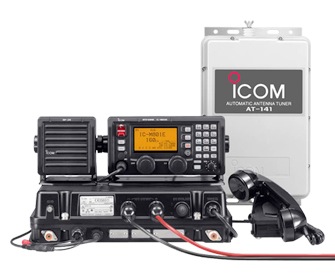

HF TRANSCEIVER IC-M801E

Pasted Graphic

All-in-one set for MF/HF SSB radio telephone and Class A/E DSC operation
Built-in DSC, Class E
The IC-M801E meets Class E standards for non-solas vessels.
4×8 inch remote controller
The IC-M801E offers an industry standard 4-inch tall remote controller. When set up with the IC-M603 or M505 VHF radio, Icom offers you a complete MF/HF/VHF communications station.
Large LCD with full dot-matrix characters
The M801E has the capability of up to 24 characters × 9 lines full dot-matrix display. You can easily read the alphanumeric channel name, DSC coordination, time, position, etc.
Digital signal processing
The DSP controlled digital IF filter provides flexible filter settings for narrow band signals like SITOR and FSK without having to install an optional narrow filter.
12V or 24V power supply available
The IC-M801E has built-in DC-DC power converter, which provides 13.6V DC either from 12V DC* or 24V DC, depending on version.
*12V version is available in IC-M801E only.
Automatic antenna tuner, AT-141
An optional automatic tuner, AT-141, easily connects to the IC-M801E. When the tuner cannot tune the antenna, the ICM801E bypasses the tuner and displays an alert on the display.
125W (PEP) of output power
A stable 125W of output power provides reliable long distance communication. The RF unit is enclosed in a rugged metal case and the large cooling fan ensures stable internal temperature even during high duty operation.
Other features
  • 0.5–29.999MHz continuous receiver coverage
  • D-SUB connector for NBDP terminal
  • GPS connector
  • IEC61162-1 connector for PC remote control
  • Printer connector

ANTENNA TUNER
AT-141
AT-141



SHIELDED CONTROL CABLE
OPC-1465
10m; 32.8ft
(Use with AT-141)
OPC-1465



HANDSET
HS-98
HS-98



HAND MICROPHONE
HM-135
HM-135



EXTERNAL SPEAKER
SP-24_E
SP-24E



REMOTE CONTROLLER
no_photo
RC-25E



SEPARATION CABLE
OPC-1575
10m; 32.8ft
OPC-1575



SPEAKER EXTENSION CABLE
OPC-1610
5m; 16.4ft
OPC-1610



FLUSH MOUNT KIT
MB-75
MB-75



MOUNTING BRACKET
MB-108
MB-108



IC-M801E
Frequency range
Tx

1.6-2.9999 MHz
4.0-4.9999 MHz
6.0-6.9999 MHz
8.0-8.9999 MHz
12.0-13.9999 MHz
16.0-17.9999 MHz
18.0-19.9999 MHz
22.0-22.9999 MHz
25.0-27.5000 MHz

Rx

0.5-29.9999 MHz

Power supply requirements
(Floating ground, Depending on version)

10.8-15.6V (12V) DC
21.6-31.2V (24V) DC

Dimensions (W×H×D)
(Projections not included)

Main unit:
367×95×260 mm

Controller unit:
220×110×84.4 mm

Speaker:
110×110×84.4 mm

Weight (approx.)

Main unit:
8.5kg

Controller unit:
570g

Speaker:
370g

Current drain

Transmit (High)

60A (12V)/30A (24V)

Max. audio output

6A (12V)/3A (24V)

Sensitivity
(at 20dB SINAD;
1.8-29.999MHz)

J3E, A1A, J2B, F1B

8dBμV emf

H3E(1.8-3.999MHz)

24dBμV emf

Spurious response

70dB (0.5-29.999MHz)
50dB (DSC, exept 1st IF image)

Audio output power (10% dist/ 4Ω load)

4.0W typ.

RF output power (PEP) (With AT-141)

85W (1.6-3.999MHz)
125W (4.0-27.500MHz)

Measurements made in accordance with EN300 373-2 and EN300 373-3 for IC-M801E.
All stated specifications are subject to change without notice or obligation.
