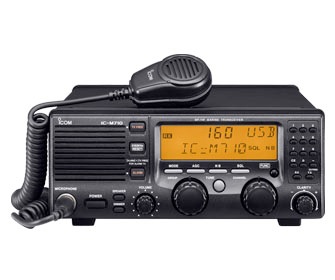

HF TRANSCEIVER IC-M710

Pasted Graphic

Simple, reliable, worldwide communications
Alphanumeric readout
Seven characters can be programmed into each memory channel to conveniently display station names or ship names for simplified operation.
150W output power
A large cooling fan system, in combination with the aluminum chassis, allows conditions for transmission at a full 150W* (PEP) RF output power—even during demanding RTTY (radio teletype) operation.
*60W (PEP) above 24 MHz bands.
Other features
  • General coverage receiver
  • Terminals for frequency/mode control via NMEA interfacing
  • Automatic tuning function
  • Large, front-mounted speaker
  • Weather fax ready
  • Backlight control
  • CW full break-in and semi break-in
  • 2-tone alarm built-in (Optional depending on version)
  • 1136 channels available

FOLDED DIPOLE ANTENNA
AH-710
AH-710



ANTENNA MATCHERS
MN-100
MN-100
MN-100L
MN-100L


ANTENNA TUNERS
AT-130
AT-130
AT-140
AT-140


SHIELDED CONTROL CABLES
no_photo
(Use with AT-130)
OPC-566
OPC-1147_N
10m; 32.8ft
(Use with AT-140)
OPC-1147/N


HANDSET
HS-50
HS-50



HAND MICROPHONES
HM-180
HM-180



CW/RTTY (FSK) NARROW FILTER
FL-100
CW/RTTY (FSK) NARROW FILTER 500Hz/-6dB
FL-100



2-TONE ALARM UNIT
no_photo
2-TONE ALARM UNIT Provides an alarm function.
(Already built-in to some versions)
UT-95


15/32×419/32×1213/32 in



IC-M710
Frequency range
Tx

1.6–2.9999 MHz
4.0–4.9999 MHz
6.0–6.9999 MHz
8.0–8.9999 MHz
12.0–13.9999 MHz
16.0–17.9999 MHz
18.0–19.9999 MHz
22.0–22.9999 MHz
25.0–27.5000 MHz

Rx

0.5–29.9999 MHz

Power supply requirement

13.6V DC ±15% (negative ground)

Dimensions (W×H×D)
(Projections not included)

291.4×116.4×315 mm
11

Weight (approx.)

7.9kg; 17.4lb

Current drain (approx.)

Transmit (High)

30A at max. power

Max. audio output

2.5A

Sensitivity
(at 10dB S/N;
1.8–29.999MHz)

J3E,J2B,F1B,R3E,A1A
(12dB SINAD)

0.5μV

H3E

3.2μV

Selectivity

J3E, R3E, J2B, A1A

2.3kHz/–6dB
4.2kHz/–60dB

Audio output powe (10% dist/ 4Ω load)

4.5W

RF output power (PEP)
(output power differs depending on version)

150/60/20W (below 24MHz)
60/20W (above 24MHz)


All stated specifications are subject to change without notice or obligation.
