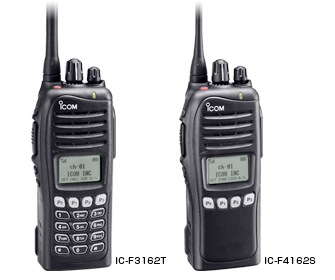

VHF/UHF Handheld Transceiver IC-F3162T/S IC-F4162T/S

Pasted Graphiclogo_std_millogo_std_ip55

LTR™/CONVENTIONAL/ DIGITAL* MULTI-MODE LAND MOBILE!
Designed and built for advanced communication needs, the ICF3162 series handhelds are feature-rich with built-in multiple signalings and LTR™ trunking capability. Two optional slots support numerous extension capabilities including IDAS digital operation*.
* Already installed in IC-F3161DT/DS, F4161DT/DS. Optional UT-126H required.
Basic LTR™ mode operation
Group, selective, and phone call are available in LTR™ mode.
512 memory channels with 128 zones
The 512 memory channel capacity with 128 zones allows you to divide and store a variety of channel groupings for versatile and efficient fleet management.
IDAS, 6.25kHz digital mode ready
The IDAS 6.25kHz digital mode is available with the optional UT-126H digital unit.
Dot matrix, multi-function LCD
The IC-F3162 series has a large dot matrix display to show information with high resolution characters. The display setting is programmable to show one line and 12 characters, or two lines and 24 characters. The bottom row shows assigned functions to the [P0] to [P3] buttons.
Voting scanning
The Voting scan detects the signal strength level of repeater sites and automatically selects the strongest station, useful for roaming between 2 or more repeater sites. Once you program for voting mode in a memory zone, you can easily start voting mode operation by changing the zone setting.
Loud audio output with BTL amp
The IC-F3162 series employs a BTL amplifier that increases the audio output and the built-in audio compander provides clear, low noise communications.
Other features
  • Built-in inversion type voice scrambler and optional UT-109R and UT-110R for higher security
    Inversion type voice scrambler is not compatible with UT-109/UT-110 voice scrambler.
  • The mode independent setting automatically selects the scanning list, according to the operating channel
  • Nuisance delete
  • MDC 1200 compatible
  • IP55 dust-protection and water jet resistance
  • Optional man down unit, UT-124R and lone worker function
  • Embedded ESN (Electronic serial number) and more...

BATTERY PACKS
BP-230_N
(Li-Ion)
7.4V/950mAh (min.),
980mAh (typ.)
BP-230N
BP-232_N
(Li-Ion)
7.4V/1900mAh (min.),
2000mAh (typ.)
BP-232N


BATTERY CASE
BP-240
AAA(LR03)×6 cells
BP-240



CHARGERS
BC-119N
Rapid charger
(AD-106 is required)
BC-119N
BC-121N
Rapid multicharger
(AD-106 is required)
BC-121N
BC-160
Rapid charger
BC-160
BC-171
Regular charger
BC-171
CHARGER ADAPTER
AD-106
(Use with BC-119N/BC-121N)
AD-106



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-160 or BC-119N)
BC-145S
BC-147S
12V/200mA
(Use with BC-171)
BC-147S
BC-157S
12V/6.6A
(Use with BC-121N)
BC-157S

SPEAKER-MICROPHONES
HM-131_SC
HM-131SC
HM-159L_SC
HM-159SC
HM-168
IPX7
HM-168
HM-169
IP57
HM-169
HM-170GP
With GPS receiver IP57
HM-170GP



HEADSETS
HS-94
Earhook type with boom microphone
(Use with VS-1SC)
HS-94*
HS-95
Behind-the-head type
(Use with VS-1SC
HS-95*
HS-97
Throat microphone type
(Use with VS-1SC)
HS-97*

VOX/PTT CASE
VS-1SC
VS-1SC



EARPHONE
SP-13
SP-13



EARPHONE ADAPTER
AD-52
AD-52



BELT CLIPS
MB-93
Swivel type
MB-93
MB-94
Alligator type
MB-94


LEATHER BELT HANGERS
MB-96N_2
Swivel type. MB-86 and MB-93 swivel joints supplied.
MB-96N
MB-96F
Fixed type
MB-96F


DC POWER CABLE
OPC-656
12–20V DC CABLE
(Use with BC-121N)
OPC-656



ANTENNA
fa-sc25v
136-150MHz
FA-SC25V
fa-SC55v
150-174MHz
FA-SC55V
fa-sc25u
400-430MHz
FA-SC25U
fa-sc57u
430-470MHz
FA-SC57U
fa-sc72u
470-520MHz
FA-SC72U



CUT ANTENNAS
FA-SC61VC
136-174MHz
FA-SC61VC
FA-SC61US
380-520MHz
FA-SC61US


STUBBY ANTENNAS
FA-SC56VS
150-162MHz
FA-SC56VS
FA-SC57VS
160-174MHz
FA-SC57VS
FA-SC73US
450-490MHz
FA-SC73US

INTERNAL UNITS
UT-109_R
Voice scrambler unit
(Non-rolling type)
UT-109R
UT-110_R
Voice scrambler unit
(Rolling type)
UT-110R
UT-126H
IDAS digital unit
UT-126H
UT-124_R
Man down unit
UT-124R

General



IC-F3162T/S
IC-F4162T/S
Frequency coverage
(Varies according to version)
136–174 MHz
400–470 MHz
Number of channels
512 ch/128 zones
Channel spacing
(Varies according to version)

12.5/20/25
6.25 (option) kHz

6.25 (option) kHz

Type of emission

16K0F3E, 14K0F3E
8K50F3E,
4K00F1E/D* (* Digital)
Current drain
Tx High

1.5A

1.8A

Rx

Stand-by

150mA

140mA

Max. audio

600mA
Dimensions
(projections not included; W×H×D)
53×136×38.9 mm
Weight (approx.)
340g; (with BP-232N)

TRANSMITTER



IC-F3162T/S
IC-F4162T/S
RF output power
5W
Spurious emissions
0.25μW (1GHz)
Frequency stability
±1.0ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise

-

RECEIVER



IC-F3162T/S
IC-F4162T/S
Sensitivity at 20dB SINAD
-4dBμV (typ.)
Adjacent channel selectivity (W/M/N)
75/75/68dB (typ.)
Spurious response rejection
70dB (min.)
Intermodulation rejection
67dB (typ.)
AF output power
(at 5% distortion with an 8Ω load)
500mW (typ.)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F3162T/S IC-F4162T/S
Number of option slots

2*

CTCSS/ DTCS

encoder

Available

decoder

Available

2-Tone

encoder

Available

decoder

Available

5-Tone

encoder

Available

decoder

Available

DTMF autodial

Available

DTMF decoder

Available

Voice Scrambler

Inversion

Available

Non-rolling

UT-109R

Rolling

UT-110R

IDAS digital

UT-126H

MPT 1327

-

BIIS 1200

Available

LTR™ trunking

Available

Man Down function

UT-124R

Intrinsically safe

-

Vibration alert

-

Voice recorder

-

* One for UT-126H digital unit and one for another option board.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

All stated specifications are subject to change without notice or obligation.
