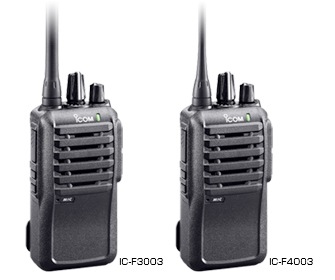

VHF/UHF Handheld Transceiver IC-F3003 IC-F4003

Pasted Graphiclogo_std_millogo_std_ip54logo_std_mdc

Affordable, high performance radio that offers abundant features
Simple operation for instant communication
The IC-F3003 series is so easy to use there's no special training required. The few knobs and buttons are generously sized for easy operation and are designed to provide non-slip, positive action – even while wearing gloves.
Easy to hear in noisy areas
The built-in bridge-tied load (BTL) amplifier offers powerful 800mW* audio output from the large 45mm speaker. The radio delivers loud and intelligible audio even in noisy environments. * Typical with internal speaker
Longer operating time
A new high efficiency FET of the IC-F3003 series reduces consumption current and provides 20 hours* of operating time with the BP-265, 2000mAh battery pack. Even when used with the BP-264, the radio offers 14 hours* of operating time. *Tx:Rx:Standby=5:5:90. Power save function ON.
Weather resistant, dust protection, military rugged
While the radio is a compact unit with a height of only 111mm, the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MILSTD- 810 environmental test. In short, the IC-F3003 series is built rugged!
Internal VOX capability for hands-free operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Selective calling, quiet stand-by and more
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The radio “stun” function disables a radio over the air and the “revive” function restores the stunned radio.
Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.
Other features
  • DTMF autodial
  • CTCSS/DTCS encoder/decoder
  • BIIS PTT ID transmission
  • MDC PTT ID and emergency
  • Low battery alert
  • 2-step power save
  • PC programmable
  • Time out timer
  • Talk around function
  • Lone worker function
  • Enhanced emergency
  • 3-color LED
  • Surveillance function

BATTERY PACKS
BP-264
(Ni-MH)
7.2V/1400mAh
BP-264
BP-265
(Li-Ion)
7.4V/1900mAh (min.),
2000mAh (typ.)
BP-265


BATTERY CASE
BP-263
AA(LR6)
batteries ×6
BP-263



CHARGERS
BC-192
Regular charger for BP-264 (Ni-MH battery)
(Use with BC-147S)
BC-192
BC-191
Rapid charger for BP-264 (Ni-MH battery)
(Use with BC-123S)
BC-191
BC-193
Rapid charger for BP-265 (Li-Ion battery)
(Use with BC-123S)
BC-193
BC-197
Rapid multicharger for BP-264 or BP-265.*
(Use with BC-157S)
BC-197
* Battery pack compatibility differs depending on installed charger adapter (AD-120 or AD-121).
AC ADAPTERS
BC-147S
12V/200mA
(Use with BC-192)
BC-147S*
BC-123S
12V/1A
(Use with BC-191 or BC-193)
BC-123S*
BC-157S
12V/6.6A
(Use with BC-197)
BC-157S

* BC-123SA/BC-147SA for 120V AC. SE for 230V AC. SV for 240V AC.
CHARGER ADAPTERS
AD-120
Charger adapter for BP-264.
(Use with BC-197)
AD-120*
AD-121
Charger adapter for BP-265.
(Use with BC-197)
AD-121*


* Either AD-120 or AD-121 charger adapters are supplied with the BC-197, depending on BC-197's version.
SPEAKER-MICROPHONES
HM-158L
Compact and durable body.
HM-158L
HM-159L_SC
Full size durable speaker microphone.
HM-159L


HEADSETS
HS-94
Earhook type with boom microphone
(Use with OPC-2004)
HS-94
HS-95
Behind-the-head type
(Use with OPC-2004)
HS-95
HS-97
Throat microphone type
(Use with OPC-2004)
HS-97

ADAPTER CABLE
OPC-2004
OPC-2004



BELT CLIP
MB-124
Alligator type clip.
Same as supplied.
MB-124



POWER SUPPLY CABLES
CP-23L
Cigarette lighter cable
(Use with BC-191 or BC-193)
CP-23L
OPC-515L
DC Power cable
(Use with BC-191, BC-192 or BC-193.)
OPC-515L
OPC-656
DC Power Cable
(Use with BC-197)
OPC-656

ANTENNAS
fa-sc25v
136-150MHz
FA-SC25V
fa-SC55v
150-174MHz
FA-SC55V
fa-sc25u
400-430MHz
FA-SC25U
fa-sc57u
430-470MHz
FA-SC57U
fa-sc72u
470-520MHz
FA-SC72U



CUT ANTENNAS
FA-SC61VC
136-174MHz
FA-SC61VC
FA-SC61US
380-520MHz
FA-SC61US


STUBBY ANTENNAS
FA-SC56VS
150-162MHz
FA-SC56VS
FA-SC57VS
160-174MHz
FA-SC57VS
FA-SC73US
450-490MHz
FA-SC73US

General



IC-F3003
IC-F4003
Frequency range
(Varies according to version)
136MHz–174MHz
350MHz–400MHz
400MHz–470MHz
450MHz–520MHz
Number of memory channels
16 channels
Channel spacing
(Varies according to version)
12.5kHz/25kHz
Type of emission
16K0F3E/11K0F3E
Current drain
Tx
1.3A
Rx
Stand-by
75mA
70mA
Max. audio
330mA (Internal SP)
Dimensions (W×H×D)
(Projections are not included)
58×111×31 mm (With BP-264)
58×111×35.5 mm (With BP-265)
Weight
330g (With BP-264)
270g (With BP-265)

Transmitter



IC-F3003
IC-F4003
RF output power (at 7.2V DC))
5W, 2W, 1W
(Hi, L2, L1)
4W, 2W, 1W
(Hi, L2, L1)
Spurious emissions
70dB (min.)
Frequency stability
±2.5ppm
Audio harmonic distortion (W/N)
1.0%/1.5% (typ.)
FM Hum and Noise (W/N)
46dB/40dB (typ.)

Receiver



IC-F3003
IC-F4003
Sensitivity at 12dB SINAD
0.25dBμV (typ.)
Adjacent channel selectivity (W/M/N)
78dB/70dB (typ.)
73dB/65dB (typ.)
Spurious response rejection
70dB (min.)
Intermodulation rejection
75dB (typ.)
74dB (typ.)
AF output power
(at 5% distortion )
Internal SP
(With 12Ω load)
800mW (typ.)
External SP
(With 8Ω load)
400mW (typ.)

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.

Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4 I

Low Temperature Operation

502.4 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.
Ingress Protection Standard

Dust & Water

IP54 (Dust-protection and water resistant)


All stated specifications are subject to change without notice or obligation.
