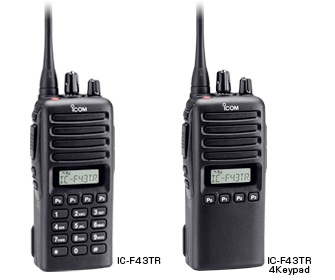

UHF Trunked Radio IC-F43TR

Pasted Graphic 1logo_std_ltrlogo_std_mil

THE IDEAL SUBSCRIBER UNITS FOR UHF SMR AND ESMR OPERATIONS
Multiple modes
The IC-F43TR and F620/F621TR offer basic LTR™, PassPort and conventional operations in one unit. Conventional operation and talk-around are both available with the touch of a button, even while you are operating in LTR™ or PassPort mode.
LTR™ Features and Select Call
The IC-F43TR and F620/F621TR offer maximum flexibility to program up to 50 systems or up to 250 groups per system. All basic LTR™ features, including direct phone calling and wide-narrow channel spacing are available. The IC-F621TR offers an optional DTMF microphone, HM-152T, allowing for direct dialing, while with the keypad version of the IC-F43TR has the direct dialing capability.
PassPort Features — NTS Release 2.4
  • Individual Selective Call (MIN call) — Allows private call between individual members within a fleet.
  • Display MIN Text — While in group conversation, you can see the name of the calling party in the display, instead of the MIN number.
  • Primary Talk Group — "All Call" allows individual users to call all groups in the fleet.
  • RSSI (Receive signal strength indicator) — Detects the strongest signal site, providing seamless roaming.
  • Site Lock — Allows the user to lock the radio onto the current site to avoid roaming.
Wide Bandwidth, Plenty of Power
The IC-F621TR offers two versions that cover 400-430MHz and 440-490MHz. The IC-F43TR offers two versions that cover 400-470MHz and 450-512MHz. And all versions provide switchable 12.5/25 kHz width by channel. Because the IC-F621TR offers a full 45 watts of power, it provides more reliable handshakes at the edge of a system's footprint.
Voice scrambler function
The optional voice scrambler unit, UT-109, provides secure communication in all operating modes.
Man down function
With the optional man down unit, UT-124, the IC-F43TR automatically sends an emergency signal when the transceiver is left in the horizontal position for a pre-set time. This function also works in all operating modes.
Advanced PC programming
You may assign operating modes, default talk group for home button, power-ON home or previous group, network roaming, offset frequency by channel, LTR™ polarity by system, home channel and area bit by system, Tx and Rx ID, and UID for PassPort.
Other features
  • Military grade durability, tested to MIL-STD 810
  • Multiple scan mode
  • Dynamic Talk Around
  • Built-in audio compander (IC-F43TR only)
  • Dead beat disable, ASID text, and more...

BATTERY PACKS
BP-230_N
(Li-Ion)
7.4V/950mAh (min.),
980mAh (typ.)
BP-230N
BP-232_N
(Li-Ion)
7.4V/1900mAh (min.),
2000mAh (typ.)
BP-232N


BATTERY CASE
BP-240
AAA(LR03)×6 cells
BP-240



CHARGERS
BC-119N
Rapid charger
(AD-106 is required)
BC-119N
BC-121N
Rapid multicharger
(AD-106 is required)
BC-121N
BC-160
Rapid charger
BC-160
BC-171
Regular charger
BC-171
CHARGER ADAPTER
AD-106
(Use with BC-119N/BC-121N)
AD-106



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-119N or BC-160)



BC-145S
BC-147S
12V/200mA
(Use with BC-171)


BC-147S
BC-157S
12V/6.6A
(Use with BC-121N)
BC-157S

SPEAKER-MICROPHONES
HM-158L
HM-158L
HM-159L_SC
HM-159L
HM-153L
HM-153L
HM-166L
HM-166L
HEADSETS
HS-94
Earhook type with boom microphone
(Use with VS-1L)
HS-94*
HS-95
Behind-the-head type
(Use with VS-1L)
HS-95*
HS-97
Throat microphone type
(Use with VS-1L)
HS-97*

VOX/PTT CASE
VS-1L_SC
VS-1L*



EARPHONE
SP-13
SP-13



BELT CLIPS
MB-93
Swivel type
MB-93
MB-94
Alligator type
MB-94


LEATHER BELT HANGERS
MB-96N_2
Swivel type. MB-86 and MB-93 swivel joints supplied.
MB-96N
MB-96F
Fixed type
MB-96F


DC POWER CABLE
OPC-656
12–20V DC CABLE
(Use with BC-121N)
OPC-656



ANTENNA
fa-sc25v
136-150MHz
FA-SC25V
fa-SC55v
150-174MHz
FA-SC55V
fa-sc25u
400-430MHz
FA-SC25U
fa-sc57u
430-470MHz
FA-SC57U
fa-sc72u
470-520MHz
FA-SC72U



CUT ANTENNAS
FA-SC61VC
136-174MHz
FA-SC61VC
FA-SC61US
380-520MHz
FA-SC61US


STUBBY ANTENNAS
FA-SC56VS
150-162MHz
FA-SC56VS
FA-SC57VS
160-174MHz
FA-SC57VS
FA-SC73US
450-490MHz
FA-SC73US

NTERNAL UNITS
UT-109_R
Voice scrambler unit
(Non-rolling type)
#02 requied.
UT-109
UT-110_R
Voice scrambler unit
(Rolling type)
#02 requied.
UT-110
UT-124_R
Man down unit
UT-124

*Not waterproof.

GENERAL
332×423/32×1716 in



IC-F43TR
Frequency coverage
(Varies according to version)

400–470 MHz
450–512 MHz

Number of channels

250 (conventional)

Channel spacing
(Varies according to version)

12.5/25 kHz

Type of emission

16K0F3E, 11K0F3E,
8K50F3E

Current drain

Tx High

1.7A

Rx

Stand-by

85mA

Max. audio

300mA

Dimensions
(projections not included; W×H×D)

53×120×36.9 mm
2

Weight (approx.)

340g; 12.0oz (with BP-232N)

TRANSMITTER



IC-F43TR
RF output power

4W

Spurious emissions

70dB (typ.)

Frequency stability

±2.0ppm

Audio harmonic distortion

3% typical

FM Hum and Noise

46dB typ. (W)
40dB typ. (N)

RECEIVER



IC-F43TR
Sensitivity at 12dB SINAD

0.25μV (typ.)

Adjacent channel selectivity (W/N)

75/65dB (typ.)

Spurious response rejection

70dB

Intermodulation rejection

74dB (typ.)

AF output power
(at 5% distortion with an 8Ω load)

500mW (typ.)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F43TR
Number of option slots

1

CTCSS/ DTCS

encoder

Available

decoder

Available

2-Tone

encoder

-

decoder

-

5-Tone

encoder

-

decoder

-

DTMF autodial

Available

DTMF decoder

UT-108

Voice Scrambler

Inversion

Available

Non-rolling

UT-109
(Version 02)

Rolling

UT-110*
(Version 02)

APCO P25 digital

-

AES encryption

-

DES encryption

-

6.25kHz digital

-

MPT 1327

-

MDC 1200

-

SmarTrunk II/3G™

-

LTR™ trunking

Available

PassPort

Available

Man Down function

UT-124

Intrinsically safe

-

* Available in conventional mode only.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

All stated specifications are subject to change without notice or obligation.
