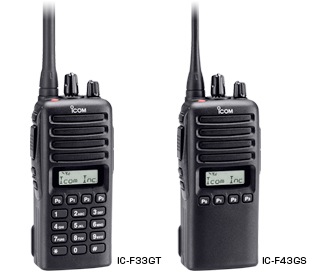

VHF/UHF Handheld Transceiver IC-F33GT/GS IC-F43GT/GS

Pasted Graphic 1logo_std_mil

ADVANCED STANDARD MODEL
The IC-F33G series is suitable for a variety of needs — large or small, mobile or stationary. Offering advanced features such as wide frequency range, multiple signaling and loud audio, the IC-F33G series is a rugged and reliable 2-way communications tool.
256 memory channels with 16 banks
The 256 memory channel capacity with 16 banks allows you to divide and store a variety of channel groupings. Channel selection can be made easily with a rotation of the rotary channel knob.
Lithium-Ion battery pack
The supplied 2000mAh Li-Ion battery pack, BP-232N, provides 15/16 hours* of operating time. An optional AA size battery case BP-240 stores a charge for years and is an ideal choice for emergency preparedness.
* UHF/VHF, typical operation Tx:Rx: Standby=5:5:90, power save on.
Multiple 5-Tone, Multiple 2-Tone
The IC-F33G series can encode and decode up to 10 2-Tone codes or 32/8* 5-Tone codes on a single memory channel. This is perfect for professionals who require multiple district paging on one channel.
* Encode/decode.
Other features
  • Optional SmarTrunk 3G™ boards, UT-117/UT-117S
  • Optional man down unit, UT-124
  • Dust-protection and splash resistance equivalent to IP54
  • Wide frequency coverage and wide, middle and narrow channel spacing programmable
  • Compact and lightweight body
  • MDC 1200 compatible
  • Flash CPU for future upgrade

BATTERY PACKS
BP-230_N
(Li-Ion)
7.4V/950mAh (min.),
980mAh (typ.)
BP-230N
BP-232_N
(Li-Ion)
7.4V/1900mAh (min.),
2000mAh (typ.)
BP-232N


BATTERY CASE
BP-240
AAA(LR03)×6 cells
BP-240



CHARGERS
BC-119N
Rapid charger
(AD-106 is required)
BC-119N
BC-121N
Rapid multicharger
(AD-106 is required)
BC-121N
BC-160
Rapid charger
BC-160
BC-171
Regular charger
BC-171
CHARGER ADAPTER
AD-106
(Use with BC-119N/BC-121N)
AD-106



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-119N or BC-160)



BC-145S
BC-147S
12V/200mA
(Use with BC-171)


BC-147S
BC-157S
12V/6.6A
(Use with BC-121N)
BC-157S

SPEAKER-MICROPHONES
HM-158L
HM-158L
HM-159L_SC
HM-159L
HM-153L
HM-153L
HM-166L
HM-166L
HEADSETS
HS-94
Earhook type with boom microphone
(Use with VS-1L)
HS-94*
HS-95
Behind-the-head type
(Use with VS-1L)
HS-95*
HS-97
Throat microphone type
(Use with VS-1L)
HS-97*

VOX/PTT CASE
VS-1L_SC
VS-1L



EARPHONE
SP-13
SP-13



BELT CLIPS
MB-93
Swivel type
MB-93
MB-94
Alligator type
MB-94


LEATHER BELT HANGERS
MB-96N_2
Swivel type. MB-86 and MB-93 swivel joints supplied.
MB-96N
MB-96F
Fixed type
MB-96F


DC POWER CABLES
OPC-656
12–20V DC CABLE
(Use with BC-121N)
OPC-656



ANTENNA
fa-sc25v
136-150MHz
FA-SC25V
fa-SC55v
150-174MHz
FA-SC55V
fa-sc25u
400-430MHz
FA-SC25U
fa-sc57u
430-470MHz
FA-SC57U
fa-sc72u
470-520MHz
FA-SC72U



CUT ANTENNAS
FA-SC61VC
136-174MHz
FA-SC61VC
FA-SC61US
380-520MHz
FA-SC61US


STUBBY ANTENNAS
FA-SC56VS
150-162MHz
FA-SC56VS
FA-SC57VS
160-174MHz
FA-SC57VS
FA-SC73US
450-490MHz
FA-SC73US

INTERNAL UNITS
UT-108_R
DTMF Decoder
UT-108
UT-109_R
Voice scrambler unit
(Non-rolling type)
#02 requied.
UT-109
UT-110_R
Voice scrambler unit
(Rolling type)
#02 requied.
UT-110
UT-124_R
Man down unit
UT-124

GENERAL



IC-F33GT/GS
IC-F43GT/GS
Frequency coverage
(Varies according to version)
136–174 MHz
400–470 MHz
450–512 MHz (USA)
450–520 MHz (GEN)
Number of channels
256 ch/16 banks
Channel spacing
(Varies according to version)
12.5/25, 15/30 kHz
12.5/25 kHz
Type of emission
16K0F3E, 11K0F3E
16K0F3E, 11K0F3E,
8K50F3E
Current drain
Tx High
1.5A
1.7A
Rx
Stand-by
85mA
Max. audio
300mA
Dimensions
(projections not included; W×H×D)
53×120×36.9 mm
2
332×423/32×1716 in
Weight (approx.)
340g; 12.0oz (with BP-232N)

TRANSMITTER



IC-F33GT/GS
IC-F43GT/GS
RF output power
5W
4W
Spurious emissions
80dB (typ.)
70dB (typ.)
Frequency stability
±2.0ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
46dB typ. (W)
40dB typ. (N)

RECEIVER



IC-F33GT/GS
IC-F43GT/GS
Sensitivity at 12dB SINAD
0.25μV (typ.)
Adjacent channel selectivity (W/N)
75/65dB (typ.)
Spurious response rejection
70dB
Intermodulation rejection
74dB (typ.)
AF output power
(at 5% distortion with an 8Ω load)
500mW (typ.)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F33GT/GS IC-F43GT/GS
Number of option slots
1
CTCSS/ DTCS
encoder
Available
decoder
Available
2-Tone
encoder
Available
decoder
Available
5-Tone
encoder
Available
decoder
Available
DTMF autodial
Available
DTMF decoder
UT-108
Voice Scrambler
Inversion
Available
Non-rolling
UT-109
(Version 02)
Rolling
UT-110
(Version 02)
APCO P25 digital
-
AES encryption
-
DES encryption
-
6.25kHz digital
-
MPT 1327
-
MDC 1200
Available*
LTR™ trunking
-
PassPort
-
Man Down function
UT-124
Intrinsically safe
-

* Depending on version.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

All stated specifications are subject to change without notice or obligation.
