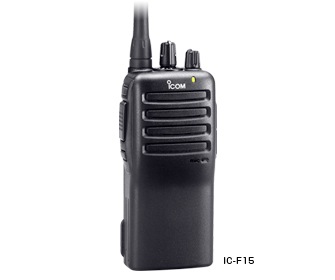

VHF/UHF Handheld Transceiver IC-F15/S IC-F25/S

Pasted Graphiclogo_std_mil

BUILT TO LAST, BUILT TO WORK!
The IC-F15/S series is designed to provide simple operation for everyone but is a powerful and reliable radio for your daily business. Its very durable construction is resistant to shock and vibration. The IC-F15/S series will easily exceed your expectations.
Tough and reliable construction
The IC-F15/S series is built around an aluminum die-cast chassis and covered with a tough polycarbonate casing. This radio is built to last. Its dual slide rail securely locks the battery to the radio. The belt clip is clamped between the radio and the battery, making it nearly impossible to knock loose.
Simple operation
Having only 3 buttons, volume and channel knobs, the IC-F15/S series does not require special training to use. Positive button action for sure operation even when wearing gloves, allows you to get down to the business of communicating without fuss.
Optional board
The IC-F15/S series has an expansion socket for adding an optional board. Voice scrambler, man down and DTMF decoder features are available, depending on the installed board.
Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.
Other features
  • Wide frequency coverage in one version
  • Multiple 2-Tone, Multiple 5-Tone
  • Lithium-Ion battery standard
  • LED low battery alert
  • TOT function and lock out penalty timer
  • 2 step power saver
  • Normal and priority scan
  • 500mW loud and clear audio
  • Optional VOX headset for hands free operation
  • Embedded ESN (Electronic serial number)
  • Wide/middle/narrow channel spacing,
    and more...

BATTERY PACKS
BP-230_N
(Li-Ion)
7.4V/950mAh (min.),
980mAh (typ.)
BP-230N
BP-232_N
(Li-Ion)
7.4V/1900mAh (min.),
2000mAh (typ.)
BP-232N


BATTERY CASES
BP-240
AAA(LR03)×6 cells
BP-240



CHARGERS
BC-119N
Rapid charger
(AD-106 is required)
BC-119N
BC-121N
Rapid multicharger
(AD-106 is required)
BC-121N
BC-160
Rapid charger
BC-160
BC-171
Regular charger
BC-171
CHARGER ADAPTER
AD-106
(Use with BC-119N/BC-121N)
AD-106



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-160 or BC-119N)
BC-145S
BC-147S
12V/200mA
(Use with BC-171)
BC-147S
BC-157S
12V/6.6A
(Use with BC-121N)
BC-157S

SPEAKER-MICROPHONES
HM-158L
HM-158L
HM-159L_SC
HM-159L/SC
HM-153L
HM-153L
HM-166L
HM-166L
HEADSETS
HS-94
Earhook type with boom microphone
(Use with VS-1L)
HS-94
HS-95
Behind-the-head type
(Use with VS-1L)
HS-95
HS-97
Throat microphone type
(Use with VS-1L)
HS-97

VOX/PTT CASE
VS-1L_SC
VS-1L



EARPHONE
SP-13
SP-13



BELT CLIPS
MB-93
Swivel type
MB-93
MB-94
Alligator type
MB-94


LEATHER BELT HANGERS
MB-96N_2
Swivel type.
MB-96N
MB-96F
Fixed type
MB-96F


DC POWER CABLES
OPC-656
12–20V DC CABLE
(Use with BC-121N)
OPC-656



ANTENNA
fa-sc25v
136-150MHz
FA-SC25V
fa-SC55v
150-174MHz
FA-SC55V
fa-sc25u
400-430MHz
FA-SC25U
fa-sc57u
430-470MHz
FA-SC57U
CUT ANTENNAS
FA-SC61VC
136-174MHz
FA-SC61VC
FA-SC61US
380-520MHz
FA-SC61US


STUBBY ANTENNAS
FA-SC56VS
150-162MHz
FA-SC56VS
FA-SC57VS
160-174MHz
FA-SC57VS


INTERNAL UNITS
UT-108_R
DTMF Decoder
UT-108
UT-109_R
Voice scrambler unit
(Non-rolling type)
#01 requied.
UT-109
UT-110_R
Voice scrambler unit
(Rolling type)
#01 requied.
UT-110
UT-124_R
Man down unit
UT-124

General



IC-F15/S
IC-F25/S
Frequency coverage
(Varies according to version)
136-174 MHz
400-470 MHz
Number of channels
16 (Rotary type), 4 (Max.; simple type)
Channel spacing
(Varies according to version)
12.5/20/25 kHz
Type of emission
16K0F3E, 14K0F3E,
8K50F3E
Current drain
Tx High
1.5A
1.6A
Rx
Stand-by
70mA
Max. audio
300mA
Dimensions
(projections not included; W×H×D)
53×120×42.4 mm
Weight (approx.)
300g (with BP-232N)

Transmitter



IC-F15/S
IC-F25/S
RF output power
5W
4W
Spurious emissions
0.25μW (1GHz)
Frequency stability
±2.5ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
-

Receiver



IC-F15/S
IC-F25/S
Sensitivity at 20dB SINAD (emf)
-4dBμV (typ.)
Adjacent channel selectivity (W/N)

75/75/65dB (typ.)

75/73/65dB (typ.)

Spurious response rejection

70dB (min)
Intermodulation rejection
67dB (typ.)
AF output power
(at 5% distortion with an 8Ω load)
500mW (typ.)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F15/S, 25/S
Number of option slots
1
CTCSS/ DTCS
encoder
Available
decoder
Available
2-Tone
encoder
Available
decoder
Available
5-Tone
encoder
Available
decoder
Available
DTMF autodial
Available
DTMF decoder
UT-108
Voice Scrambler
Inversion
-
Non-rolling
UT-109
(Version 01)
Rolling
UT-110
(Version 01)
BllS 1200
-
MPT 1327
-
LTR™ trunking
-
Man Down function
UT-124
Intrinsically safe
-

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage (Altitude)

500.4 I

Low Pressure Operation (Altitude)

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Humidity Aggravate

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

All stated specifications are subject to change without notice or obligation.
