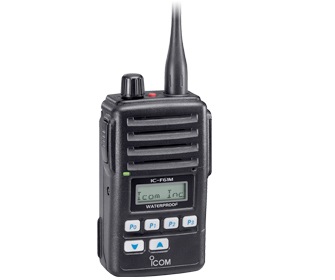

UHF ONBOARD TRANSCEIVER IC-F61M

Pasted Graphic 1logo_std_IP67logo_std_millogo_std_waterproof

Compact and Waterproof Maritime Onboard Radio
Conforms to Maritime UHF onboard communication requirements
onboard_logoThe IC-F61M is especially developed for onboard communication and is pre-programmed with 9 UHF onboard channels*. Icom has also matched this radio's electrical specifications with the strict requirements of EN 300 720-2.
* 25kHz channel.
IP67, dust-tight and water-proof construction
ip67imgThe IC-F61M has outstanding protection against dust and water which is equivalent to IP67. The IC-F61M can withstand submersion in 1m depth of water for up to 30 minutes and has dust-tight construction that prevents the ingress of dust.
Compact body
The IC-F61M's compact dimensions of 56 (W) × 97 (H) × 36.4 (D) mm allow the IC-F61M to fit comfortably in your palm or shirt pocket.
Lithium-Ion battery pack standard
With the supplied 1700mAh Lithium-Ion battery pack, BP-227, the IC-F61M provides stable output power and a practical 9–10 hours* of operating time.
* Typical operation; Tx:Rx:Stand-by duty cycle=5:5:90
Built-in signalings
Without installing an optional logic board, the IC-F61M has 5-Tone, CTCSS, DTCS signaling capabilities* for group communication or selective calling.
* Ask your dealer for programming these signalings.
700mW audio output power
The IC-F61M uses a BTL (bridge-tied load) amplifier that doubles the audio output. As a result, it delivers 700mW of loud audio*.
* Internal speaker only.
Vibration alert function
When a pre-programmed 5-Tone signal is received, the vibration alert function alerts you by vibrating the radio. The vibration patterns are also programmable (4 patterns × one time/repeat).
Max. 8 minute voice recorder
The built-in the voice recorder records incoming calls up to a maximum of 8 minutes (Or up to 48 calls of 10 sec. recording time). When a pre-programmed 5-Tone signal is received, the voice recorder automatically starts recording the message.
Other features
  • 2-step low battery alert
  • Priority scan and dual priority scan
  • Mode dependent scan
  • Lone worker function
  • Optional waterproof speaker microphone, HM-169 (IP57)
  • Built-in audio compander
  • Optional VOX headset available
  • BTL only version (no vibration alert and no voice recorder) and BTL/Vibration alert version (no voice recorder) available*
* Not available in some countries.

BATTERY PACK
BP-227_AX_FM
(Li-Ion)
7.4V/1850mAh (min.),
1950mAh (typ.)
BP-227



BATTERY CASE
BP-226
AA(LR6)×5 cells Equivalent to IPX4 water resistance.
BP-226



CHARGERS
BC-119N
Rapid charger
(AD-100 is required)
BC-119N
BC-121N
Rapid multicharger
(AD-100 is required)
BC-121N
BC-152
Regular charger
BC-152
BC-190
Rapid charger
BC-190
CHARGER ADAPTER
AD-100
(Use with BC-119N or BC-121N)
AD-100



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-119N or BC-190)
BC-145S
BC-147S
12V/200mA
(Use with BC-152)
BC-147S
BC-157
12V/6.6A
(Use with BC-121N)
BC-157S

SPEAKER-MICROPHONES
HM-138
Equivalent to IPX7 waterproof.
HM-138
HM-168
IPX7
HM-168
HM-169
IP57
HM-169

HEADSETS
HS-94
(Use with VS-1SC)
HS-94
HS-95
(Use with VS-1SC)
HS-95
HS-97
(Use with VS-1SC)
HS-97

VOX/PTT CASE
vs-1sc
VS-1SC



BELT CLIPS
MB-86
Swivel type
MB-86
MB-98
Alligator type
MB-98


LEATHER BELT HANGERS
MB-96N_2
Swivel type
MB-96N
MB-96F
Fixed type
MB-96F


CIGARETTE LIGHTER CABLE
CP-17L
CP-17L



DC POWER CABLE
OPC-515L
OPC-515L
OPC-656
12–20V DC CABLE
(Use with BC-121N)
OPC-656


ANTENNA
fa-s27u
400-470MHz
FA-S27U



STUBBY ANTENNAS
FA-S57US
450-490MHz
FA-S57US





GENERAL



IC-F61M
Frequency range

457.525–467.575MHz

Number of operating channels

9 UHF onboard channels (25kHz channel)

Channel spacing

25kHz

Current drain
(at 7.2V DC)

Tx
2W ERP output

1.0A

0.2W ERP output

0.4A

Rx

AF Max.

500mA (Internal SP)
300mA (External SP)

Stand-by

85mA

Operating temp. range

–20°C to +55°C

Dimensions
(projections not included; W×H×D)

56×97×36.4 mm

Weight (approx.)

284g (with BP-227)

TRANSMITTER



IC-F61M
Output power

2W ERP/0.2W ERP

Spurious emissions

0.25μW

Adjacent channel power

70dB


RECEIVER



IC-F61M
Sensitivity (at 20dB SINAD)

–4dBμ typ. emf

Adjacent Ch. selectivity

73dB typ.

Spurious response

70dB

Intermodulation rejection

70dB typ.

Audio output power
(at 5% dist. with an 8Ω load)

Internal speaker

0.7W typ.

External speaker

0.5W typ.

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810-C, -D and -E.

Ingress Protection Standard

Dust and Water

IP67(Dust-tight and waterproof protection)


All stated specifications are subject to change without notice or obligation.
