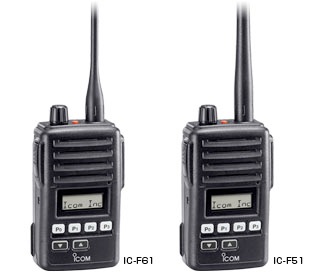

VHF/UHF Handheld Transceiver IC-F51 IC-F61
SUPERIOR WATERPROOF PROTECTION
Firefighters, police, security and public utilities. Each profession has its own unique challenges, but all have one thing in common: the need for reliable communications. The IC-F51 series offers a compact waterproof package that is easy to use. This radio keeps you in contact in nearly any environment.
IP67 dust and waterproof protection
The gasket sealed waterproof housing provides superior dust and waterproof* protection, equivalent to IP67.
* 1m depth for 30 minutes.
Built-in multiple tone signalings
Use the built-in CTCSS, DTCS, 2-Tone and 5-Tone capability to set up your own talk groups or control a repeater.
Wide frequency range coverage
The IC-F51 covers 136-174MHz and the IC-F61 covers 400-470MHz in one version. Wide, middle and narrow channel spacing (25/12.5kHz or 20/12.5kHz) is programmable to each channel.
Compact body
56(W)×97(H)×36.4(D) mm compact body with durable, dependable construction, has been tested to MIL standard specifications. The compact design fits comfortably in your palm, and is easy to carry around.
Li-Ion battery pack
The large capacity 1950mAh (typ.) Lithium-Ion battery pack, BP-227 provides a practical 10 hours* of operating time.
* Typical operation Tx:Rx: Stand-by=5:5:90
ATEX intrinsically safe versions
An intrinsically safe version conforming to the 94/9/EC ATEX Directive, is suitable for use in hazardous areas where flammable gasses, liquids or combustible dusts are used.
Approved classes
The approved rating is
Gas: II2GD Ex ib IIA T3
Dust: II2GD Ex tD A21 T160°C IP67
Special conditions for use: Must be used with BP-227AXD
Approved accessories: Speaker-microphone HM-138
Antenna FA-S59V, FA-S27U, Stubby antenna FA-S62VS, FA-S63VS, FA-S57US
Belt clip MB-98, MB-86, Leather belt hanger MB-96F
Please Note: The optional chargers are not approved as intrinsically safe.
Do not charge the BP-227AXD in an explosive atmosphere.
IC-F51/F61 ATEX Non-Dust (II2G) version users, please use only the BP-227AX battery pack with the IC-F51/F61 ATEX Non-Dust version.
Applicable gas and vapor types
Temp. | T1 | T2 | T3 |
| Class IIA | Acetone, Ethane, | Ethyl alcohol, i-amyl acetate, n-butan, n-butyl alcohol | Benzine, Diesel-fuel, Aviation-fuel, Heating-oils, n-hexane |
Other features
- Rolling type voice scrambler equivalent to the UT-110 is built-in depending on the version
- Inversion type voice scrambler is built-in to all versions
- Optional waterproof speaker-microphone, HM-138
- BIIS 1200 is programmable in all versions
- Flash ROM CPU (depending on version)
and more...
BATTERY PACKS
| BP-227 | (Li-Ion)
| BP-227AXD | (Li-Ion)
| BP-227AX | (Li-Ion) |
| BP-226 | AA(LR6)×5 cells Equivalent to IPX4 water resistance. | | |
| BC-119N | Rapid charger
| BC-121N | Rapid multicharger
| BC-152 | Regular charger
BC-190| Rapid charger |
| AD-100 | (Use with BC-119N or BC-121N) | | |
| BC-145S | 16V/1A
| BC-147S | 12V/200mA
| BC-157S | 12V/6.6A |
| HM-138 | Equivalent to IPX7 waterproof. | | |
| MB-86 | Swivel type
| MB-98 | Alligator type | |
| MB-96N | Swivel type. MB-86 and MB-93 swivel joints supplied.
| MB-96F | Fixed type | |
| OPC-656 | 12–20V DC CABLE | | |
| OPC-966 | PC to transceiver | | |
| FA-S24V | 136-150MHz
| FA-S59V | 150-174MHz
| FA-S27U | 400-470MHz
| FA-S56U | 450-520MHz
| FA-S74U | 490-520MHz | | |
| FA-S62VS | 150-162MHz
| FA-S63VS | 160-174MHz
| FA-S57US | 450-490MHz |
GENERAL
| IC-F51 | IC-F61 | ||||||||||||||||||||||||||||||||||
| Frequency coverage (Varies according to version) | 136–174 MHz | 400–470 MHz | ||||||||||||||||||||||||||||||||||
| Number of channels | 128 ch/8 zones | Channel spacing (Varies according to version) | 12.5/20/25 kHz | Type of emission | 16K0F3E, 14K0F3E, 8K50F3E | Current drain | Tx High | 1.5A | Rx | Stand-by | 85mA | Max. audio | 300mA | Dimensions (projections not included; W×H×D) | 56×97×36.4 mm | Weight (approx.) | 280g (with BP-227) | |||||||||||||||||||
TRANSMITTER
| IC-F51 | IC-F61 | |||||||||
| RF output power | 5W* | 4W* | |||||||||
| Spurious emissions | 0.25μW (≦1GHz) | Frequency stability | ±2.5ppm | Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | - | ||||
* 1W for ATEX version.
RECEIVER
| IC-F51 | IC-F61 | ||||||||||||
| Sensitivity at 20dB SINAD (emf) | –4dBμV (typ.) | Adjacent channel selectivity (W/M/N) | 75/75/65dB (typ.) | Spurious response rejection | 70dB (min.) | Intermodulation rejection | 67dB (typ.) | AF output power (at 5% distortion with an 8Ω load) | 500mW (typ.) | |||||
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-F51 IC-F61 | |
| Number of option slots | - | |
| CTCSS/ DTCS | encoder | Available | decoder | Available |
| 2-Tone | encoder | Available | decoder | Available |
| 5-Tone | encoder | Available | decoder | Available |
| DTMF autodial | Available | |
| DTMF decoder | - | |
| Voice Scrambler | Inversion | Available | Non-rolling | Available* | Rolling | Available* |
| BllS 1200 | Available | |
| MPT 1327 | - | |
| SmarTrunk II/3G | - | |
| LTR™ trunking | - | |
| Man Down function | - | |
| Intrinsically safe | Available* | |
* Depending on version.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage (Altitude) | 500.4 I |
Low Pressure Operation (Altitude) | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4 I |
Low Temperature Operation | 502.4 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Humidity Aggravate | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
All stated specifications are subject to change without notice or obligation.
