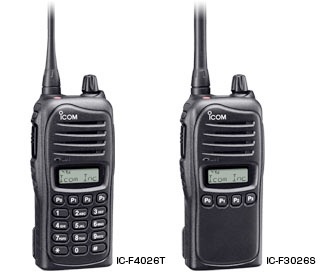

VHF/UHF Handheld Transceiver IC-F3026T/S IC-F4026T/S

Pasted Graphiclogo_std_ip54logo_std_mil

ECONOMICAL STANDARD MODEL
The IC-F3026 series is an economical standard model with durable construction and simple user-friendly operation. Icom's technology provides you with the reliable performance and communication quality you expect. Your next best step from a basic radio.
Button control memory channel
The IC-F3026 series has 128ch memory channels with 8 zones. Memory channel selection can be made easily with up/down buttons laid out below the PTT button. An enlarged LCD provides at a glance convenience, you can visually confirm who you are talking to.
Wide range coverage
The IC-F3026 series covers a wide frequency range with 136-174MHz or 400-470, 450-512 (520) MHz in one version. Wide and narrow* channel bandwidth is programmable to each channel.
*Programmable 25/12.5kHz Ch.
Supports multiple, flexible selective call
CTCSS, DTCS, 2-Tone, 5-Tone encoder/decoder and DTMF encoder are built-in. The optional UT-108R allows DTMF decode with ANI functions.
Long use even in extreme cold
Supplied 2000mAh Li-Ion battery pack, BP-232N has superior electrochemical characteristics even in extremely cold areas (0°C to -30°C). It provides stable output for longer while having less voltage reduction at low temperatures.
MDC 1200 compatible
The following MDC features are available with the built-in MDC signaling.
  • PTT ID (Tx/Rx)
  • Radio check (Rx)
  • Emergency (Tx/Rx)
  • Stun/revive (Rx)
Other features
  • Optional voice scrambler, UT-109R and UT-110R
  • Optional man down unit, UT-124R
  • Surveillance function temporarily turns off the LED backlight and beep sound
  • Large capacity Lithium-Ion battery pack option
  • Dust-protection and splash resistance equivalent to IP54
  • Compact and lightweight body

BATTERY PACKS
BP-230_N
(Li-Ion)
7.4V/950mAh (min.),
980mAh (typ.)
BP-230N
BP-232_N
(Li-Ion)
7.4V/1900mAh (min.),
2000mAh (typ.)
BP-232N


BATTERY CASE
BP-240
AAA(LR03)×6 cells
BP-240



CHARGERS
BC-119N
Rapid charger
(AD-106 is required)
BC-119N
BC-121N
Rapid multicharger
(AD-106 is required)
BC-121N
BC-160
Rapid charger
BC-160
BC-171
Regular charger
BC-171
CHARGER ADAPTER
AD-106
(Use with BC-119N/BC-121N)
AD-106



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-160 or BC-119N)
BC-145S
BC-147S
12V/200mA
(Use with BC-171)


BC-147S
BC-157S
12V/6.6A
(Use with BC-121N)
BC-157S

SPEAKER-MICROPHONES
HM-158L
HM-158L
HM-159L_SC
HM-159L
HM-153L
HM-153L
HM-166L
HM-166L
HEADSETS
HS-94
Earhook type with boom microphone
(Use with VS-1L)
HS-94
HS-95
Behind-the-head type
(Use with VS-1L)
HS-95
HS-97
Throat microphone type
(Use with VS-1L)
HS-97

VOX/PTT CASE
VS-1L_SC
VS-1L



EARPHONE
SP-13
SP-13



BELT CLIPS
MB-93
Swivel type
MB-93
MB-94
Alligator type
MB-94


LEATHER BELT HANGERS
MB-96N_2
Swivel type.
MB-96N
MB-96F
Fixed type
MB-96F


DC POWER CABLES
OPC-656
12–20V DC CABLE
(Use with BC-121N)
OPC-656



ANTENNA
fa-sc25v
136-150MHz
FA-SC25V
fa-SC55v
150-174MHz
FA-SC55V
fa-sc25u
400-430MHz
FA-SC25U
fa-sc57u
430-470MHz
FA-SC57U
CUT ANTENNAS
FA-SC61VC
136-174MHz
FA-SC61VC
FA-SC61US
380-520MHz
FA-SC61US


STUBBY ANTENNAS
FA-SC56VS
150-162MHz
FA-SC56VS
FA-SC57VS
160-174MHz
FA-SC57VS


INTERNAL UNITS
UT-108_R
DTMF Decoder
UT-108R
UT-109_R
Voice scrambler unit
(Non-rolling type)
UT-109R
UT-110_R
Voice scrambler unit
(Rolling type)
UT-110R
UT-124_R
Man down unit
UT-124R

General



IC-F3026T/S
IC-F4026T/S
Frequency coverage
(Varies according to version)
136–174 MHz
400–470 MHz
Number of channels
128 ch/8 zones
Channel spacing
(Varies according to version)
12.5/25kHz
12.5/25 kHz
Type of emission
16K0F3E, 11K0F3E
Current drain
Tx High
1.5A
Rx
Stand-by
75mA
Max. audio
250mA
Dimensions
(projections not included; W×H×D)
53×120×36.9 mm
2
332× 4 23/32×1 716 in
Weight (approx.)
300g; 10.6oz (with BP-232N)

Transmitter



IC-F3026T/S
IC-F4026T/S
RF output power
5W
4W
Spurious emissions
80dB (typ.)
Frequency stability
±2.5ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
46dB typ. (W)
40dB typ. (N)

Receiver



IC-F3026T/S
IC-F4026T/S
Sensitivity at 12dB SINAD
0.25μV (typ.)
Adjacent channel selectivity (W/N)
75/65 dB (typ.)
Spurious response rejection
70dB (min.)
Intermodulation rejection

75dB (typ.)

74dB(typ.)

AF output power
(at 5% distortion with an 8Ω load)

500mW (typ.)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F3026T/S, IC-F4026T/S
Number of option slots
1
CTCSS/ DTCS
encoder
Available
decoder
Available
2-Tone
encoder
Available
decoder
Available
5-Tone
encoder
Available
decoder
Available
DTMF autodial
Available
DTMF decoder
UT-108R
Voice Scrambler
Inversion
-
Non-rolling
UT-109R
Rolling
UT-110R
APCO P25 digital
-
AES encryption
-
DES encryption
-
6.25kHz digital
-
MPT 1327
-
MDC 1200
Available (Limited functions)
LTR™ trunking
-
PassPort
-
Man Down function
UT-124R
Intrinsically safe
-

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

All stated specifications are subject to change without notice or obligation.
