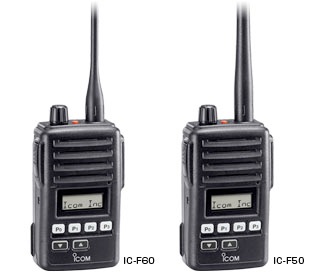

VHF/UHF Handheld Transceiver IC-F50 IC-F60

Pasted Graphiclogo_std_millogo_std_ipx7logo_std_intrinsically

SUPERIOR WATERPROOF PROTECTION
Firefighters, police, security and public utilities. Each profession has its own unique challenges, but all have one thing in common: the need for reliable communications. The IC-F50 series offers a compact waterproof package that is easy to use. This radio keeps you in contact in nearly any environment.
IPX7 waterproof protection
The gasket sealed waterproof housing provides superior waterproof protection, equivalent to IPX7*.
* 1m depth for 30 minutes.
Built-in multiple tone signalings
Use the built-in CTCSS, DTCS, 2-Tone and 5-Tone capability to set up your own talk groups or control a repeater.
Wide frequency range coverage
The IC-F50 covers 136-174MHz and the IC-F60 covers 400-470MHz or 450-520 (512) MHz, depending on version. Wide, and narrow channel spacing (25/12.5kHz) is programmable to each channel.
Compact body
56(W)×97(H)×36.4(D) mm compact body with durable, dependable construction, has been tested to military standard (MIL STD) specifications. The compact design fits comfortably in your palm, and is easy to carry around.
Li-Ion battery pack
The large capacity 1700mAh Lithium-Ion battery pack, BP-227, provides a practical 10 hours* of operating time.
* Typical operation Tx:Rx: Stand-by=5:5:90
FM intrinsically safe versions
logo_std_fm_approved
Versions of the IC-F50/F60 are available that conform to the intrinsically safe rating of the FM Global. Intrinsically safe Class Ι, ΙΙ and ΙΙΙ, Division 1, Groups C, D, E, F, and G ; Nonincendive Class Ι, Division 2, Groups A, B, C and D hazardous locations when used with Icom BP-227FM battery pack “Max. Temp. T3C at 40°C”Approved accessories: Speaker-microphone, HM-138.
Other features
  • Built-in UT-110 equivalent voice scrambler, depending on the version
  • Inversion type voice scrambler is built-in to all versions
  • Optional waterproof speaker-microphone, HM-138
  • MDC 1200 system is programmable depending on version
  • Flash CPU versions for customization to specific needs

BATTERY PACK
BP-227_AX_FM
(Li-Ion)
7.4V/1850mAh (min.),
1950mAh (typ.)
BP-227



BATTERY CASE
BP-226
AA(LR6)×5 cells Equivalent to IPX4 water resistance.
BP-226



CHARGERS
BC-119N
Rapid charger
(AD-100 is required)
BC-119N
BC-121N
Rapid multicharger
(AD-100 is required)
BC-121N
BC-152
Regular charger
BC-152
BC-190 BC-190
Rapid charger
CHARGER ADAPTER
AD-100
(Use with BC-119N/BC-121N)
AD-100



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-119N or BC-190)


BC-145S
BC-147S
12V/200mA
(Use with BC-152)
BC-147S
BC-157S
12V/6.6A
(Use with BC-121N)
BC-157S

SPEAKER-MICROPHONES
HM-138
Equivalent to IPX7 waterproof.
HM-138
HM-168
IPX7
HM-168
HM-169
IP57
HM-169
HM-170GP
With GPS receiver IP57
HM-170GP
BELT CLIPS
MB-86
Swivel type
MB-86
MB-98
Alligator type
MB-98


LEATHER BELT HANGERS
MB-96N_2
Swivel type. MB-86 and MB-93 swivel joints supplied.
MB-96N
MB-96F
Fixed type
MB-96F


DC POWER CABLE
OPC-656
12–20V DC CABLE
(Use with BC-121N)
OPC-656



ANTENNAS
fa-s24v
136-150MHz
FA-S24V
fa-S59v
150-174MHz
FA-S59V
fa-s27u
400-470MHz
FA-S27U
fa-s56u
450-520MHz
FA-S56U
fa-s74u
490-520MHz
FA-S74U



STUBBY ANTENNAS
FA-S62VS
150-162MHz
FA-S62VS
FA-S63VS
160-174MHz
FA-S63VS
FA-S57US
450-490MHz
FA-S57US


GENERAL



IC-F50
IC-F60
Frequency coverage
(Varies according to version)
136–174 MHz
400–470 MHz
450–512 MHz (USA)
450–520 MHz (GEN)
Number of channels
128 ch/8 zones
Channel spacing
(Varies according to version)
12.5/25, 15/30 kHz
12.5/25 kHz
Type of emission
16K0F3E, 11K0F3E
Current drain
Tx High
1.5A
Rx
Stand-by
85mA
Max. audio
300mA
Dimensions
(projections not included; W×H×D)
56×97×36.4 mm
2
7/32× 3 13/16×1 7/16 in
Weight (approx.)
280g; 9.9oz (with BP-227)

TRANSMITTER



IC-F50
IC-F60
RF output power
5W
4W
Spurious emissions
70dB (min.)
Frequency stability
±2.5ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
46dB typ. (W)
40dB typ. (N)

RECEIVER



IC-F50
IC-F60
Sensitivity at 12dB SINAD
0.25μV (typ.)
Adjacent channel selectivity (W/N)
70/65dB (typ.)
Spurious response rejection
70dB (min.)
Intermodulation rejection
74dB (typ.)
AF output power
(at 5% distortion with an 8Ω load)
500mW (typ.)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F50 IC-F60
Number of option slots
-
CTCSS/ DTCS
encoder
Available
decoder
Available
2-Tone
encoder
Available
decoder
Available
5-Tone
encoder
Available
decoder
Available
DTMF autodial
Available
DTMF decoder
-
Voice Scrambler
Inversion
Available
Non-rolling
Available*
Rolling
Available*
APCO P25 digital
-
AES encryption
-
DES encryption
-
6.25kHz digital
-
MPT 1327
-
MDC 1200
Available*
LTR™ trunking
-
PassPort
-
Man Down function
-
Intrinsically safe
Available*

* Depending on version.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

All stated specifications are subject to change without notice or obligation.
