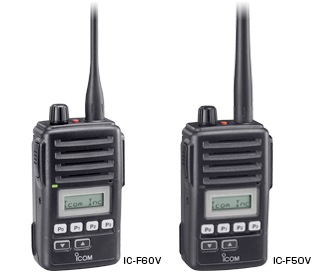

VHF/UHF Handheld Transceiver IC-F50V IC-F60V

Pasted Graphiclogo_std_millogo_std_ip67


NEVER MISS IMPORTANT CALLS
The IC-F50V series offers loud 700mW (typ.) audio, vibration alert and voice recorder functions that let you catch every call. Furthermore, the IC-F50V offers a compact dust and waterproof package that provides reliable communications, and is easy to use in nearly any environment.
Vibration alert function
When a pre-programmed 2-tone/5-tone code or call from a specific user (MDC mode only) is received, the radio vibrates powerfully enough to be felt through heavy clothing.
8 minute voice recorder
When a pre-programmed 2-tone/5-tone code or a SelCall (MDC mode only) is received, the voice recorder automatically starts recording the incoming message. You will not miss an important call even when you are temporarily away from the radio.
700mW (typical) audio output with internal speaker
The IC-F50V series delivers a loud 700mW audio output with the built-in BTL amp. The built-in audio compander provides clear, low noise communications.
IP67, dust-tight and waterproof protection
The IC-F50V series can withstand submersion in 1m depth of water for up to 30 minutes and has dust-tight construction that prevents the ingress of dust.
Other features
  • 56(W)×97(H)×36.4(D) mm compact body
  • MDC 1200 system programmable
  • Inversion type voice scrambler is built-in
  • Optional waterproof speaker-microphone, HM-168
  • Large capacity Lithium-Ion battery pack, BP-227
  • Built-in CTCSS, DTCS, 2-Tone and 5-Tone capability
  • Mode-dependent scan
  • Nuisance delete function
  • BTL only version (no vibration alert and no voice recorder) and BTL/Vibration alert version (no voice recorder) available
*Not available in some countries. (Not available in the U.S.)

BATTERY PACK
BP-227_AX_FM
(Li-Ion)
7.4V/1850mAh (min.),
1950mAh (typ.)
BP-227



BATTERY CASE
BP-226
AA(LR6)×5 cells Equivalent to IPX4 water resistance.
BP-226



CHARGERS
BC-119N
Rapid charger
(AD-100 is required)
BC-119N
BC-121N
Rapid multicharger
(AD-100 is required)
BC-121N
BC-152
Regular charger
BC-152
BC-190 BC-190
Rapid charger
CHARGER ADAPTER
AD-100
(Use with BC-119N/BC-121N)
AD-100



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-119N or BC-190)


BC-145S
BC-147S
12V/200mA
(Use with BC-152)
BC-147S
BC-157S
12V/6.6A
(Use with BC-121N)
BC-157S

SPEAKER-MICROPHONES
HM-138
Equivalent to IPX7 waterproof.
HM-138
HM-168
IPX7
HM-168
HM-169
IP57
HM-169
HM-170GP
With GPS receiver IP57
HM-170GP
HEADSETS
HS-94
(Use with VS-1SC)
HS-94*
HS-95
(Use with VS-1SC)
HS-95*
HS-97
(Use with VS-1SC)
HS-97*

VOX/PTT CASE
VS-1L_SC
VS-1SC



BELT CLIPS
MB-86
Swivel type
MB-86
MB-98
Alligator type
MB-98


LEATHER BELT HANGERS
MB-96N_2
Swivel type. MB-86 and MB-93 swivel joints supplied.
MB-96N
MB-96F
Fixed type
MB-96F


DC POWER CABLE
OPC-656
12–20V DC CABLE
(Use with BC-121N)
OPC-656



ANTENNAS
fa-s24v
136-150MHz
FA-S24V
fa-S59v
150-174MHz
FA-S59V
fa-s27u
400-470MHz
FA-S27U
fa-s56u
450-520MHz
FA-S56U
fa-s74u
490-520MHz
FA-S74U



STUBBY ANTENNAS
FA-S62VS
150-162MHz
FA-S62VS
FA-S63VS
160-174MHz
FA-S63VS
FA-S57US
450-490MHz
FA-S57US



GENERAL



IC-F50V
IC-F60V
Frequency coverage
(Varies according to version)
136–174 MHz
400–470 MHz
450–512 MHz (USA)
450–520 MHz (GEN)
Number of channels
128 ch/8 zones
Channel spacing
(Varies according to version)
12.5/25, 15/30 kHz
12.5/25 kHz
Type of emission
16K0F3E, 11K0F3E
Current drain
Tx High
1.8A
Rx
Stand-by
85mA
Max. audio
500mA
Dimensions
(projections not included; W×H×D)
56×97×36.4 mm
2
7/32× 3 13/16×1 7/16 in
Weight (approx.)
280/284g; 9.9/10.0oz (with BP-227, V/U)

TRANSMITTER



IC-F50V
IC-F60V
RF output power
5W
4W
Spurious emissions
70dB (min.)
Frequency stability
±2.5ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
46dB typ. (W)
40dB typ. (N)

RECEIVER



IC-F50V
IC-F60V
Sensitivity at 12dB SINAD

0.25μV (typ.)

Adjacent channel selectivity (W/N)

75/65dB (typ.)

Spurious response rejection

70dB (min.)

Intermodulation rejection

74dB (typ.)

AF output power
(at 5% distortion with an 8Ω load)

700mW (typ., Internal speaker)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F50V IC-F60V
Number of option slots
-
CTCSS/ DTCS
encoder
Available
decoder
Available
2-Tone
encoder
Available
decoder
Available
5-Tone
encoder
Available
decoder
Available
DTMF autodial
Available
DTMF decoder
-
Voice Scrambler
Inversion
Available
Non-rolling
-
Rolling
-
´╗┐APCO P25 digital
-
AES encryption
-
DES encryption
-
FIPS 140-2 Level 1

IDAS digital
-
MPT 1327
-
MDC 1200
Available
LTR™ trunking
-
PassPort
-
Man Down function
-
Intrinsically safe
-
Vibration alert
Available*
Voice recorder
Available*

* Depending on version.
Inversion type voice scrambler is not compatible with UT-109/UT-110 voice scrambler.

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

All stated specifications are subject to change without notice or obligation.
